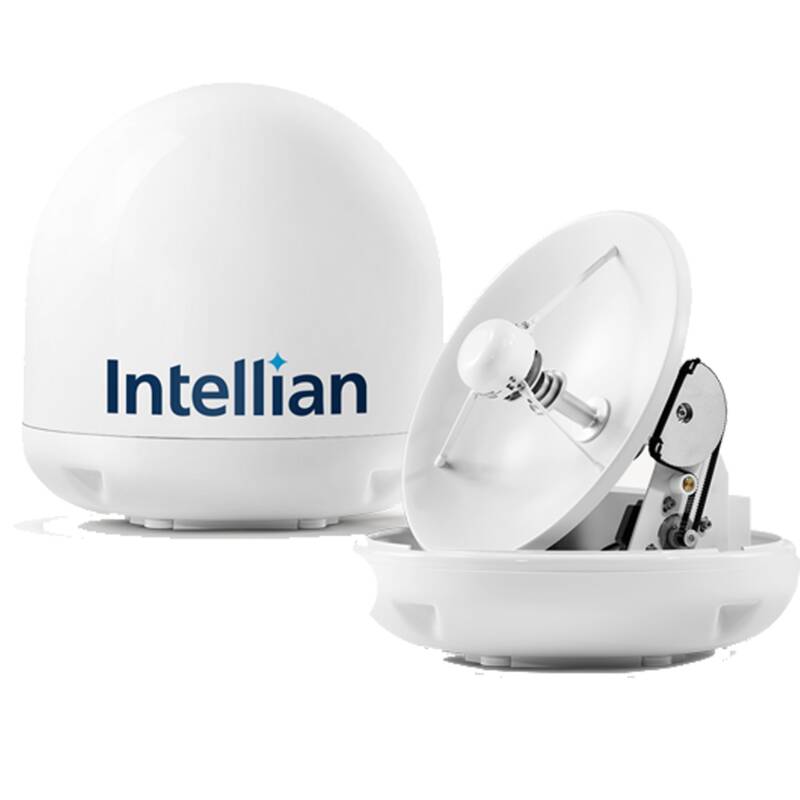

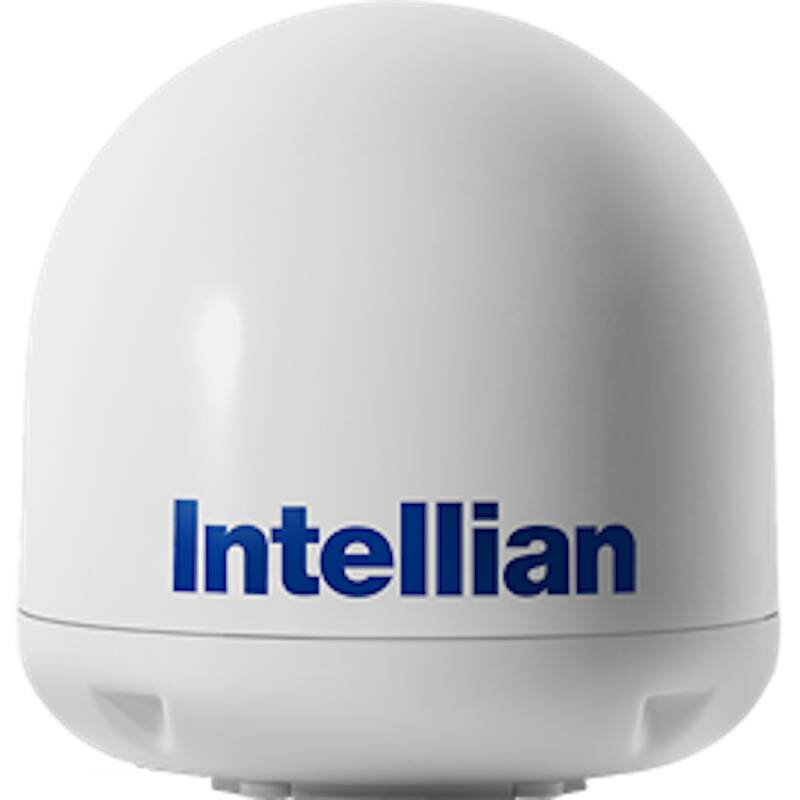

Intellian i3 15" TV Antenna System w/ Control Unit and 49' RG6 - White • B4-309SS
Product Details
i3 15" White TV Antenna System with Control Unit and 49' RG6 Cable for Americas (B4-309SS) by Intellian. With Control Unit. The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25'). The i3's high signal gain makes it the best performing 37cm (15in) antenna system available today.
- Radome Height: 44 cm (17.3 inch)
- Radome Diameter: 43 cm (16.9 inch)
- Reflector Diameter: 37 cm (14.6 inch)
- Weight: 9 kg (19.8 lbs)
- Operating Temp. Range: -25°C ~ 55°C (-13°F ~ 131°F)
- Storage Temp. Range: -40°C ~ 80°C (-40°F ~ 176°F)
- Water Ingress: IPX6
- Approvals: CE / FCC
- Ku-band: 10.7 ~ 12.75 GHz
- Polarization: RHCP / LHCP, Vertical / Horizontal
- Minimum EIRP: 50 dBW
- Azimuth Range: 680°
- Elevation Range: 10° ~ 80°
- Ship's Motion: Roll ±25°, Pitch ±15°
- Roll & Pitch Response Rate: 60° / sec
- Turn Rate: 60° / sec
- RF Output: Dual Output
- Dimensions (W x D x H): 17.8cm x 21.7cm x 5.4 cm (7.0 inch x 8.5 inch x 2.1 inch)
- Display: 2 line 20 character VFD module
- Power Input: 9.0~30.0VDC (Typ. 30W, max 50W)
- Power Output: 12VDC
- GPS Interface: Built-In (NMEA0183 GPS)
- WiFi: Yes
- Automatic Satellite Search and Identification Function
- 2-axis Stabilization provides high speed tracking
- 37 cm (15in) diameter parabolic antenna for receiving the Ku-band satellite signals
- Circular or linear polarization depending on region and LNB selected
- Built-in HD module for Ku-band HD TV reception
- iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
- Intuitive controls with a digital information display on the ACU
- Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
- DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module
- Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
- Using the MIM a master receiver can be selected to control the target satellite
- In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home
- The i3 includes a built-in GPS inside the Antenna Unit for faster signal acquisition
- The ship's GPS can also be connected through the NMEA0183 port on the rear panel of the ACU
- 43cm (16.9 inch) antenna radome diameter
- Antenna weighs less than 9 kg (19.8 pounds)
- Limited 3 Year Parts Warranty
