Intellian i5 24.7" Dia. White TV Antenna System with Control Unit and 49' RG6 Cable for All Americas • B4-509AA

Intellian i5 is a digital satellite antenna system designed specifically for all types of vessels (anchored or transit) to automatically identify, track and capture satellite signals from the Digital Video Broadcasting (DVB: the international standard for digital TV transmissions) compatible satellites. In details, Intellian i5 has Wide Range Search (WRS) algorithm, which minimizes the search time during initialization, and Dynamic Beam Tilting (DBT) technology, which dynamically shapes the antenna beam to utilize stabilization. While tracking the target satellite, DBT technology uses a high-performance, constantly adjusting sub-reflector which allows the antenna to remain relatively still, eliminating the constant whine of stepper motors while staying locked on to the satellites. The i5 has a built-in GPS system which enhances the speed of satellite signals acquisitions. In addition, the i5P provides the embedded auto skew angle control system to maintain the optimal signal strength and increase the quality of satellite receptions in weak satellite single coverage area.

---

• Compatibility: Ku-Band Satellite TV Service
• Tracking Type: Signal Tracking In-Motion And While Stationary
• Display Type: VFD
• HD Compatible: Yes
• Waterproof: IPX6 Waterproof

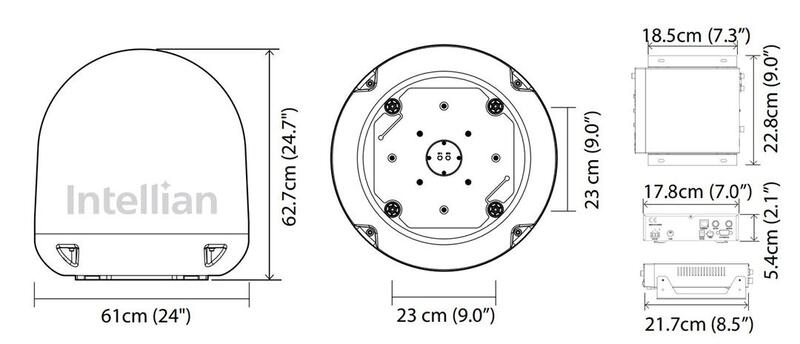

• Dimensions: 24 Inch Diameter x 24.7 Inch Height
• Frequency: 10.7 To 12.75 Giga Hertz
• Operating Temperature: -13 Degree Fahrenheit To 131 Degree Fahrenheit
• Voltage: 9 To 30 Volt DC
• Includes: With Built-In GPS/ Antenna Control Unit/ 21 Inch Antenna Reflector/ All Americas LNB

---

• Just The Right Fit The I5 Is The World's First 21 Inch Satellite TV Designed For Cruising Vessels Who Require Exceptional TV Service Throughout The US, Bahamas, Caribbean, And Mexico
• Antenna Is Purpose Built To Provide Just The Right Fit For Vessels 40 To 60 Feet
• Quicker And Quieter Intellian's Patented IQ2 Technology Delivers The Best User Experience Available On The Market Today
• An Advanced Signal Searching Algorithm Acquires The Satellite 4 To 5 Times Faster Than Conventional Method
• Intelligent, Real Time Beam Analysis Holds The Signal And Reduces Overall Motor Movement By Up To 80 Percent, Eliminating Annoying Background Noise While At Anchor Or In The Slip
• Wireless Control Via Aptus Built-In Wi-Fi Enables The ACU To Be Wirelessly Managed And Controlled Via Aptus PC Or Mobile, Intellian's Graphical Antenna Control Software
• Aptus User-Friendly Displays Vital Performance Metrics In A Graphical Format That Simplifies Operation
• Auto Diagnostic Function Designed To Help Solve Problems Quickly Should They Arise
• Simple And Easy Installation With A Single Cable To Connect The Antenna And The ACU, The I5 System Is Quick And Easy To Install
• Limited 3 Year Parts And 2 Year Labour Warranty
