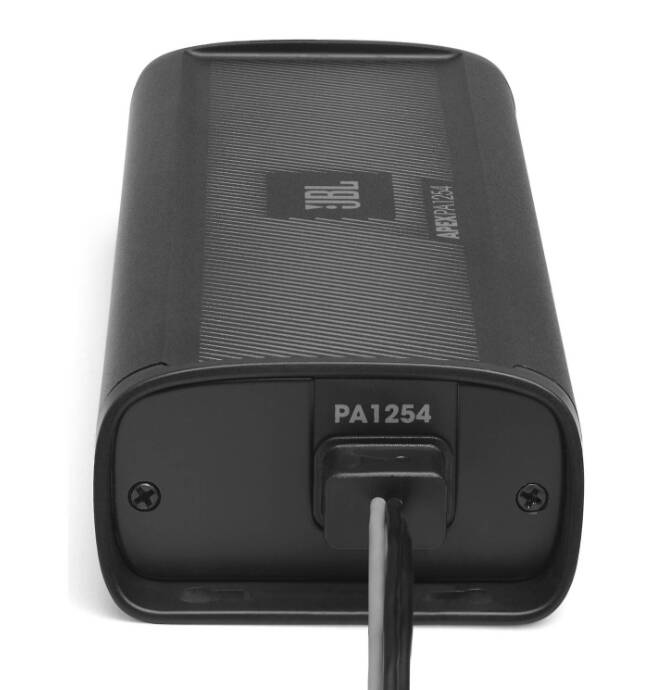

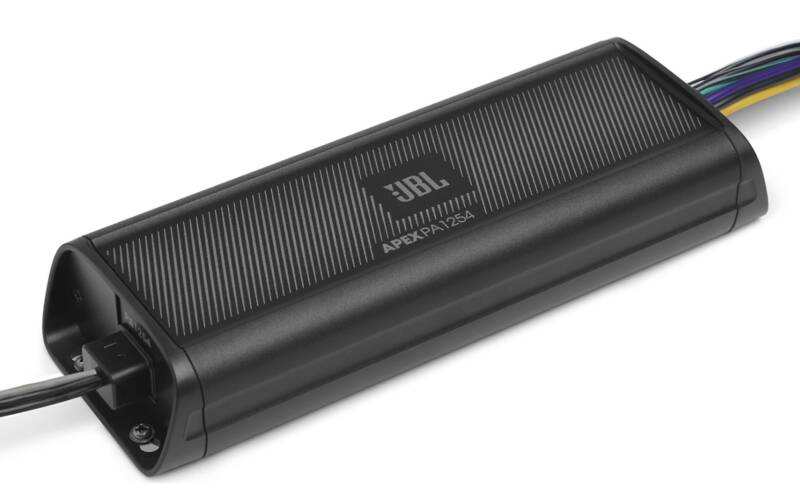

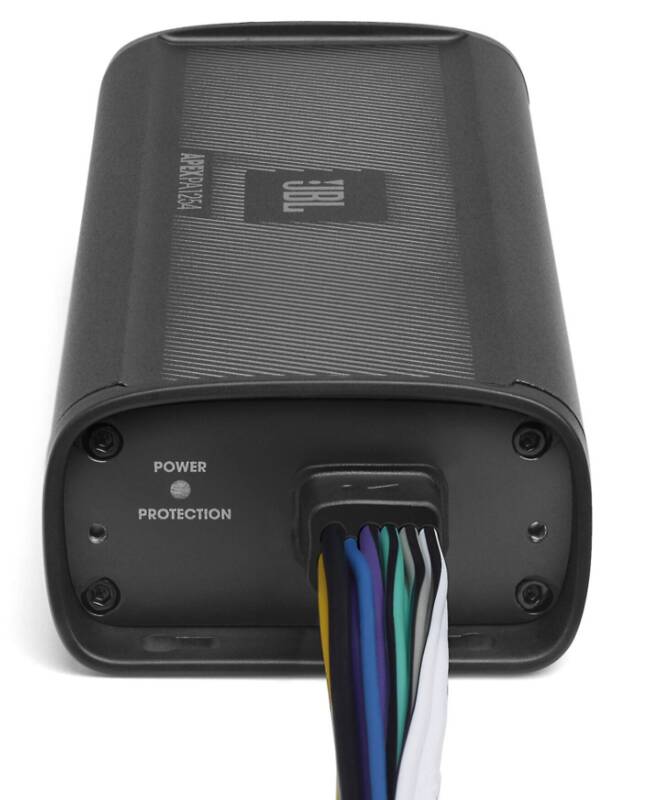

JBL Compact 4-Channel Marine Amplifier — 75 Watts RMS x 4 • JBL APEX PA1254

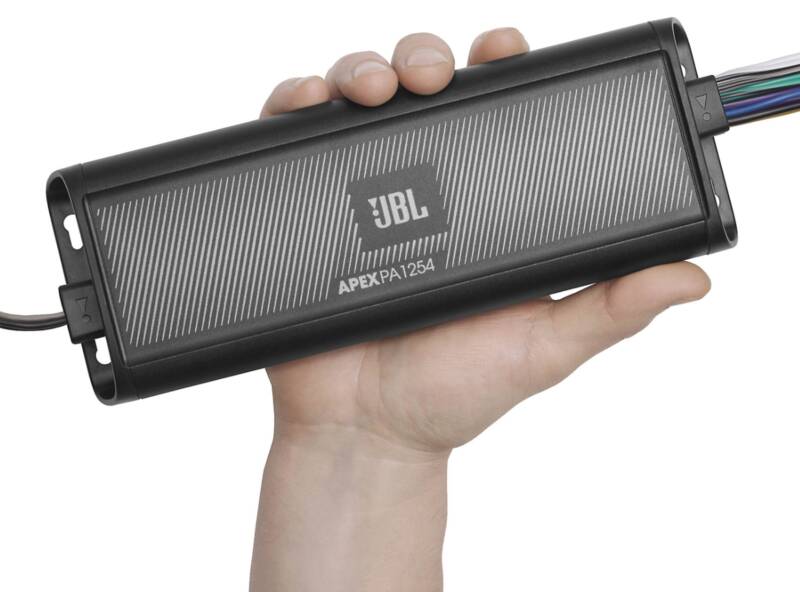

You won't believe how much sound comes out of this tiny amp. JBL's Apex PA1254 puts out four channels of 75 watts RMS from a chassis that's smaller than a shoe. It'll fit in almost any little nook or cranny on your UTV, motorcycle, or boat, bringing the joy of music to your outdoor fun. You can also use this amp in 3-channel mode to power a couple of speakers with 75 watts each plus a subwoofer with 250 watts RMS. Selectable high- and low-pass filters let you tune the signals to match your speakers and subs. The tough aluminum chassis and conformal-coated circuit boards protect the amp against the weather. The controls are protected behind an aluminum panel.

• compact 4-channel amplifier
  • 75 watts RMS x 4 at 4 ohms
  • 125 watts RMS x 4 at 2 ohms
  • 250 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
• selectable high-pass filter (60, 80, 120 Hz at 12 dB/octave) on front channels
• selectable high- or low-pass filter (60, 80, 120 Hz at 12 dB/octave) on rear channels
• Class D amp technology (frequency response: 20-20,000 Hz)
• weather-resistant aluminum chassis
• preamp and speaker-level inputs
• • wire-to-RCA adapters for speaker-level inputs included
• wiring and hardware not included with amplifier
  • 10-gauge power and ground leads recommended
• fuse rating: 40A
• dimensions: 10-1/8"W x 1-3/4"H x 3-5/16"D
• warranty: 1 year

• 4-Channel amplifier
• 4 Speaker to RCA adapters
• Two 40-amp ATO fuses (1 installed/1 spare)
• Four 5/8" Screws
• Four 5" Zip ties
• Owner's manual (English/ French/ Spanish/ Portuguese/ Chinese/ Japanese/ Korean)
• 2 Window stickers
