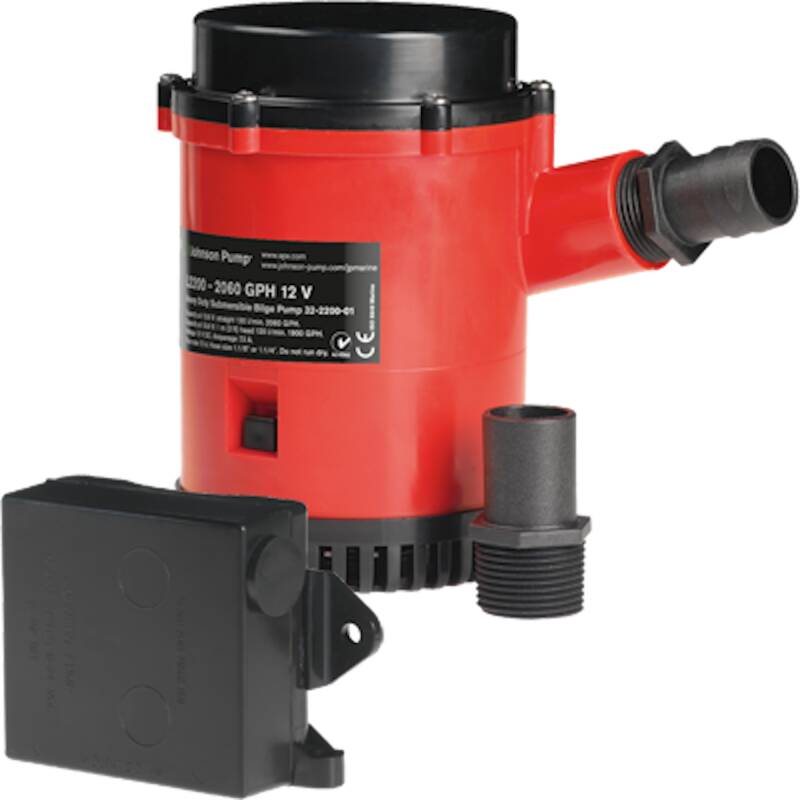

Johnson Pump 2200 GPH Ultima Combo Auto Bilge Pump - 12V • 02274-001

12 V 2196 GPH Electric Heavy Duty Automatic Impeller Submersible Bilge Pump with Ultima Switch (02274-001) by Johnson Pump. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.

• Amperage: 7.5A
• Capacity 1.0m head (13.6V/27V): 120L/min - 1900 GPH
• Capacity straight (13.6V/27.2V): 2060 GPH (130 l/min)
• Connection: 1-1/8" & 1-1/4"
• Fuse: 12 A
• Max Height: 7" (177 mm)
• Max O: 4.25" (108 mm)
• Shaft: SS2343
• Voltage: 12 V
• Weight: 2.7 kg / 6 lb
• Wire length: 6' (1.8 m)
• Wire Size: 16 GA (1.3 mm2)
• Heavy-Duty, high-performance pump
• Exceeds the tough demands of commercial and recreational duty
• Liquid Cooled
• 16-Pole motor with double ball bearings
• Lip Seal design construction
• Prewired with automatic float switch(with Manual Over-ride Operation)
• Optional and removable check valve included
• 1-1/8" and 1-1/4" hose adapters included
