Keeper KAC1500,110/120V AC Electric Winch, 1500lb Single Line Pull • KAC15042

Keeper KAC1500 Electric Winch is the perfect addition to any garage or workshop, packed with all the features needed for an easy and safe operation. Built for 1,500 lbs. single layer line pull. The electric winch is equipped with an 8 ft. power cord compatible with 110/120V AC 3-prong outlet rated for 15 amps or higher. The 1.2 HP 120V AC motor draws 9.2 amps at full load with quick change brush caps. Installation is easy with the supplied mounting plate, cable tension plate, and mount for the 4-way roller fairlead. Comes with 42 ft. of 3/16 in. galvanized wire rope with a hook and safety latch. To operate, use the handheld pendant which includes power in/out, resettable emergency shut-off switch, thermal motor reset button, and 12 ft. cord for free movement while operating. Additional Features - The electric winch has a 3-stage planetary gear box, 262:1 gear ratio, and all metal gear train. Full-load holding mechanical brake for safety. ETL-certified to meet UL and CSA standards.

---

• Quality and Durability - Keeper KAC1500 Electric Winch is the perfect addition to any garage or workshop, packed with all the features needed for an easy and safe operation. Built for 1,500 lbs. single layer line pull.
• Power Usage - The electric winch is equipped with an 8 ft. power cord compatible with 110/120V AC 3-prong outlet rated for 15 amps or higher. The 1.2 HP 120V AC motor draws 9.2 amps at full load with quick change brush caps.
• Installation - Installation is easy with the supplied mounting plate, cable tension plate, and mount for the 4-way roller fairlead. Comes with 42 ft. of 3/16 in. galvanized wire rope with a hook and safety latch.

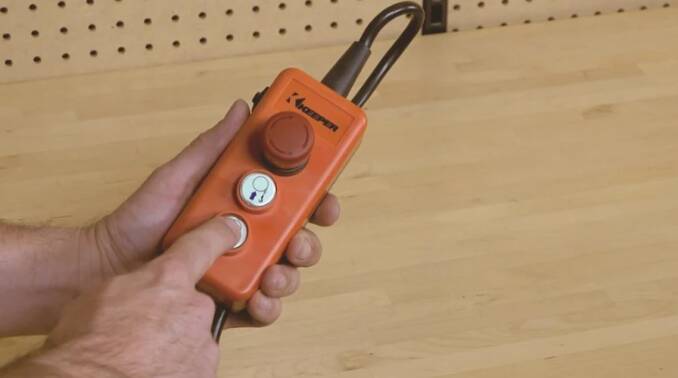

• Operation - To operate, use the handheld pendant which includes power in/out, resettable emergency shut-off switch, thermal motor reset button, and 12 ft. cord for free movement while operating.
• Additional Features - The electric winch has a 3-stage planetary gear box, 262:1 gear ratio, and all metal gear train. Full-load holding mechanical brake for safety. ETL-certified to meet UL and CSA standards.

---

• Winch Rating: 1500 Pound
• Recommended Use: Industrial
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 120 Volt
• Free Spooling: Yes
• Line Length (FT): 42 Feet
• Line Material: Steel
• Remote Type: Wired
• Universality: Fully Universal
• Mounting Pattern Size: 2-1/2 Inch Length X 3 Inch Width
• Brake Type: Automatic Full Load
• Max Amp Draw: 9 Amp Draw At 1500 Pound
• Gear Reduction Ratio: 262:1
• Includes Mounting Hardware: Yes
• Thermal Shutoff: Yes
• Color: Gray
• Motor Horsepower: 1 Horsepower
• Fairlead Type: Roller
• Line Speed At Max Pull: 4.6 Feet Per Minute At 1500 Pound
• Electrical Control Type: Solenoid
• Drive Gear Type: Planetary
• Line Diameter (IN): 3/16 Inch
• Mounting Hole Quantity: 4
• Drum Material: Steel
