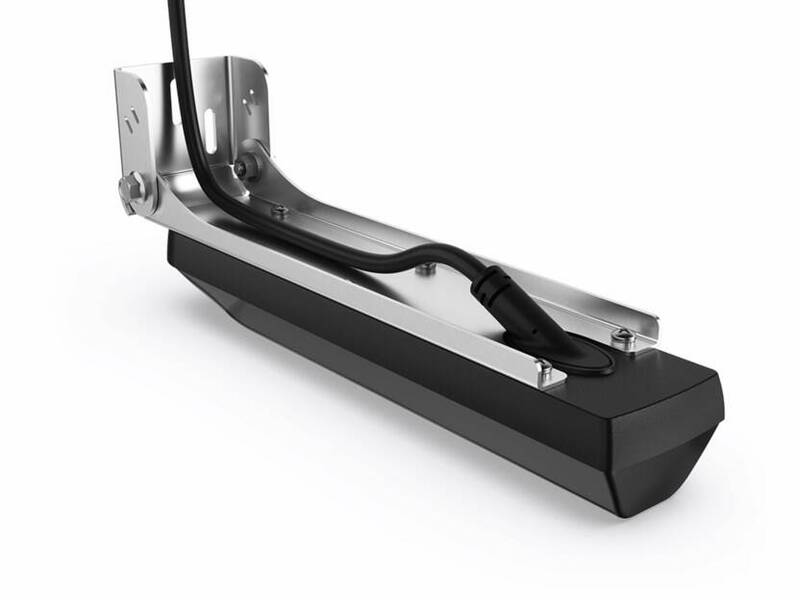

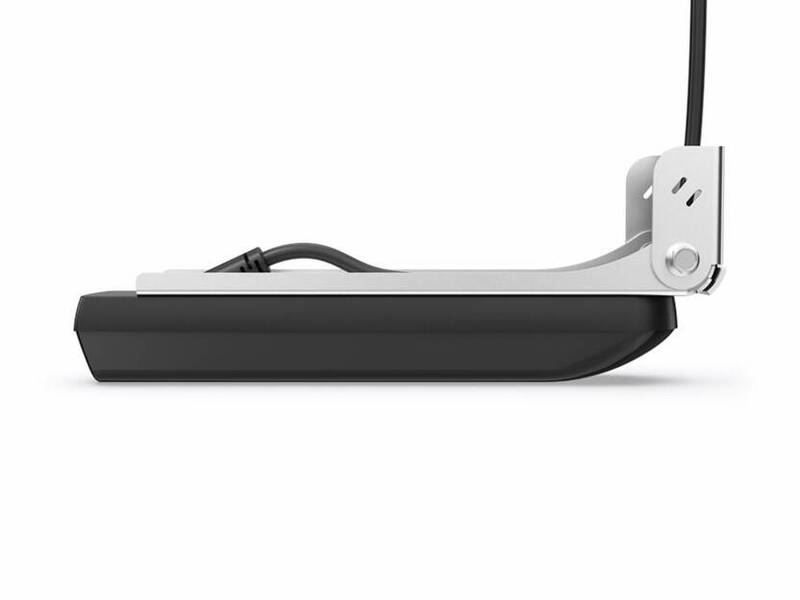

Lowrance Active Imaging HD 3-in-1 FishReveal Transducer • 000-16060-001

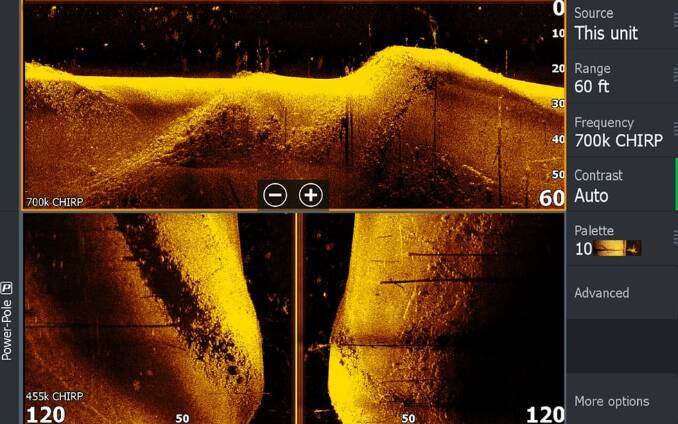

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance(R) CHIRP sonar, high-frequency (up to 1.2 Megahertz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easy. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more. DownScan Imaging™ makes it easier to identify how fish are relating to structure, providing photo-like images of rocks, trees, bottom composition and other underwater structure directly beneath the boat. Perfect for searching large areas for fish-holding structure, allowing you to cover more water in a shorter period of time, and view areas too shallow for your boat – like next to the shore or bank. See fish, structure and the bottom with greater clarity with Lowrance CHIRP, which delivers the best views of individual fish targets. The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance(R) CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.

---

• Mounting Location: Transom Mount
• Frequency Range: 83/ 200 kHz Medium/ High CHIRP Sonar Frequency
• High Definition SideScan And DownScan Imaging Deliver The Clearest Images Of Fish And Structure
• Lowrance CHIRP With Superb Clarity And Target Separation
• FishReveal™ With New SideScan View As Well DownScan
• Supports Medium And High CHIRP
• Smart Transducer Design Boosts Signal Clarity
• Compatible Directly With Lowrance HDS PRO Or With A S3100 Module With HDS LIVE, HDS Carbon And Elite FS
• Limited 1 Year Warranty
