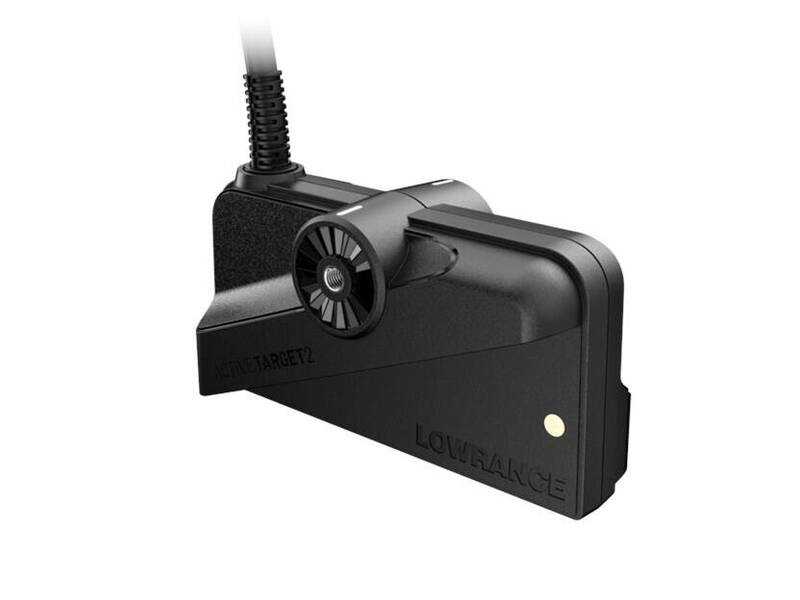

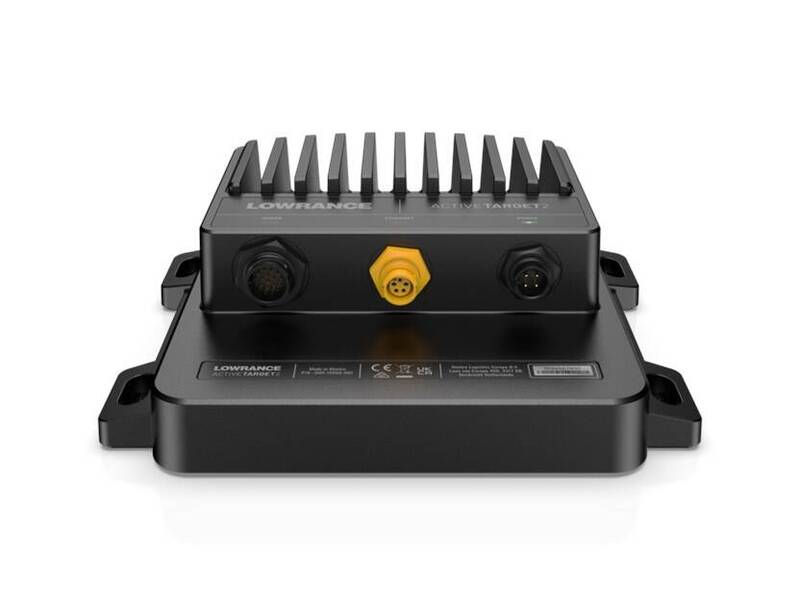

Lowrance ActiveTarget 2 (Module + Transducer + Mounts) • 000-15959-001

See the clearest and most-detailed live action images below and around your boat with ActiveTarget 2. This new high-level clarity allows you to track fish movement, watching how they interact with the structure around them and, more importantly, how they respond to your lure. Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live-action views of fish and structure, even in rough conditions. Delivering a smoother, more consistent image across the entire range, ActiveTarget 2 shows you exactly what’s going on under the surface as a live action feed. Enhancements to the beam broadcast from the ActiveTarget2 system make it possible show more detailed images further from the boat than ever before. Track fish and lure presentation with high-resolution views in front, below and around your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat.

---

• Overall Dimensions: 8.63 Inch Width X 7.56 Inch Height X 2.86 Inch Depth
• Mount Type: Flush Mount
• With Transducer: Yes
• Used To: Shows High-Resolution Images Of Fish Movements And Tracking Them As They Swim In And Around Cover
• Waterproof: IPX7 Rating Waterproof
• Sonar Compatibility: ActiveTarget 2 Live Sonar
• Power Supply Voltage: 10.8 To 31.2 Volt
• Ampere Rating: 1.5 Amp
• Weight: 4.12 Pound Module/ 2.67 Pound Transducer
• Fuse Rating: 3 Amp
• Operating Temperature Range: 5 To 131 Degree Fahrenheit

---

• Reveal What’s Happening Underwater In Real Time
• Get The Clearest Live Views Of Fish And Structure

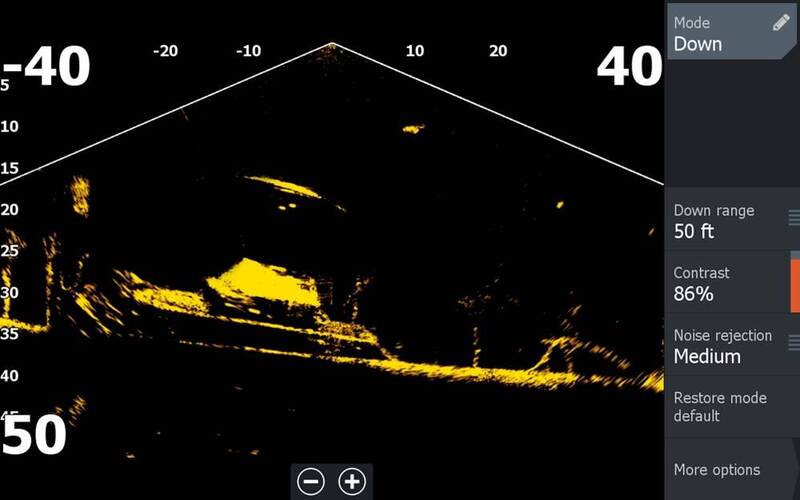

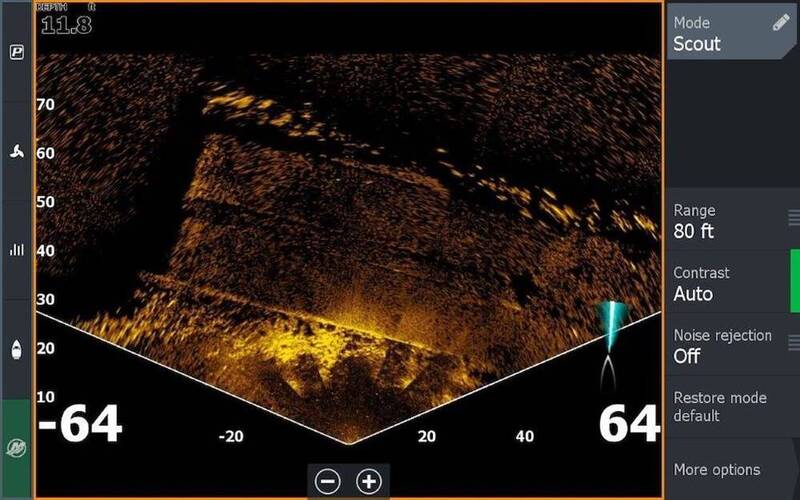

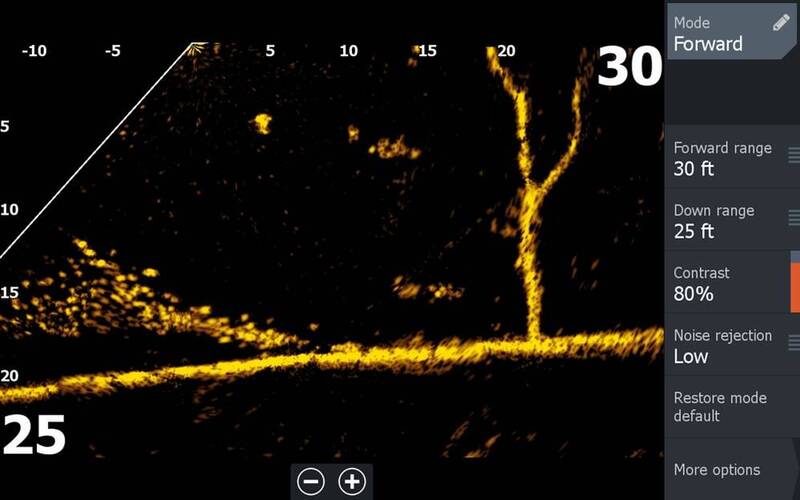

• See All Around Your Boat With Forward, Down And Scout Views
• Smoothest Underwater Images Aid Quicker Interpretation
• See Multiple Views Simultaneously With Second Optional Transducer On HDS PRO
• Compatible With Lowrance HDS PRO, HDS LIVE, HDS Carbon And Elite FS
• Limited 1 Year Warranty
