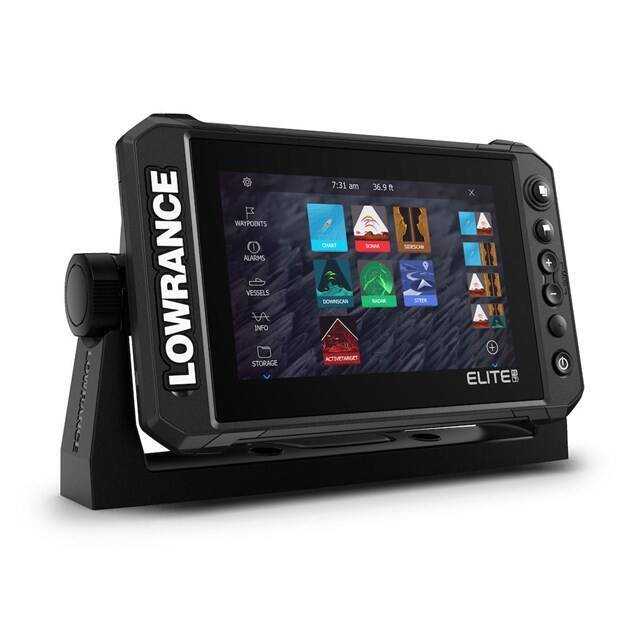

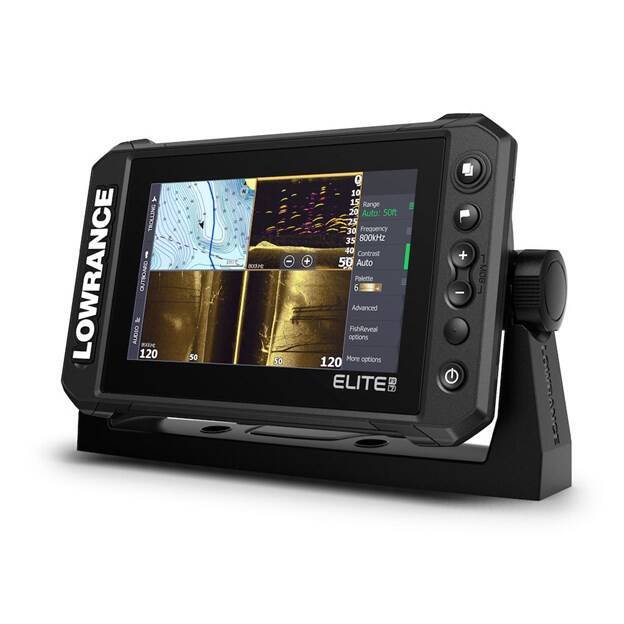

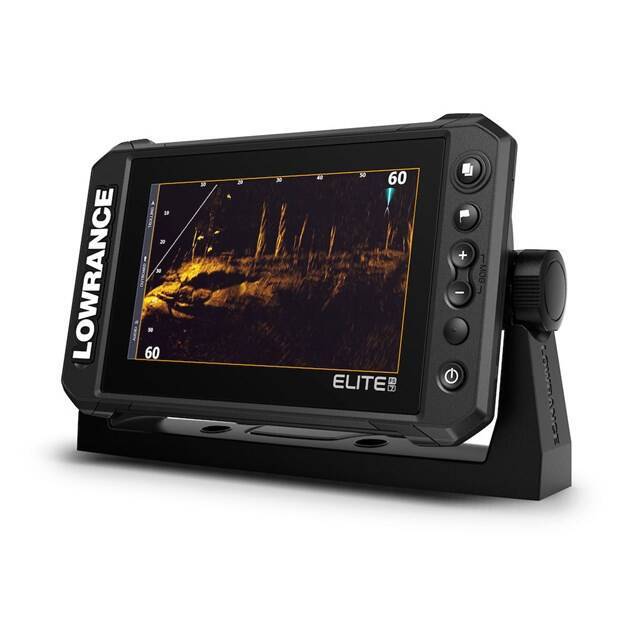

Lowrance Elite FS 7 with Active Imaging 3-in-1 • 000-15688-001

The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget® 2 Live Sonar, Active Imaging™ and Active Imaging™ HD and compatibility with a wide range of chart options – to help you make the most of your time on the water.

---

• Fish Are Easier To Find And Easier To Identify With FishReveal, Which Combines On One Screen The Proven Performance Of Lowrance Chirp Sonar
• High-Resolution Multi-Touch Touchscreen
• Features Active Imaging 3-In-1 Ready
• C-MAP Easy Routing, Navionics Autorouting Capability
• C-MAP Genesis Live Onscreen Mapping
• Integrated Wireless, NMEA 2000 And Ethernet Connectivity
• Full Touchscreen Control Of Power Pole ® Anchors And Ghost Trolling Motor
• Limited 1 Year Warranty

---

• Display Size: 7 Inch
• Display Resolution: 800 X 400 Pixels
• Overall Dimensions: 9.36 Inch Width X 6.4 Inch Height X 4.27 Inch Depth
• With Built-In GPS: Yes
• Mount Type: Bracket Mount Or Flush Mount
• With Transducer: Yes
• Used To: To Find Fish, Mark And Return To Hot Spots, Docks And Ramps
• Interface: Touchscreen
• Waterproof: IPX7 Rating Waterproof
• Sonar Compatibility: CHIRP SideScan And Down Scan With Support For ActiveImaging And Active Target Sonar
• Power Supply Voltage: 12 Volt
• Point Of Interest: 3000 Waypoints
• Weight: 1.9 Pound
• Screen Brightness: 1200 Nits
• Viewing Angle: 50 Degree Top/ 60 Degree Bottom/ 70 Degree Left/ Right
• SD Card Storage: Micro SD Card
• Fuse Rating: 3 Amp
• Operating Temperature Range: 5 To 131 Degree Fahrenheit
• Compass Safe: 12 Inch
• Cartography Included: C-MAP Contour + (US Models) Navionics Basemap (AMER, AUS/NZ And Row Models)

---

Includes:

• Elite FS unit
• Active Imaging 3-in-1 transducer
• Suncover
• Mounting bracket
• Powercord
