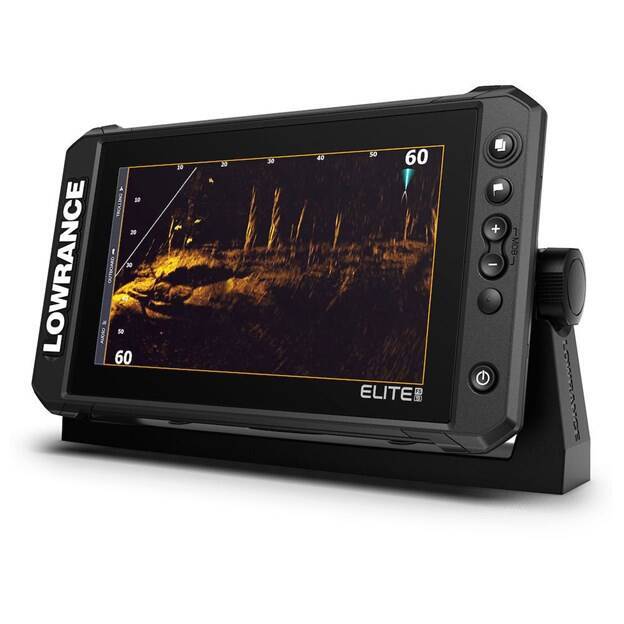

Lowrance Elite FS 9 and ActiveTarget Explorer Series Pack • 000-15956-001

A complete portable live sonar and fish finder solution for all your ice fishing needs. The Explorer Series brings together the Elite Fishing System (FS) with ActiveTarget all in one convenient pack designed to make your ice fishing experience the best it can be. The Elite Fishing System (FS) combines the power of Lowrance's proven and newest fishfinding tools with a more affordable display that's easier to use and install. From ActiveTarget live sonar and extreme high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging to preloaded C-MAP Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish. See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

---

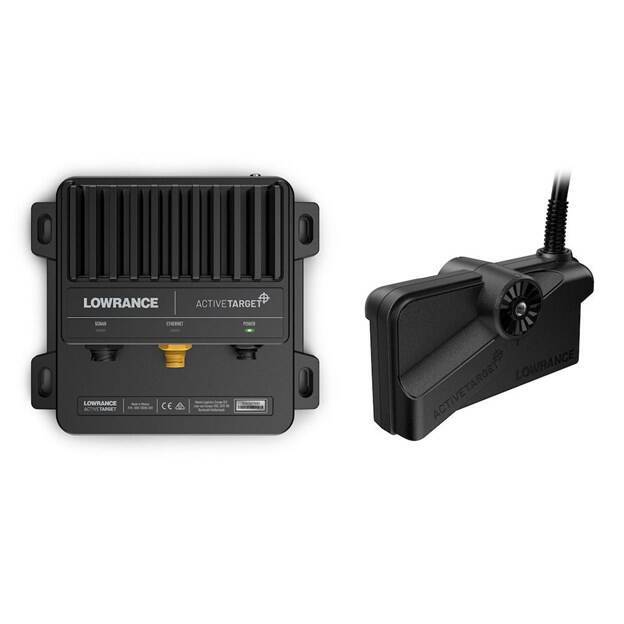

• See Fish React To Your Lure With ActiveTarget Live Sonar Transducer With 10 Feet Transducer Cable

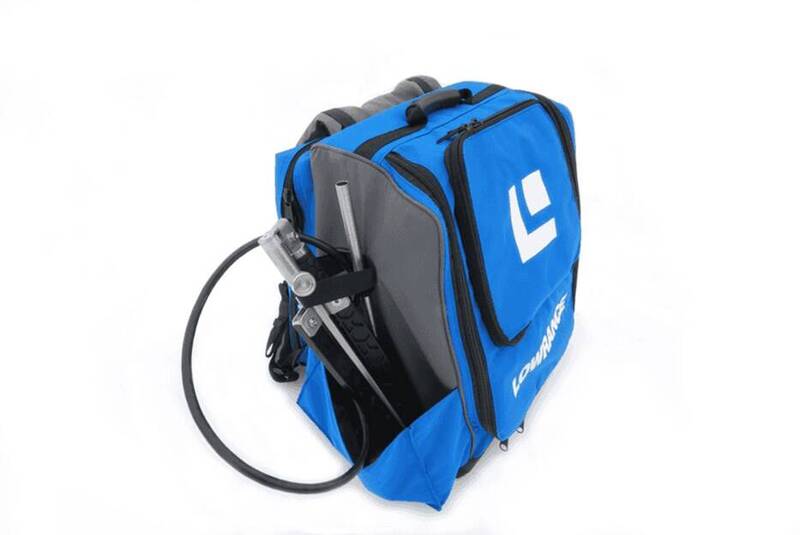

• Premium Explorer Bag With Shuttle Frame

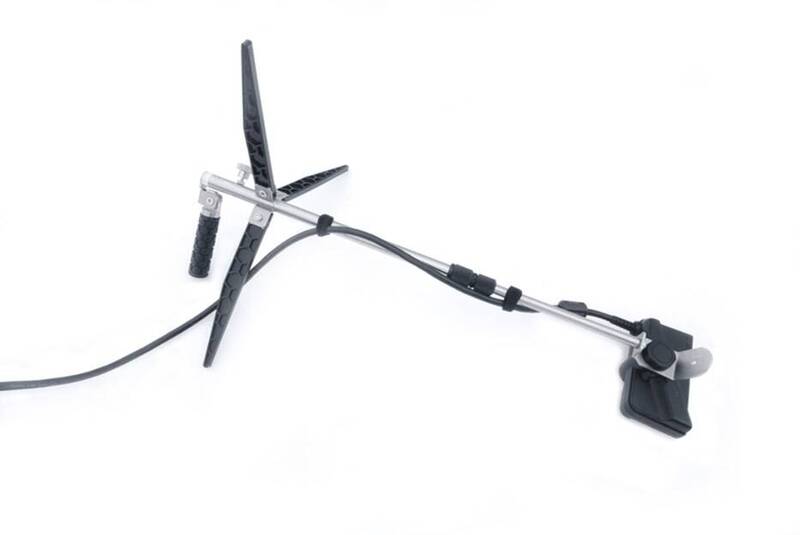

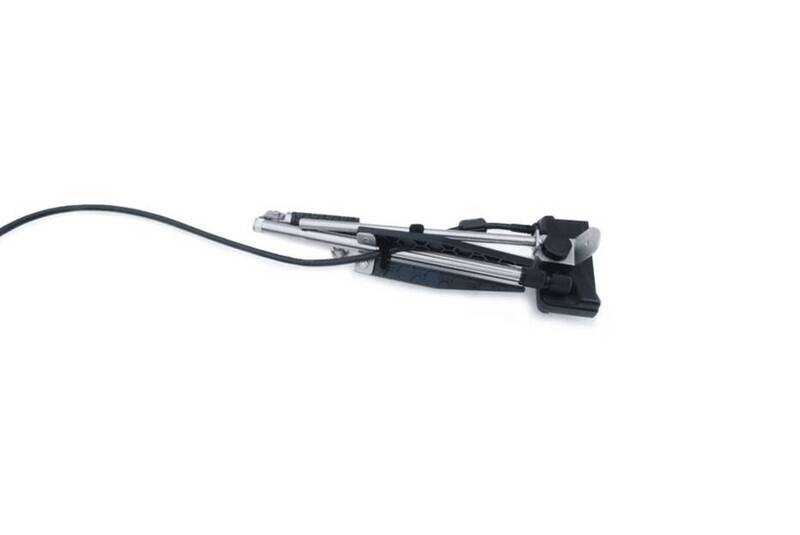

• Ice Transducer Pole For ActiveTarget Down, Forward and Scout Views
• 24Ah Lithium Battery With Dual USB Charging Ports and Built-In Voltage Meter
• Custom Wiring Harness And Master Power Switch
• Limited 1 Year Warranty

---

• Display Size: 9 Inch

• Display Resolution: 800 X 480 Pixels

• Overall Dimensions: 11.38 Inch Width X 7.1 Inch Height X 4.26 Inch Depth

• With Built-In GPS: Yes

• Mount Type: Bracket Mount Or Flush Mount

• With Transducer: Yes

• Used To: Find Fish And Identify Contours

• Interface: Touchscreen

• Waterproof: IPX7 Rating Waterproof

• Sonar Compatibility: ActiveTarget 2 Live Sonar

• Power Supply Voltage: 12 Volt

• Ampere Rating: 2 Amp

• Point Of Interest: 3000 Waypoints

• Weight: 2.7 Pound

• Screen Brightness: 1200 Nits

• Viewing Angle: 50 Degree Top/ 60 Degree Bottom, 70 Degree Left/ Right

• SD Card Storage: Micro SD Card

• Fuse Rating: 3 Amp

• Operating Temperature Range: 5 To 131 Degree Fahrenheit

• Compass Safe: 12 Inch
