Lowrance HDS PRO 16 with Active Imaging HD • 000-15990-001

See more and catch more with the new HDS PRO fishfinder/chartplotter. Watch fish react to your lure live with new, high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging™ HD. Quickly find fishing areas with the latest and most detailed C-MAP® charts and get full fishing system networking with expanded boat control from bow to stern.

• Display Size: 16 Inch
• Display Resolution: 1920 X 1080 Pixels

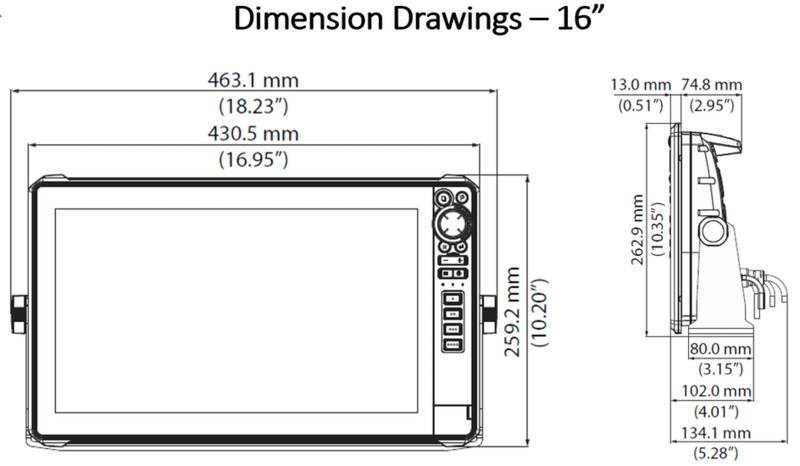

• Overall Dimensions: 16.95 Inch Width X 10.2 Inch Height X 3.46 Inch Depth
• With Built-In GPS: Yes

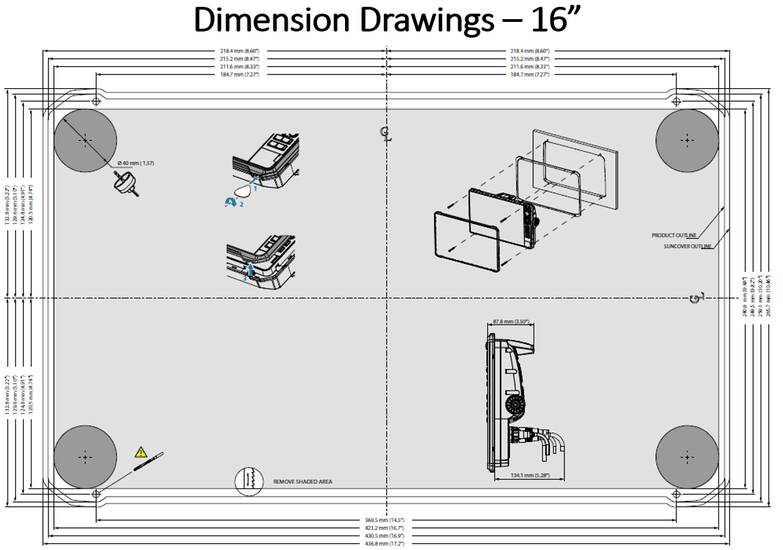

• Mount Type: Bracket Mount Or Flush Mount
• With Transducer: Yes
• Used To: Find Fish And Quickly Locate Prime Fishing Areas With Preloaded C-MAP DISCOVER On Board Charts
• Interface: Touchscreen
• Waterproof: IPX7 Rating Waterproof
• Sonar Compatibility: ActiveTarget® 2 Live Sonar
• Power Supply Voltage: 12 Volt
• Ampere Rating: 4.1 Amp
• Weight: 7.94 Pound
• Screen Brightness: 1200 Nits
• Viewing Angle: 80 Degree Top/ Bottom, 80 Degree Left/ Right
• SD Card Storage: Micro SD Card
• Fuse Rating: 5 Amp
• Operating Temperature Range: 5 To 131 Degree Fahrenheit
• Compass Safe: 2.1 Feet

• SolarMAX HD Touchscreen Viewable At Extreme Angles And Through Polarized Lenses
• New, High-Definition 1.2 Megahertz Active Imaging HD Ready Transducer
• New, High-Resolution ActiveTarget 2 Live Sonar Ready
• FishReveal With New SideScan View, As Well As Downscan
• Preloaded C-MAP DISCOVER Onboard Charts With 1-Foot Contours On 19,000+ US Lakes, 9,400+ Canadian Lakes
• Real-Time Mapping Available With C-MAP Genesis Live
• Large Programmable Keys
• Support For New ActiveTarget Scout And Ghost Trolling Motor 360 Chart Overlay Views
• Touchscreen Control Of Power-Pole Anchors, Ghost Trolling Motor, Autopilot and Lowrance Outboard Pilot
• Limited 1 Year Warranty
