Maretron GPS NMEA2000 Antenna, White • GPS200-01

Maretron's GPS200 is a state-of-the-art 99 channel GPS/GLONASS antenna and receiver capable of providing ten position fixes per second, accurate boat speed ten times per second, and precision time once per second. An additional benefit of the GPS200 is that it broadcasts precision magnetic variation information using the current position and world magnetic model (WMM-2015). The GPS200 antenna/receiver is a plug-and-play device that is fully compliant and certified to the NMEA 2000® Standard. It will directly connect to any NMEA 2000® network and communicate with navigational software, chart plotters, autopilots and dedicated instrument displays - such as Maretron's DSM570 / DSM410 color graphics displays, and its compact, waterproof housing provides years of reliable performance. The GPS200 automatically decodes GPS correction signals from Satellite Based Augmentation Systems (SBAS) including the North American Wide Area Augmentation System (WAAS), the European Geostationary Navigation Overlay System (EGNOS), or the Asian Multifunctional Transport Satellite-based Augmentation System (MSAS) to provide better than 2-1/2 Meter accuracy.

---

• Mounting Location: Deck/ Pole Mount
• Color: White
• Temperature Range: -25 To 55 Degree Celsius Operating/ -40 To 70 Degree Celsius Storage

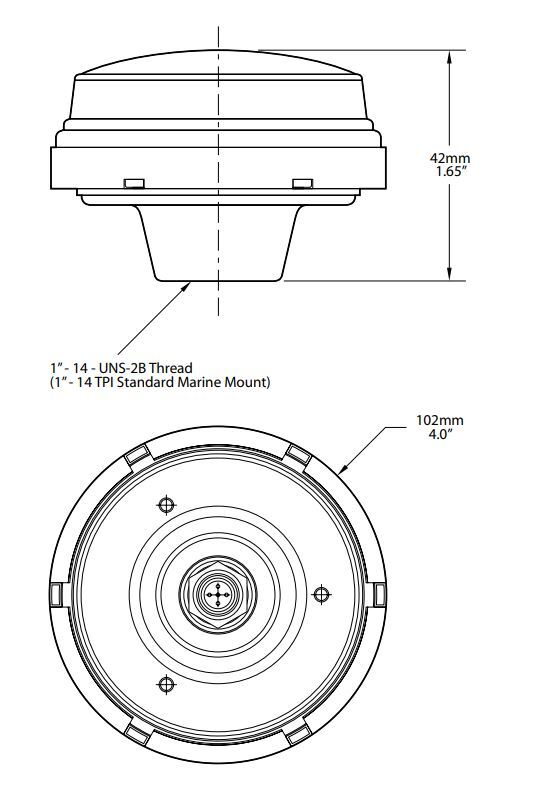

• Dimensions: 4 Inch Diameter x 1.65 Inch Height
• Material: Plastic
• Waterproof Rating: IP67 Waterproof
• Includes: With Pole Mount Base/ Brass Mounting Screws/ Lock Washer/ User Manual
• Capable Of Producing Ten Position Fixes Per Second
• Unprecedented Sensitivity And Can Even Be Mounted Underneath A Fiberglass Deck
• Plug-And-Play Device That Is Fully Compliant And Certified To The NMEA 2000® Standard
• Compact, Waterproof Housing Provides Years Of Reliable Performance
• Limited 2 Year Warranty
