Maretron NMEA 2000 to USB Gateway • USB100-01

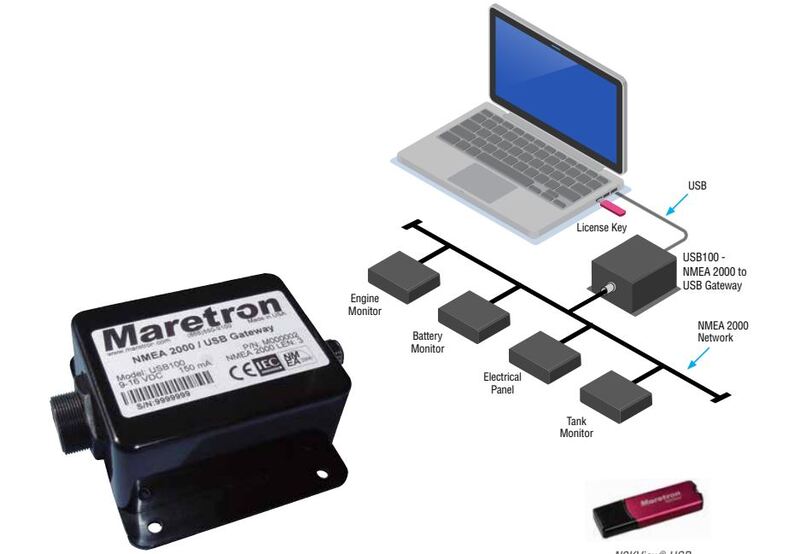

Maretron's Network Gateway is a gateway for bridging computers to an NMEA network. This allows you to use PC based vessel monitoring and control software like Maretron's N2KView® or PC based navigation software. The gateway provides one simple connection between the network and the PC, which eliminates conventional multiplexers and the maze of wires usually associated with interfacing equipment to PCs. Additionally, Maretron’s Network Gateway can be used to connect Maretron’s N2KView® Vessel Monitoring and Control Software or Maretron’s N2KAnalyzer® NMEA 2000 Network Analysis software to an NMEA 2000® network. The Maretron Network Gateway is designed to operate within the harsh demands of the marine environment. However, no piece of marine electronic equipment can function properly unless installed, configured, and maintained in the correct manner. Please read carefully and follow these instructions for installation, configuration, and usage of the Maretron Network Gateway in order to ensure optimal performance.

---

• Used To: Bridging Computers To NMEA Network
• Voltage: 9 To 32 Volt
• Ampere Rating: 0.05 Amp
• Dimensions: 3.46 Inch Length x 3.11 Inch Width x 1.38 Inch Height
• Waterproof: IP67 Waterproof
• Certifications: NMEA 2000® Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
• Includes: With 4 Mounting Screws/ USB Flash Drive Containing Software/ User Manual
• NMEA 2000® And USB 1.1 Interfaces
• Waterproof NMEA 2000® And USB Connectors
• Sealed Waterproof Enclosure
• Translates More Than 20 NMEA 2000® PGNs To Equivalent NMEA 0183 Sentences
• Translates NMEA 0183 Sentences To Corresponding NMEA 2000® PGNs
• Supports N2KView® And N2Analyzer® Connection To NMEA 2000® Networks
• USB Opto-Isolated From NMEA 2000® Eliminating Potential Ground Loops
• Obtains Power Directly From USB And NMEA 2000® Ports
• Limited 2 Year Warranty
