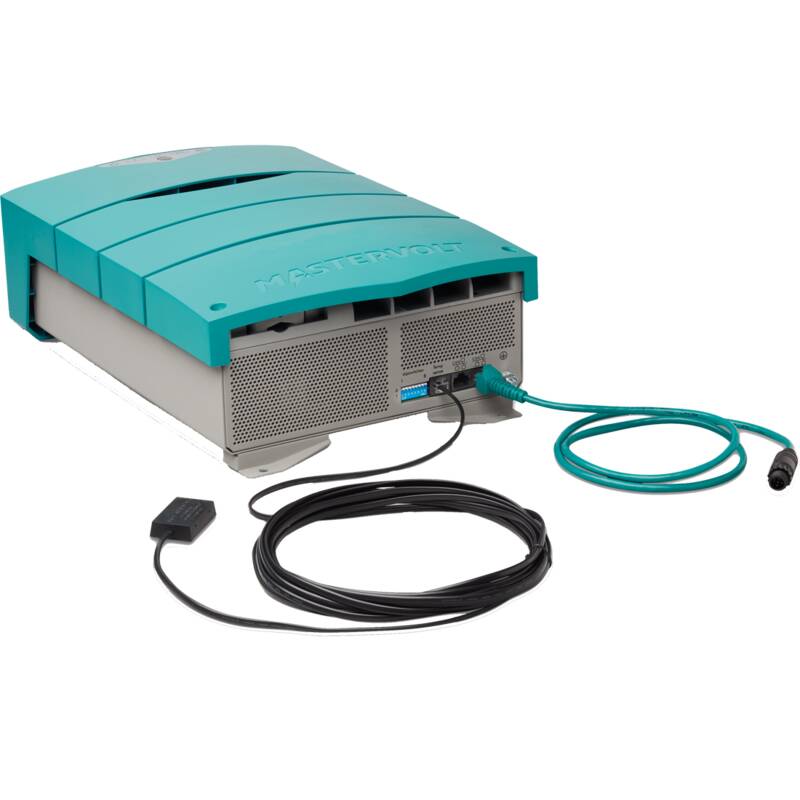

Mastervolt ChargeMaster Plus 75A 12V 3-Bank Battery Charger with CZone & NMEA Interfaces • 44310755

ChargeMaster Plus 75A 12V 3-Bank Battery Charger with CZone & NMEA Interfaces (44310755) by Mastervolt. ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of three batteries in a fast and safe way and works anywhere in the world.

• Nominal output voltage (output 1 & 2): 12 V
• Nominal output voltage (output 3): 12 V
• Output current output 3 (current limited): 5-40 A at 12 V
• Input current 'Smart Input': 40 A at 12 V
• Max. AC current (230 V / 120 V): 6.5 A / 13 A
• Total charge current: 75 A at 14.4 V
• Number of battery outlets: 2 +1
• Battery capacity range: 320-800 Ah
• Nominal input voltage: 120/230 V (80-275 V), 50/60 Hz

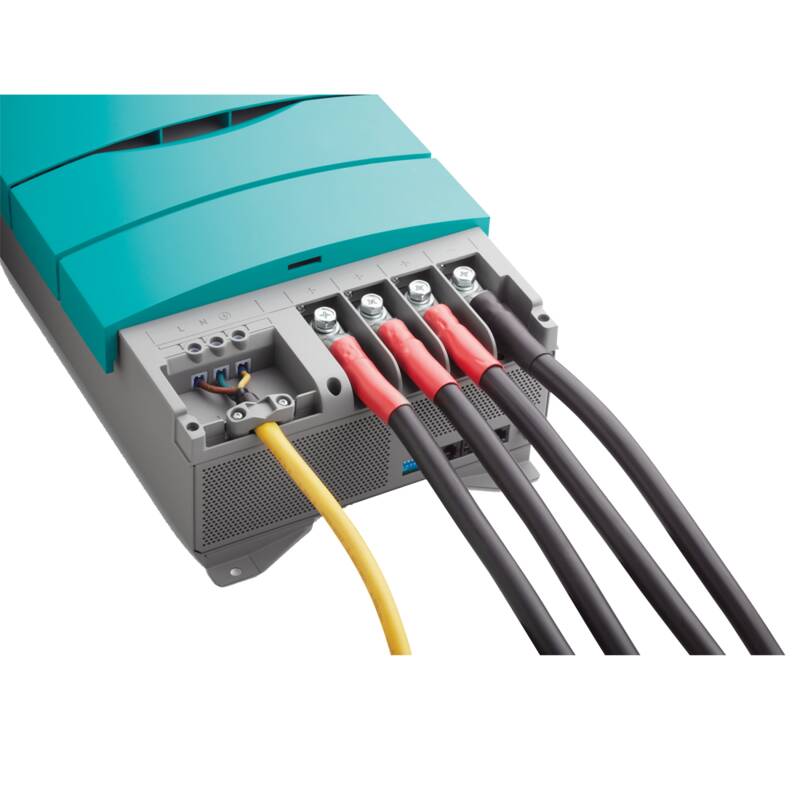

• AC connection: screw terminals, suitable up to up to 6 mm²
• Power supply mode: yes
• Display/read-out: LED display
• Dimensions, H x W x D: 384 x 250 x 127 mm, 15.1 x 9.8 x 5.0 inch
• Weight: 5.9 kg, 13.0 lb
• Approvals: CE, E-mark, ABYC, UL1236, SAE J1171, CEC, RCM/C-Tick
• Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/Lithium Ion/traction/spiral
• Temperature compensation: -30 mV/°C / -17 mV/°F; temperature sensor included
• DC voltage compensation: through MasterShunt
• Power consumption (DC side): < 2 mA (MasterBus off)
• Current Control function: yes, through MasterBus
• Power factor control: > 0.98
• Temperature range (ambient temp.): -25 °C to 80 °C, derating > 40 °C, -13 °F to 176 °F
• Cooling: vario fan
• Protection degree: IP23, vertical mounting
• Protections: over-temperature, overload, short circuit, high/low battery voltage
• MasterBus compatible: yes
• Charger Status Interface (alarm contact): yes, using a Multipurpose Contact Output
• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR
• Combine Lithium Ion, Gel or AGM, and large or small 12/24 V battery banks on a single battery charger
• Charges multiple batteries while being underway
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C
• Safe Charge: quickly recognize the State of Charge for extended battery life
• Very wide operating range
• Compact, easy to connect and quick to install
• Limited 2 Year Warranty
