Mile Marker PE5000 ATV/UTV Winch, 5,000 LB • 77-50120W

The PE5000 series winch is a mini-monster of UTV recovery power packed into a sleek, compact design. Featuring an all-metal, 3-stage planetary gear system, a submersible, 250-amp solenoid, and 5,000 pounds of pulling capacity, at only 19 pounds there is nowhere this winch can"™t go. Fully-sealed, submersible, water, mud, and snow proof, the PE5000 Steel Cable Version comes with a 1/4" x 79"™ steel cable, a galvanized roller fairlead, an anodized aluminum hawse fairlead, a hook, corrosive-resistant, and a handheld remote control for versatility and convenience.

• 3.8 HP Permanent Magnet Motor
• All Metal Planetary Gearing
• Submersible, 250 Amp Solenoid
• Automatic Load Holding Brake
• Center Focused Drum
• Fast Line Speeds
• 79"² of Steel Cable
• Aluminum Hawse Fairlead
• Waterproof

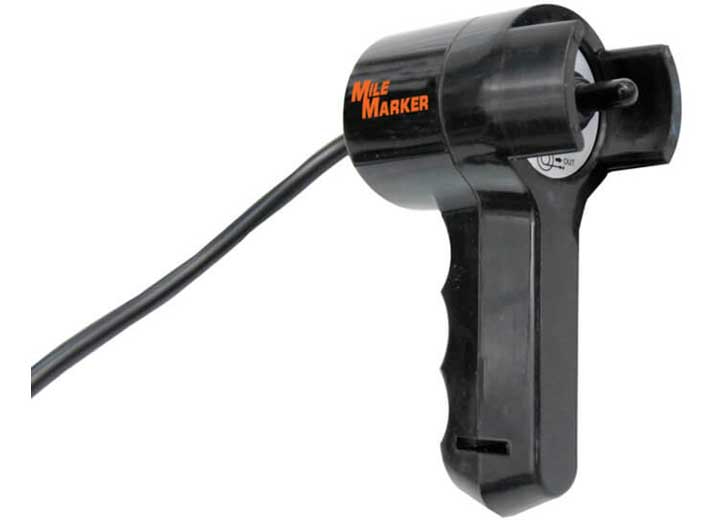

• Handheld Remote Controls

• Rated line pull: 5000 lbs.
• Gear Train: 3 Stage Planetary
• Gear Ratio: 165:1
• Motor: 12 Volt DC, input power 3.8hp (2.8 kw)
• Remote Control: Power-In, Power-Out Remote
• Steel Cable: 1/4" X 79"™
• Drum Size: 2.01"³ X 5.4"³ (51.1 mm X 137.16 mm)
• Net weigh:t (Cable) 24 lbs (10.8 kg)
• Bolt Pattern: 4 Bolt pattern, 3"³ X 6.61"³ (79 mm X 168 mm)
• Dimensions: (LxWxH) 15.62"³ X 4.61"³ X 4.72"³ (397MM X 117 mm X 120 mm)
