Mile Marker SEC 18 18000 lb. Winch • 77-50280W

Mile Marker’s most powerful Electric winch to date: the SEC18(es). With 18,000 Pounds of pulling and recovery power, this electric winch can be utilized in many applications from tow trucks to industrial DC; due to its relatively light weight and wide range of flow accommodations. The SEC18(es) features fast line speeds, is completely sealed, and meets SAE J706 Standards.

---

• Winch Rating: 18000 Pound
• Recommended Use: Vehicle Recovery
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 12 Volt
• Free Spooling: Yes
• Line Length (FT): 75 Feet
• Line Material: Steel

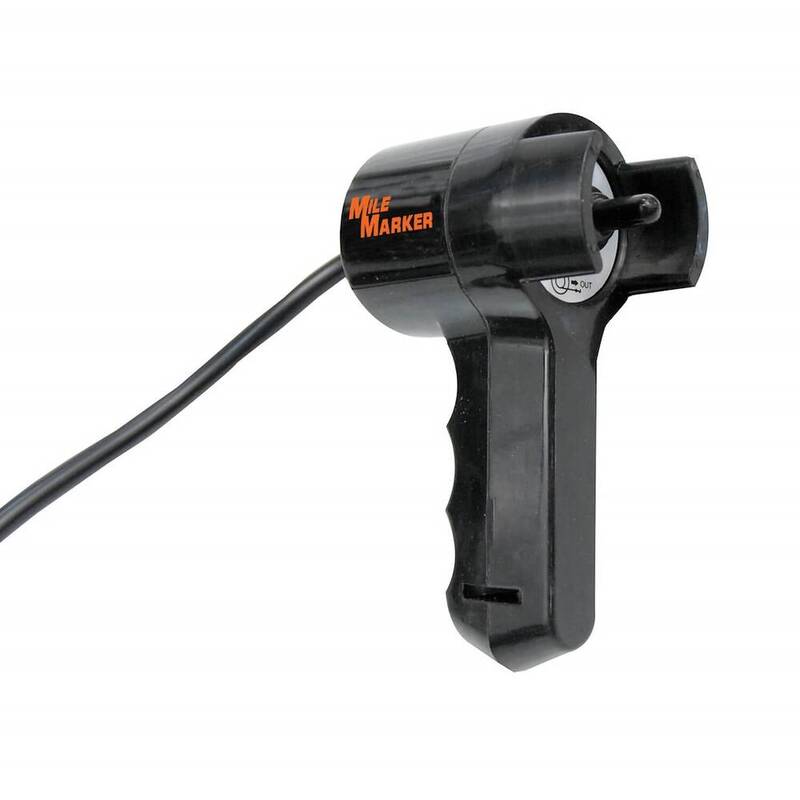

• Remote Type: Wired
• Universality: Fully Universal
• Mounting Pattern Size: 11-1/2 Inch Length X 8 Inch Width
• Brake Type: Automatic Full Load
• Max Amp Draw: 233 Amp Draw At 18000 Pound
• Gear Reduction Ratio: 315:1
• Color: Black
• Motor Horsepower: 7.7 Horsepower
• Fairlead Type: Roller
• Line Speed At Max Pull: 3.6 Feet Per Minute At 18000 Pound
• Electrical Control Type: Solenoid
• Motor Type: Series Wound
• Drive Gear Type: Planetary
• Line Diameter (IN): 1/2 Inch
• Mounting Hole Quantity: 8

---

• Load Holding Brake
• Fully Sealed
• Fast Line Speeds
• Clockable Gear Housing
• Meets SAE J706 Standards
• Limited 2 Year Warranty
