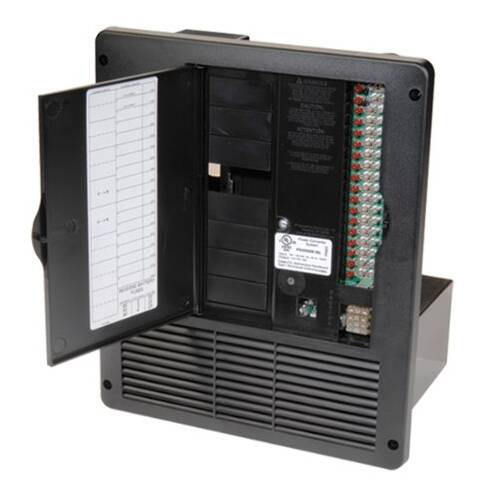

Progressive Dynamics Inteli-Power 4500 Series All-in-One AC/DC Distribution Panel - 50 Amp • PD4560AV
Product Details
- AC Distribution Panel is rated for 240 VAC at 50 AMPS
- DC Section has up to 18 branch fuse holders
- Largest converter/charger available in the industry
- Pantented built in Charge Wizard reduces RV battery recharge time and increases battery life, while reducing battery sulfation and maintenance problems
- AC breakers not included and shown for reference only
- Maximum DC Output Current: 60 AMPS
- Maximum Continuous Input Power: 1,000 Watts
- No Load DC Output Voltage: 13.6 VDC
- No Load Voltage Tolerance: +/- .3 VDC
- Full Load Output Voltage: >12.6 VDC
- Ripple and Noise Voltage: <100 MV RMS
- Input Voltage Tolerance: 105 - 130 VAC
- Input Voltage Frequency: 50-60 HZ
- Peak Inrush Current: 47AMPS
- Input Current at Rated Power: 11.4 AMPS
- Efficiency (Typical): >80%
- Reverse Battery Protection: YES
- Electronic Current Limiting: YES
- Cooling Fan: Auto variable speed
- Back Up Thermal Protection: YES
- Full Function Charge Wizard: YES
- Storage Temperature: -20 - 80C
- Operating Temperature: 0 - 50C
- Hipot Voltage Test: 1240 V @ Input Terminals
- Over Voltage Protection: YES
- Rating (maximum input): 240 VAC/50 AMPS
- Rating (maximum output): 120 VAC/50 AMPS
- Weight: 8lbs
- Cutout Size: 10.125W x 13.25H
- Dimensions: 11.85W x 14.125H x 7.8D
- DC Fuse Positions: 12/18
$448.99
12 in stock
Quantity
