Progressive Dynamics Intelli-Power 1000 Watt Pure Sine Inverter w/ 15 Amp Input Cable • PD1610AJ
Reverse battery protection
Thermally controlled fan speed
Unit can be monitored by remote control
Auto Restart after power interrupt
Easy AC hardwire hookup
Remote included
Conforms to UL STD 458, Certified to CSA STD C22.2 No. 107.1
DC lug connection
Unit weight: 7 lbs
Unit dimensions: 11.2 x 6.7 x 4.0
1,000 watt continuous power
2,000 watt peak power
Built-In Transfer Switch: 20 Amps @ 95-135 VAC
Pure Sine Wave
15-Amp input cord included
2 Year Limited Warranty

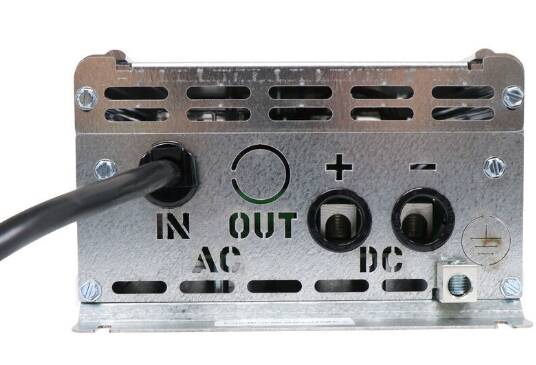

Electrical Connections
DC Connections: DC Lugs (no expensive ring terminal required)
AC Connections: Vertical push-in connections only (no GFCI)
AC Knockouts: Removable by hand
Digital Display

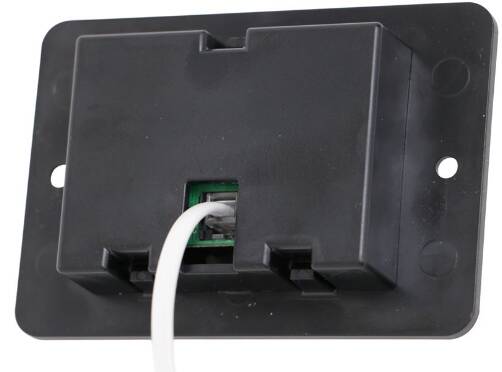

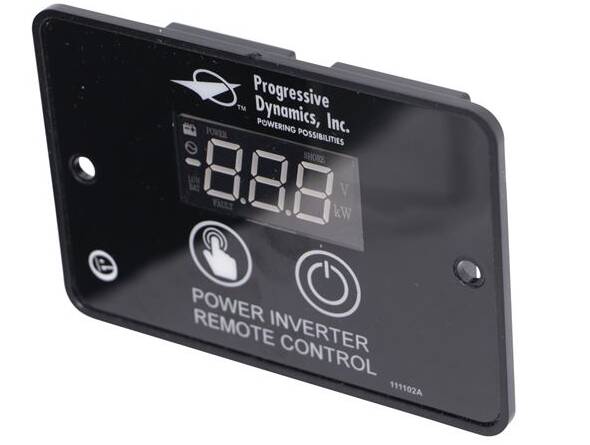

Remote Control Panel: Full control (same as onboard control)
Remote Control Location: Up to 50’ wired connection display Data: DC Volts In, AC Volts Out, AC Power Out, Error Codes
Display Indicators: Low Bat Warning, Fault, Shore, Power
Display Sleep Mode: After 30 seconds, Display turns off, Power indicator remains on
RV-C Compatable: Yes
Electrical Specs
Surge Power (peak): 2000 Watt
AC Output Voltage: 120 Volts AC +/-2%
Optimum Efficiency: >90%
AC Pass-Through Current: 15A
DC Input Current: Approx 100 amps at full power output
