PullRite SuperGlide Quick Connect Capture Plate for 12" Wide Leland Pin Boxes • 331730

PullRite SuperGlide Quick Connect Capture Plate for 12
PullRite SuperGlide Quick Connect Capture Plate for 12
PullRite SuperGlide Quick Connect Capture Plate for 12
Pullrite
Product Details

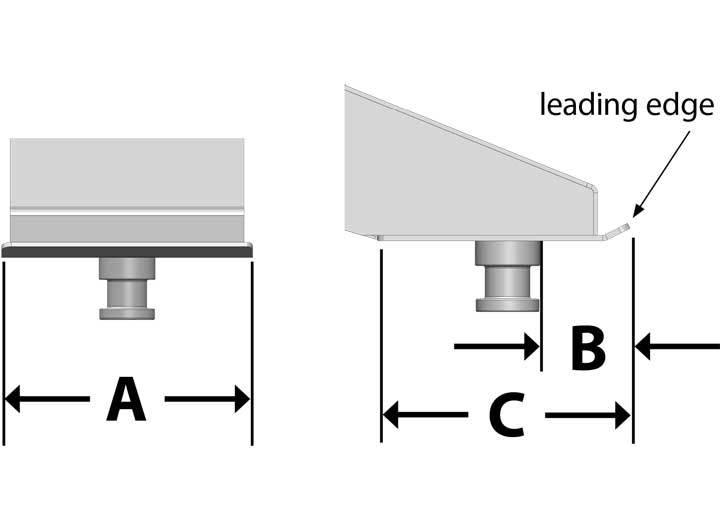

your trailer’s skid plate. When you’re hooked up into your SuperGlide hitch and ready to tow, it isolates the rotation of your trailer’s king pin in the hitch. Movement and rotation are then transferred to the automatic cam action of your SuperGlide hitch, moving it away from the cab along its rails to prevent the trailer from contacting the cab of your truck! To determine the correct capture plate for your application, first find the manufacturer’s name and model number located on your pin box. Then make the necessary A, B, and C measurements. “A” measures the king pin plate from side-to-side. This is the most important measurement. Be sure that this measurement is no more than 1/16” less than the measurement listed. “B” measures the leading edge of the king pin to the leading edge of the king pin plate. “C” measures the rear edge to the leading edge of the king pin plate.


  • For Use with PullRite SuperGlide Hitches
  • Compatible with Most Models of Leland Pin Boxes that are 14" Wide
  • Measurement A: 14" (King Pin Plate Width)
  • Measurement B: 5-1/2" (Leading Edge of King Pin to Leading Edge of King Pin Plate)
  • Measurement C: 12-1/4" (Rear Edge to Leading Edge of King Pin Plate)
$149.00
10 in stock
