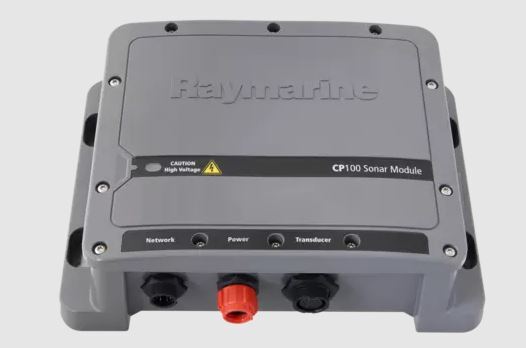

Raymarine CP100 DownVision Sounder Module • E70204

The CP100 network sonar module brings CHIRP DownVision technology to Raymarine's chartplotter displays. CP100's CHIRP DownVision delivers a photo-like view of the world beneath your boat, allowing you to image the bottom structure with amazing detail and target fish simultaneously. Unlike conventional imaging sonars that transmit a single frequency with each pulse, the CP100 uses CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse - the result is much higher resolution, photo-like sonar images.

• Size: 8.9 Inch Width x 2.8 Inch Depth x 6.4 Inch Height
• Frequency: 350 kHz Center Frequency DownVision/ 200 KHz Traditional
• With Transducer: No
• Input Voltage: 12 Volt/ 24 Volt
• Temperature Range: 0 Degree Fahrenheit To 55 Degree Fahrenheit
• Waterproof: IPX6/ IPX7 Waterproof
• Includes: With Power Cable, Screws
• Photo-Like Imagery Of Bottom Structure Using Raymarine's CHIRP DownVision Technology
• DownVision™ Depth Performance To 900 Feet
• Dual Channel CHIRP Sonar; View High-Resolution CHIRP DownVision Structure Imagery And Target Fish With CHIRP Sonar Simultaneously
• Network The CP100 With Raymarine's Latest Generation Chartplotter Displays
• Limited 2 Year Warranty
