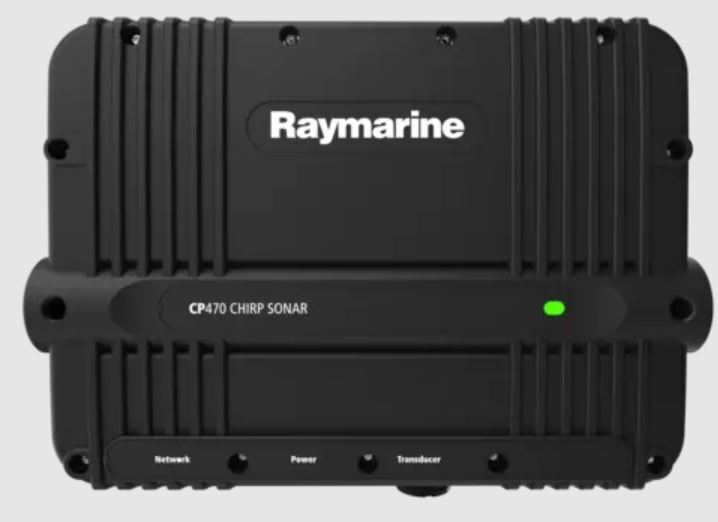

Raymarine CP470 CHIRP Sonar Module • E70298

The CP470 sonar module delivers best-in-class fish finding and high-resolution CHIRP sonar imagery to Raymarine chartplotter displays. Using a wide spectrum of frequencies and greater sensitivity, the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Designed for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high-resolution fish targets and reliable bottom tracking.

---

• Size: 11.79 Inch Width x 3.3 Inch Depth x 8.1 Inch Height
• Frequency: 25 kHz To 255 kHz
• With Transducer: No
• Input Voltage: 12 Volt/ 24 Volt
• Temperature Range: -4 Degree Fahrenheit To 122 Degree Fahrenheit
• Waterproof: IPX6 Waterproof
• Includes: With Power Cable/ Cable Ferrite/ Fixings Screws/ Network Cable/ Additional Ground Wire Kit
• Superior Target Definition And Enhanced Sensitivity Using Raymarine’s Exclusive Wide Spectrum CHIRP Sonar Technology
• Target Fish, Identify Bait, And Track The Sea Floor Down To 10,000 Feet With Two Adjustable CHIRP Sonar Channels
• With 10 Times The Resolution Of Ordinary Sonars The CP470 Delivers Sharper, More Defined Fish Targets And Automatically Filter Out Unwanted Noise So You Never Miss The Action Below
• TruZoom™ Magnification Mode Reveals Extra Target Detail Without Any Loss Of Resolution
• Choose Optional Low, Medium, And High CHIRP Frequency Transducers In Standard Or Wide-Beam To Match Your Fishing Preferences
• Automatically Recognizes Connected Transducers And Adjust Sonar Parameters For Optimized Performance
• View And Control Each CHIRP Channel Independently And Create Your Own Combination Of Full Or Split Screen Sonar Windows On Raymarine’s LightHouse Powered Multifunction Displays
• Limited 2 Year Warranty
