Raymarine Day & Night IP Marine Bullet Camera • E70346

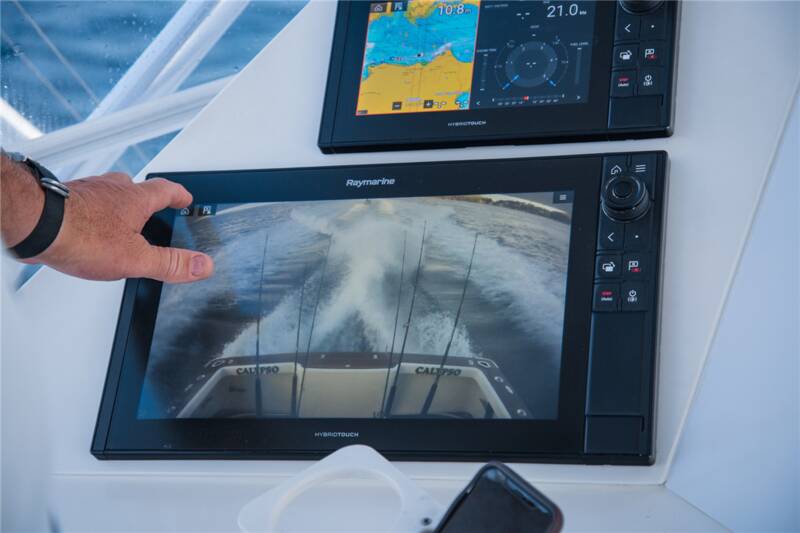

• Plug and play integration with Raymarine MFD's running Lighthouse II
• Power over Ethernet (PoE) or direct 12v DC power supply
• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
• Intelligent IR technology for clear video images at night in all conditions
• Warranty: Two year, with third year after on-line registration

Specifications:

• CPU: 32-bit ARM9 RISC CPU up to 432MHz

• Flash / SDRAM: 128MB / 128MB

• Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)

• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel

• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel

• S/N Ratio: More than 50dB

• Minimum Illumination: 0Lux (IR On)

• IR Distance: 20m

• Day & Night: ICR

• Lens: 6.0mm Megapixel Board Lens

• Field of View: Diagonal = 63.6 deg +/- 3 deg, Horizontal = 33.1 deg +/- 3 deg, Vertical = 53.3 deg +/- 3 deg

• Video Compression: H.264 High Profile@4.0, MJPEG -Image quality: 3 Steps

• Resolution: Up to 1920 x 1080 (Full HD)

• Frame Rate: H.264 Up to 30fps with 1920x1080 MJPEG Up to 30fps with VGA resolution

• Video Streaming: Support multi stream with H.264, MJPEG, Adjustable frame rate, CVBR/CBR in H.264

• Image Setting: Day & Night, Auto White Balance, Auto Exposure, PriV ACy Mask, Effects - Colour, Sharpness, Mirror / V-Flip

• Security: Password protection, User access log, HTTPS encryption

• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP

• Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks

• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af

• Power Consumption: Max. 3.3W, Max. 5.3W with IR

• Net Weight: 900g

• LED's: Power, Network Connection

• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket

• General Operation Temperature: 0 degree~40 degree Celsius(32F~104F)

• Storage Temperature: -10 degree~50 degree Celsius(14F~122F)

• 1x CAM210 IP Camera Stand
• 1x Waterproof Coupler
• 1x CAM210 Hardware Kit
• 1x CD (English)
• 1x CAM210 Mounting Template
• 1x Warranty Booklet
• 3x Serial Number Labels - Service
