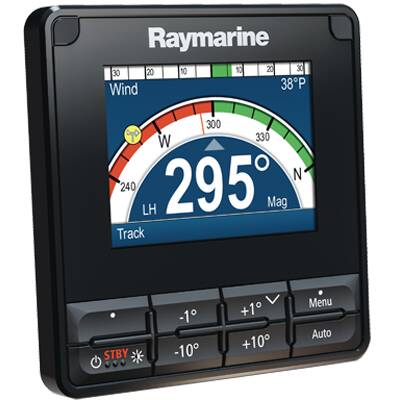

Raymarine p70s Autopilot Control Head • E70328

This control head with a glass bridge industrial design compliments Raymarine eS and gS Series multi-function displays. All weather, low power, optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle. Easy to use LightHouse user interface with sculpted rubber keypad for precise operation in all conditions. The p70s and features a vibrant color display and is powered by Raymarine's intuitive LightHouse user interface. LightHouse organizes all options into simple menu structures, so with Evolution's Automagic 3-step setup process you will be up and running in minutes.

• 3.5" super bright oversized LCD for maximum visibility
• All weather, low power, optically bonded display technology delivers brighter colours, sharper contrast, and a wide viewing angle
• Button or rotary control options for sail and power applications
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Display the pilot information in different formats with automatic 3-step setup for leisure, cruising and performance
• Simple system and group dimming / illumination
• Easy to use Lighthouse user interface with sculpted rubber keypad for precise operation in all conditions
• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
• New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
• Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover
• Display Type: 16-bit Color TFT LCD
• Screen Size: 3.45"diag.
• Width: 4 3/8"
• Height: 4 5/8"
• Depth: 1 3/8"
• Cutout Size: 3 5/8"dia. x 2 3/16"D w/cable
• Horizontal Pixels: 320
• Vertical Pixels: 240
• Number of Colors: 64,000
• Data Interface: SeaTalkng, NMEA 2000,
• SeaTalk Voltage: 12V DC
• Amperage: 69mA no lighting, 134mA 100% illumination
• Waterproof Rating: IPX6 and IPX7
• Warranty: Three years (with product registration)

What's in the Box

• p70s Pilot Controller
• Bezels
• Gasket
• Suncover
• 4 x mounting screws
• Document pack
• SeaTalkng blanking plug
• SeaTalkng spur cable
