Raymarine Ray91 Marine VHF Radio w/ AIS Reciever • E70493

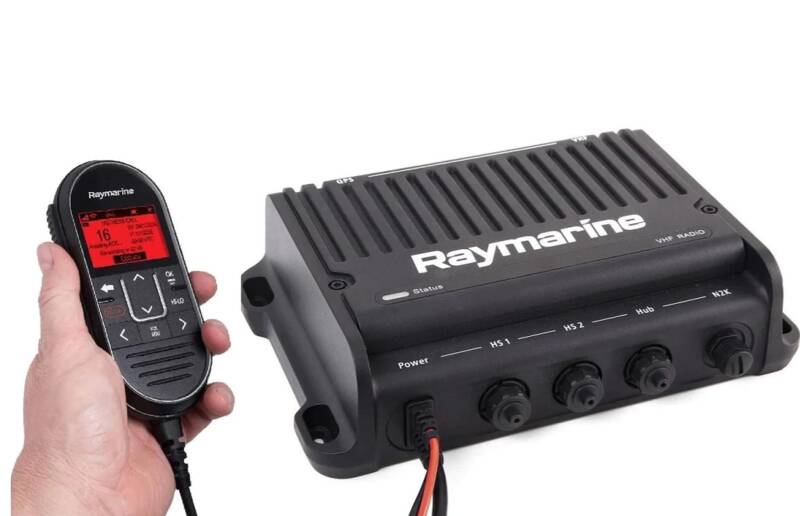

Ray91 25W RF Black Fixed Mount VHF Radio (E70493) by Raymarine®. The Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

• Drilling required
• GA150 antenna is required for GPS Receiver
• Water Integrity: Complies with IPX6 & IPX7 Complies with EN60945
• Operating Temperature Range: -25°C to 55°C
• Storage Temperature Range: -25°C to 70°C
• Humidity: up to 95%
• Communications Port: NMEA0183 (version 4.01); NMEA2000 (version 3.101)
• Nominal Supply Voltage: 12VDC. Reverse polarity and over voltage protected
• Operating Voltage Range: 9VDC to 16VDC
• Current Consumption: Less than 6A at High Power (13.6V)
• Standby: 600 mA
• Receive: 2 Amps
• Channels: All available US, International and Canadian VHF marine bands
• Frequency Range: 156.000 – 157.425 MHz, 155.500 to 161.425 MHz Private channels
• Frequency Stability: + / - 1.5 ppm
• Channel Spacing: 12.5 kHz
• Power Output: High Power = 25 Watt, Low Power = 1 Watt
• Spurious emmission: Better than -36 dBm at 25W (Less than 0.25 uW)
• Maximum Deviation: +/- 5kHz
• Antenna port impedance: 50 ohms typical
• Receiver Type: Double Conversion Super Heterodyne
• Wireless Frequency: 2.4GHz: 2.4GHz:
• Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
• Squelch Sensitivity: Less than -2 dBu EMF
• Hum & Noise: Better than -40 dB
• Audio Distortion: Less than 10%
• Receiver Sensitivity: Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical
• Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
• Adjacent Channel Selectivity: More than 70 dB
• Spurious Response Rejection: More than 70 dB
• Inter Modulation Rejection: More than 70 dB
• External Passive Speaker Power: 5W (4Ohms) / 2.5W (8Ohms) (Passive)
• Hailer Speaker Power Output: 24W (4Ohms) / 12W (8Ohms)
• AIS Class Type: Receive Only
