SI-TEX
Product Details

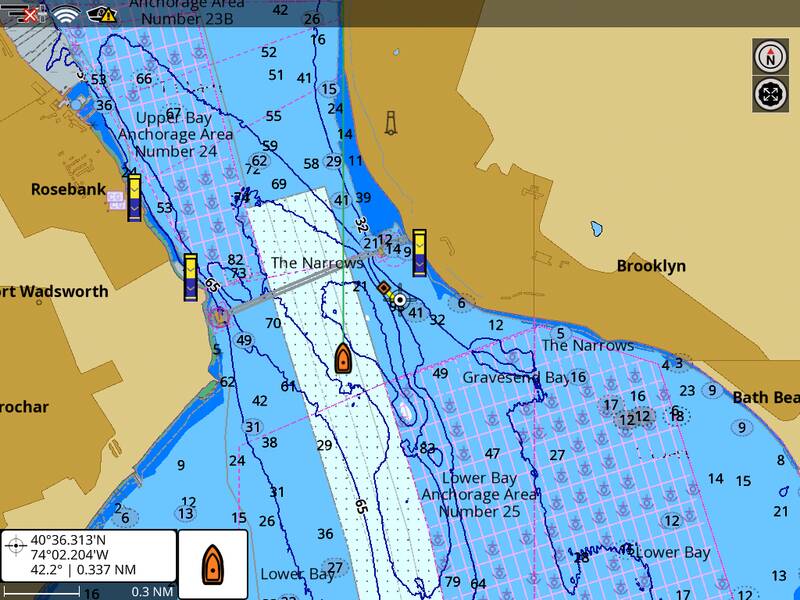

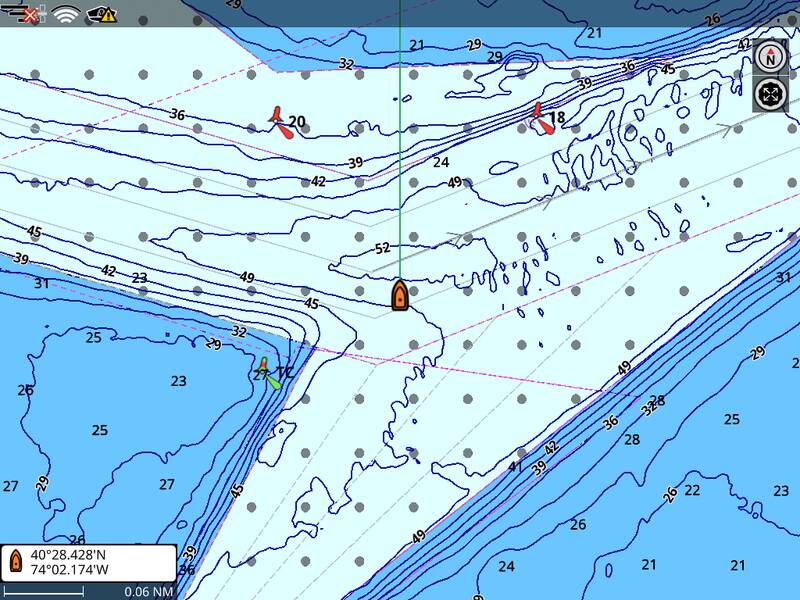

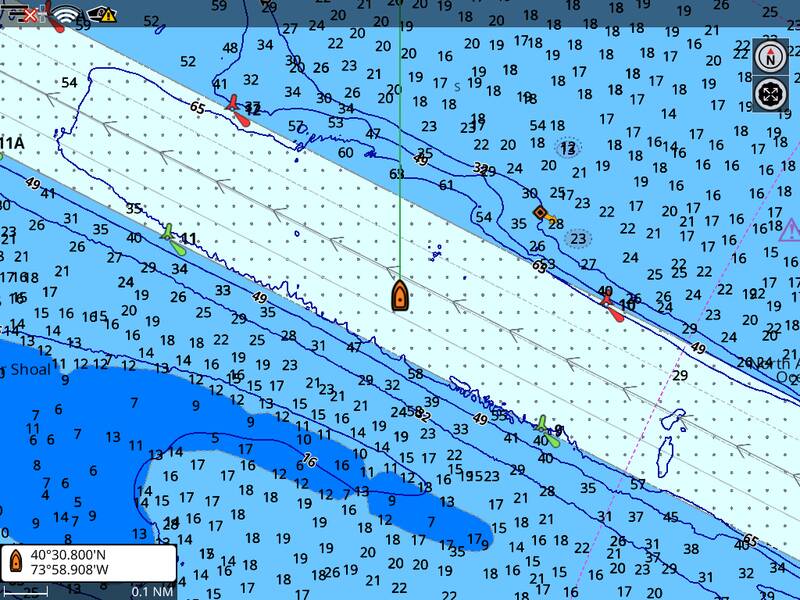

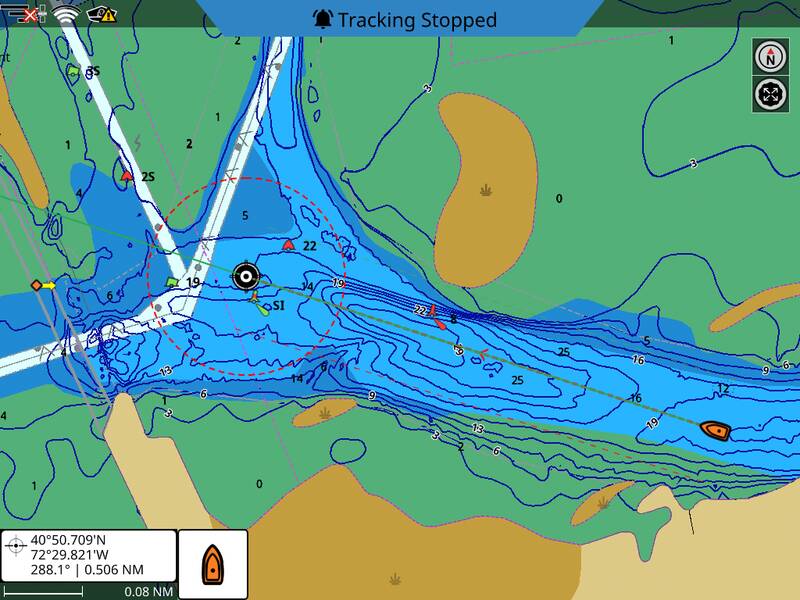

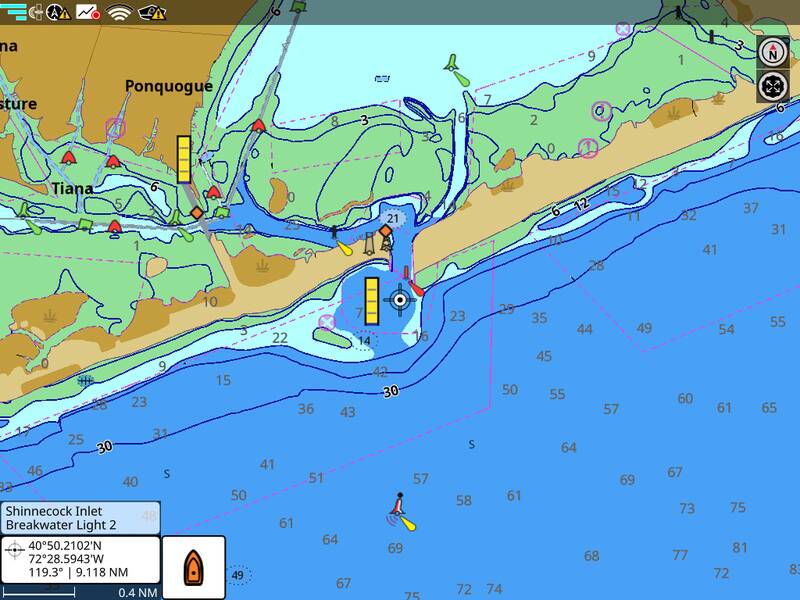

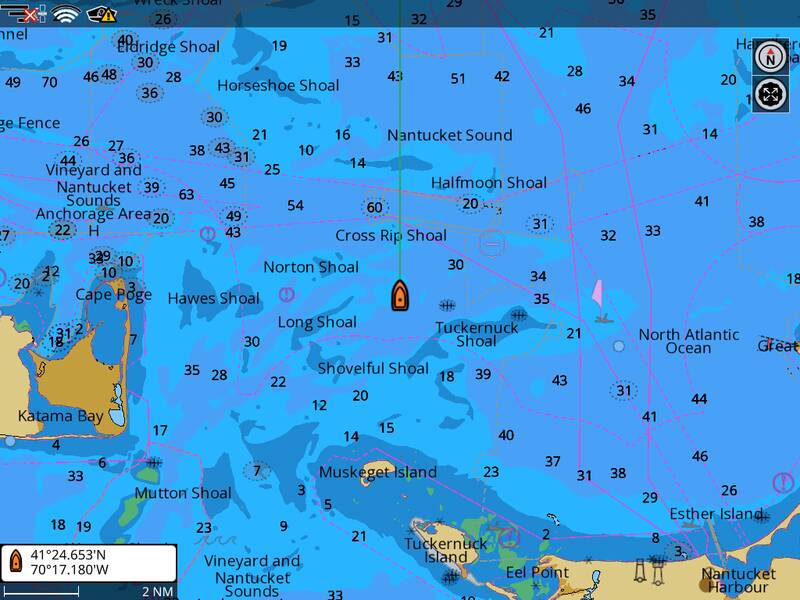

The NavPro 900 MFD offers optional high-resolution WI-FI radar that makes it easy to install and rig SI-TEX’s 4 Kilowatt, 24-inch compact radome on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-Newtonmeter range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars. Overlaying radar targets onto the feature-rich Polaris Charts provides navigators with enhanced situational awareness and safety, even in the most challenging conditions.

  • 9” Hi-Res. Hybrid Touch Screen Display

  • Innovative new Yoke & Swivel mount

  • NMEA-0183 & NMEA2000 Interfacing

  • WIFI Interface

  • Automatic Software Updates when in WIFI Coverage

  • Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.

  • Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.

  • Optional dedicated Remote Control Available

  • Designed for easy flush mount without any special kit needed

  • New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version)

  • CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart.

  • Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer interconnect

  • Adapters available to allow the unit to be installed on older non-CHIRP transducers.

  • Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna

  • New User interface makes the unit very easy to operate and navigate with

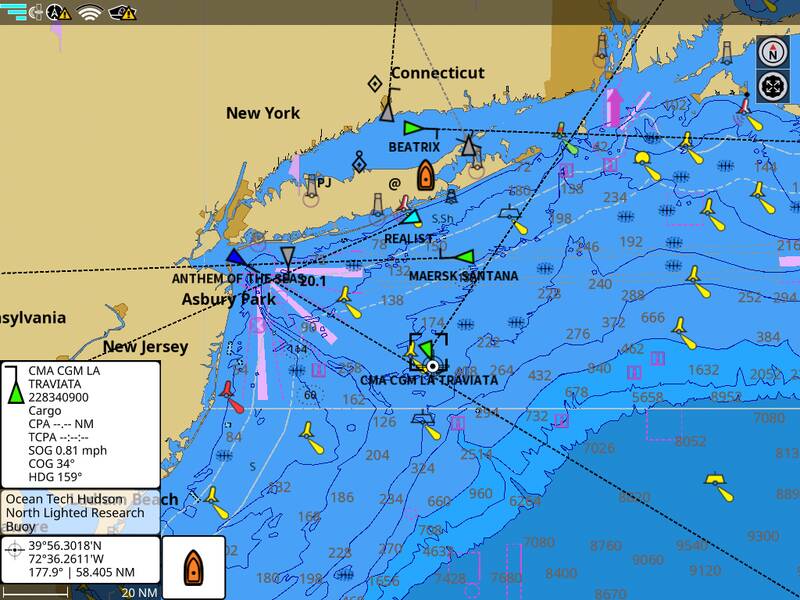

  • Full AIS Integration when interfaced to an AIS Unit

SPECIFICATIONS

  • LCD Display Size 9.0”

  • Display Brightness 1,100 NITS

  • Display Resolution 800x480

  • Touch Screen – Yes, Capacitive Multi-Touch

  • Keyboard Backlight – Yes

  • Operating Voltage 10 to 35 VDC

  • GPS Receiver – Built-In High Resolution 18Hz 72 Channel GPS/GLONASS External

  • GPS – Yes, optional via 6 pin Connector

  • Network Connections – NMEA-2000 (Optional Cable Required)

  • Dual NMEA-0183 Input/Output Ports

  • WIFI Connection – Yes

  • Bluetooth Connection – Yes

  • IPX6 Waterproof Rating

  • Operating Temperature range -10’C to +60’C

  • Dimensions – 10.9” Wide x 6.8” High x 3.7” Deep 2 Year Warranty

INCLUDED IN THE PACKAGE:

  • NavPro 900 Display Unit

  • Polaris USA Chart Card

  • Mounting Bracket

  • Mounting Screws

  • Combination Power Data Cord

  • Sun Cover

  • Installation & Operation manual

$2137.99
Only 4 left in stock - order soon
