Sierra 3-Position Magneto Ignition Switch, Push-to-Choke • MP41070-2

Sierra's Polyester Ignition Switch is impact- and corrosion-resistant and fits a standard 7/8"dia. hole. The six color-coded wire leads match Mercury Marine factory color codes for easy installation. This three-position magneto switch provides Off-Run-Start with push-to-choke. Includes two keys and different key codes for added security.

• Maximum corrosion protection eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• Three-position magneto switch
• Push-to-choke
• Interchangeable with Mercury Marine 87-17009A2, 87-17009A5

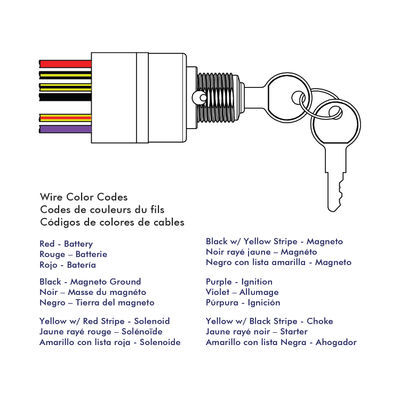

• Colors on switch wires match factory color codes

• Material: Marine-grade glass-filled polyester
• Length: Short, 5/8" maximum panel thickness
• Hole Size: 7/8"
• Terminal Type: Six color-coded wire leads/potted
• Back Up Nut: Not required
• Face Nut: Hex black plastic
• Choke: Push-to-choke
• Positions: Off-Run-Start

• Ignition: 15A @ 12V DC
• Solenoid: 30A @ 12V DC
• Choke: 7A @ 12V DC
