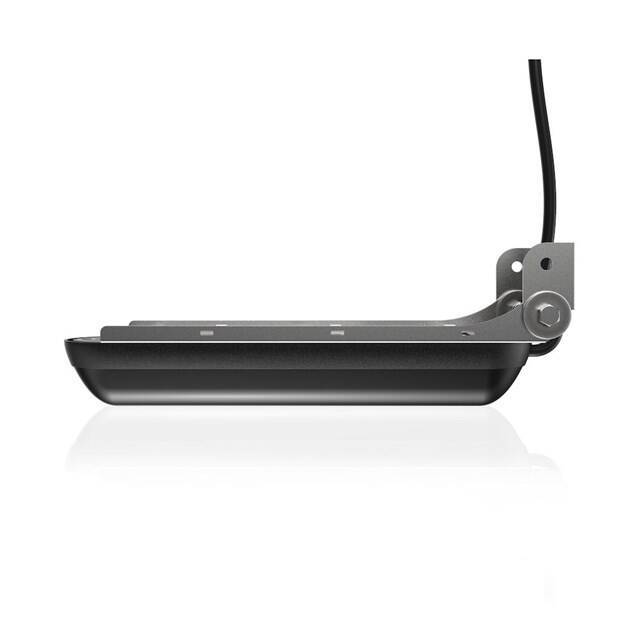

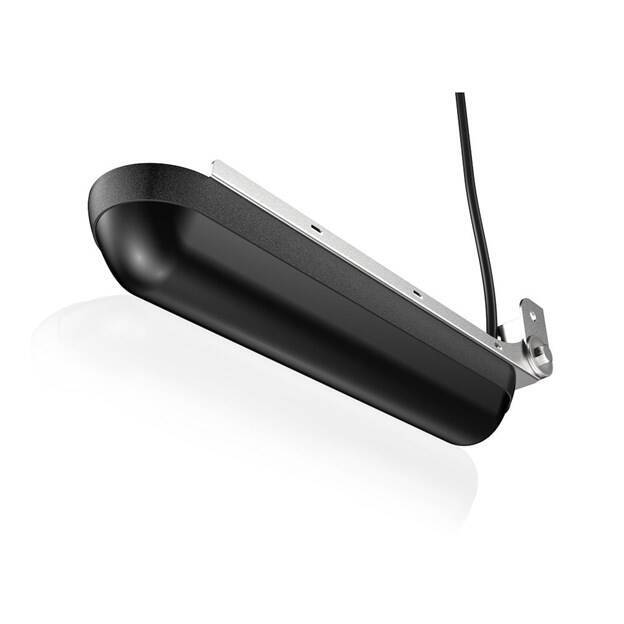

Simrad Active Imaging 3-in-1 Transducer • 000-14489-001

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

---

• Mounting Location: Transom Mount
• Number Of Pins: 9 Pin
• Depth: 1000 Feet Traditional/ 300 Feet DownScan/ 300 Feet SideScan
• Power Rating: 600 Watt
• Frequency Range: 83/200 kHz Medium/ High CHIRP And 455/800 kHz CHIRP Sidescan/ Down Scan Imaging 3-In-1 Sonar
• Supported Angle: 22 To 52 Degree Beam Angle
• Cable Length: 25 Feet
• More Refined Detail And Better Range Than Any Other Imaging Technology
• Active Imaging 3-In-1 Transducer With CHIRP, SideScan And DownScan
• Easier Target Identification With FishReveal ™ Smart Target View
• Supports Medium And High CHIRP
• Compatible With Simrad NSS Evo3 And GO Series Displays
• Limited 2 Year Warranty
