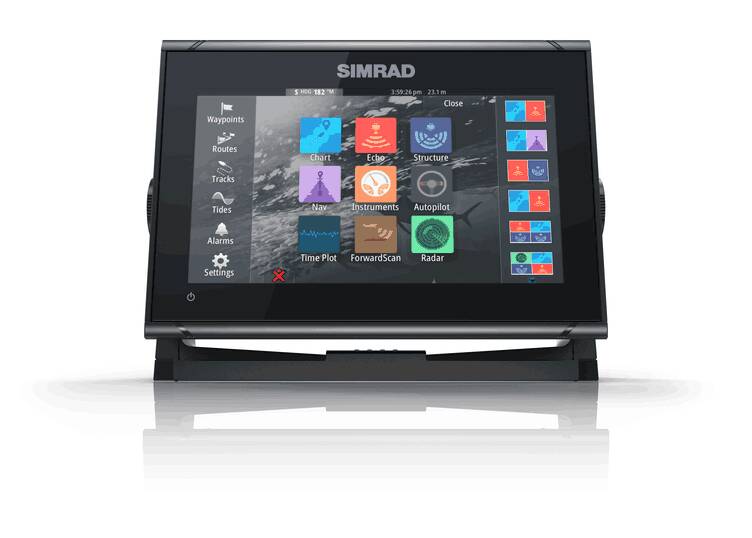

Simrad GO9 XSE with HDI Transducer and C-MAP Discover Chart • 000-16293-001

Simrad GO series displays are designed to help you make the most of your time on the water and are a perfect addition to sportboats, dayboats, and center-consoles. Behind every sunlight-viewable GO series touchscreen lies a built-in GPS receiver, echosounder, wireless connectivity, and industry standard NMEA 2000 networking. Navigate, connect with mobile devices, control accessories like your on-board sound system, and choose from an array of built-in sonar features. Radar capability—available on the GO7 and above—offers added safety and fishfinding functionality. Experience enhanced autopilot functionality with SteadySteer (compatible with RPU drive pumps) and integrate with an expanded range of 3rd party technologies - CZone digital switching, Mercury Smart Tow for surf and wakeboarding, control lighting effects with an ITC Lighting control bar, and Honda ECO mode engine information. The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customize your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and easily assign meaningful names and symbols that make them quick to find when you are planning your next trip. Every GO series display is a full-featured chartplotter with a built-in GPS receiver. GO displays offer compatibility with a wide range of optional charts from C-MAP, Navionics and more. You can even leverage advanced chart-specific features like C-MAP Easy Routing and Navionics Autorouting to make planning your next trip on the water as easy as planning a trip in the car.

---

Top 5 Features for Coastal Cruising and Sportfishing

• Easy to use, High brightness 9” tablet style touchscreen

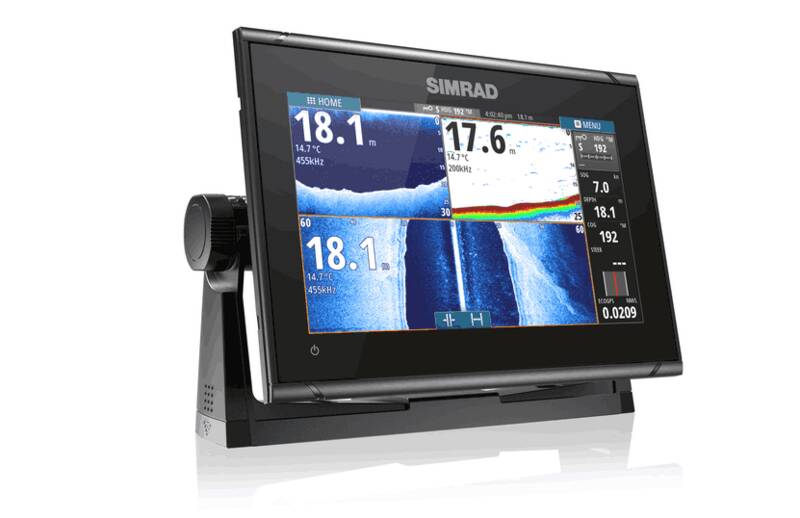

• Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan, and Downscan images

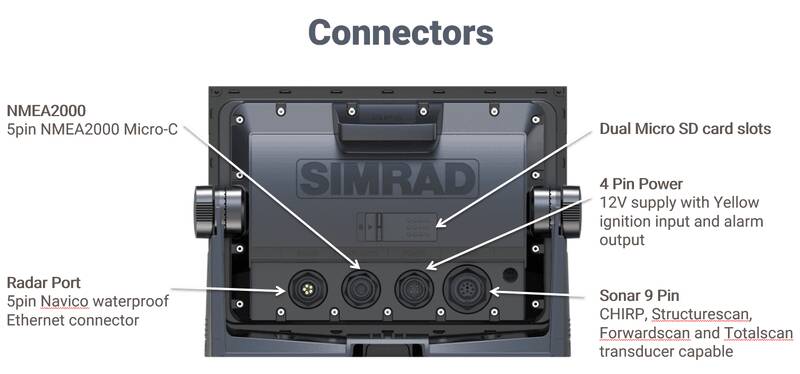

• Radar port for connection to a Simrad solid-state radar
• Direct Audio, Autopilot, communication, and engine connection and control over NMEA2000
• Built-in WiFi for mobile device mirroring and internet downloads of charting and software

Key Features

• Easy-to-use multi-touch software
• Safely and easily navigate using your favorite cartography (Insight, Navionics, CMAP)
• Determine depth, bottom type and find fish using one of the many echosounder technology options
• Quick and simple control of entertainment systems connected to NMEA2000
• Vessel circuit control when connected to a C-zone digital switching system
• View and monitor engine data while underway
• Low Profile Glass dash styling
• Super bright widescreen display
• Built-in Wi-Fi connectivity
• Software update notifications and downloads when connected to the internet
• Screen mirroring when connected to a mobile device
• Built-in 10 Hz GPS antenna
• Dual Micro SD card slot
• Built-in echosounder (Broadband & Chirp)
• Built-in DownScan and Sidescan Imaging (transducer required)
• Built-in Forwardscan Imaging (transducer required)
• Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners
• Operable with OP40/OP50 Remote
• Advanced NMEA2000 networking
• C-MAP DISCOVER charts

---

• Screen Size: 9 Inch
• Display Type: LCD
• Mounting Type: Bracket Mount/ Dash Mount/ Flush Mount
• With Transducer: Yes
• Resolution: 800 X 480 Pixels
• Interface: Multi-Touch
• Waterproof: IPX6/ IPX7 Rating Waterproof
• Sensor Compatibility: NMEA 2000 Compatible
• Marine: Yes
• 2 Year Limited Warranty
