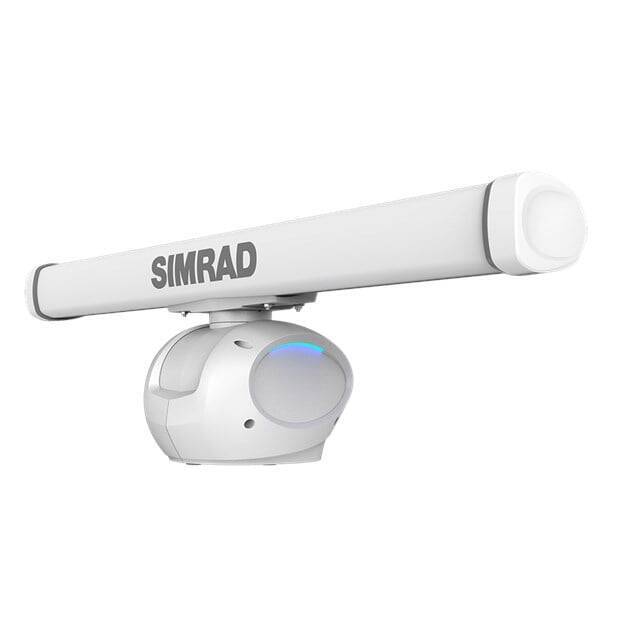

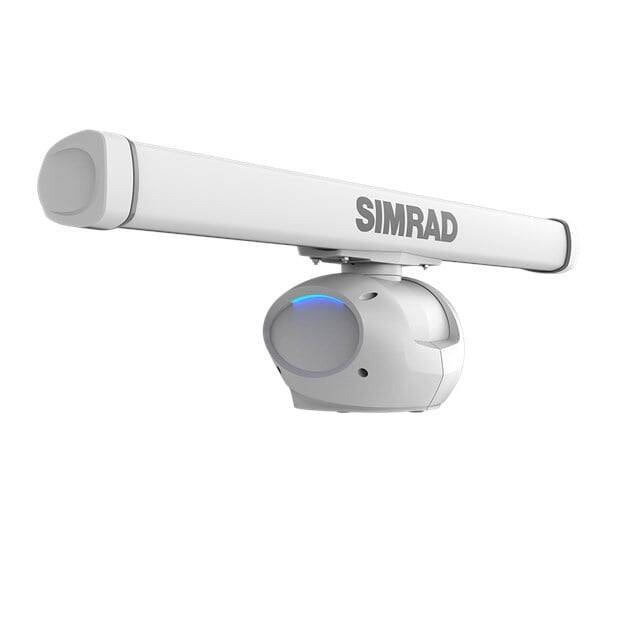

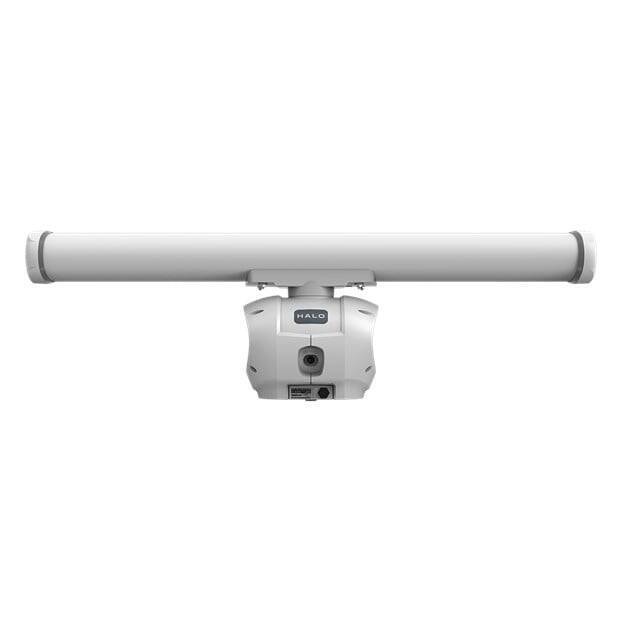

Simrad HALO 2004 Open Array Radar • 000-15759-001

Benefit from safer navigation and unmatched ease of use with the new HALO 2000 Open Array radar. Advanced Pulse Compression technology allows you to detect birds, hazards and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind. The HALO 2000 and 3000 array radars offer a premium experience on the water. An impressive 50 Watt of power: equivalent to a 12 Kilowatt magnetron radar: delivers an unrivalled combination of short- and long-range coverage that enables you to see targets from six meters (20 Feet) out to 72 (and 96) nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO array series not only increase situational awareness and collision avoidance, but also offer higher-resolution target detection you won’t find in lower-powered radars.

---

• Radar Type: Open Array
• Distance Range Limit: 72 Nautical Miles
• Size: 48 Inch Array
• Power Output: 50 Watt
• Beam Width: 2.4 Degree Horizontal/ 25 Degree Vertical
• Color: White
• Range Scale: 3/8 To 72 Nautical Miles
• Near Range Limit: 3/8 Nautical Miles
• Rotation Speed: 16 To 48 RPM
• Dimension: 12.76 Inch Length X 13.35 Inch Width X 16.81 Inch Height
• Waterproof Rating: IPX6 Rating Waterproof
• Includes: Power And Ethernet Cable/ Pedestal

---

• 50 Watt Power For Longer Range And Higher-Resolution Target Detection
• Advanced Pulse Compression Technology With Beam Sharpening
• Simultaneous Dual Range Operation
• Easy Operation With Harbor, Offshore, Weather, And Bird Modes
• Track Up To 50 Targets With ZoneTrack
• VelocityTrack Doppler Technology For Collision Avoidance
• Dangerous Target Alerts For Radar And AIS Targets
• Ready Instantly From Standby, And In 16 To 25 Second From Power-On
• Limited 2 Year Warranty
