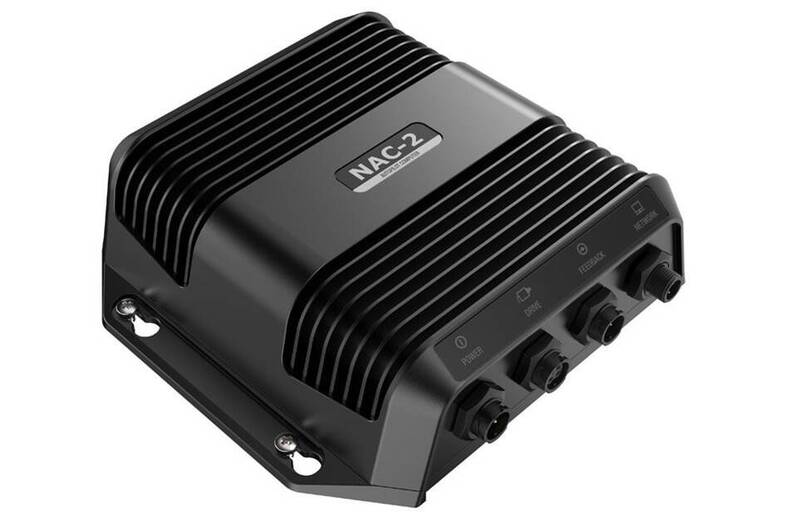

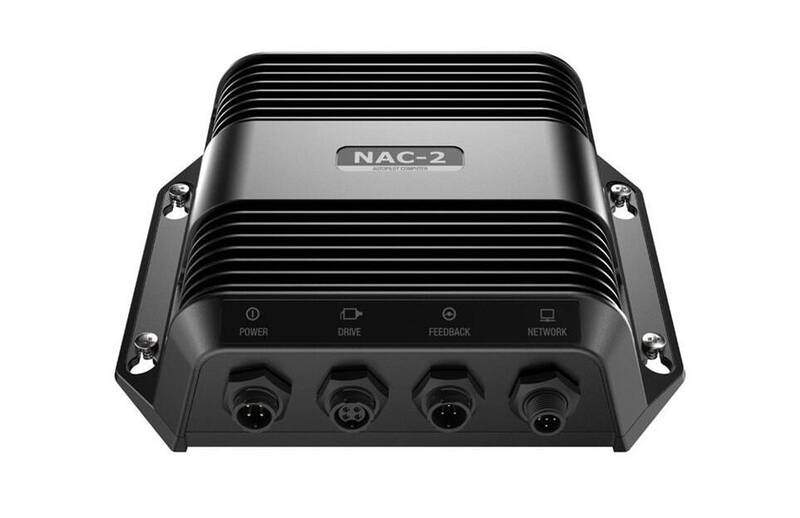

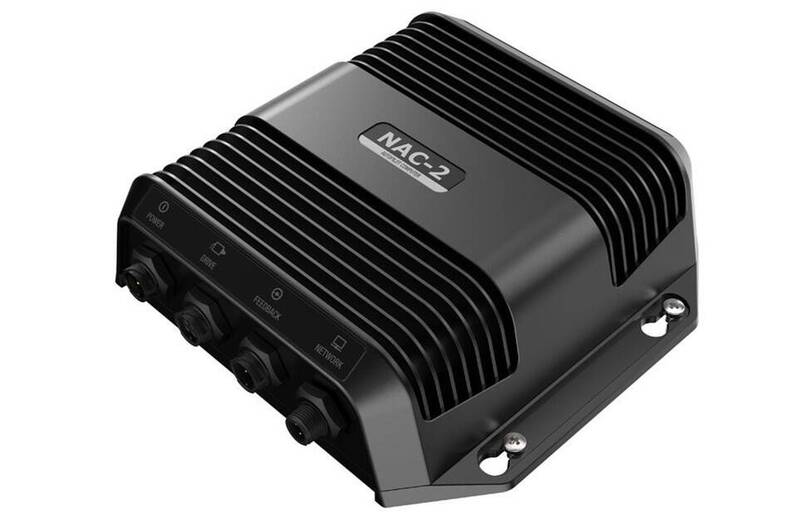

Simrad NAC-2 Autopilot Computer • 000-13249-001

Plug-and-play connectors facilitate easy installation, minimizing the wiring necessary to install your autopilot system. Industry-standard NMEA 2000® networking offers simple connectivity to heading sensors, rudder feedback units, autopilot controllers, and multifunction displays located anywhere on board. The NAC-2 Autopilot Computer is recommended for boats up to 10 Meters (35 Feet) in length. It has been designed to reliably operate low-current drive pumps including the Simrad RPU80, mechanical drives such as the Simrad SD10, hydraulic linear drives such as the HLD350, and solenoid valves. Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a separate rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats with planning hulls. This reduces overall autopilot system cost and complexity, and is ideal where a feedback unit is impractical due to mechanical constraints. The NAC-2 also supports SimNet or NMEA 2000® connected Simrad RF25 feedback units, and resistive rudder feedback sensors, for vessels that do require a physical rudder feedback sensor.

---

• Compatibility: Boats Upto 10 Meter Length And Suitable Low Current Hydraulic Steering Pump/ Mechanical Drive Unit
• Reliable Autopilot Performance Based On Continuum Steering Technology
• Recommended For Boats Up To 10 Meter In Length
• Compatible With Low-Current Drive Pumps, Mechanical Drives, Hydraulic Linear Drives, And Solenoid Valves
• Virtual Rudder Feedback For Simplified Installation Aboard Outboard And Sterndrive Boats
• Supports Simrad RF25 Rudder Feedback Units

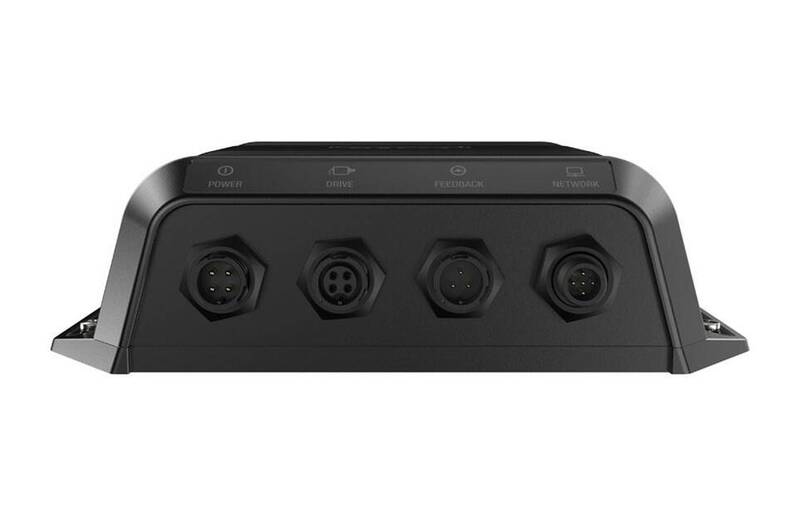

• Plug-And-Play Connectors For Easy Installation
• NMEA 2000 Connectivity To Heading Sensors, Rudder Feedbacks, Dedicated Autopilot Controllers, And Multifunction Displays
• Limited 2 Year Warranty
