Simrad NSS12 evo3S, C-MAP, HALO20+ Bundle • 000-15555-002

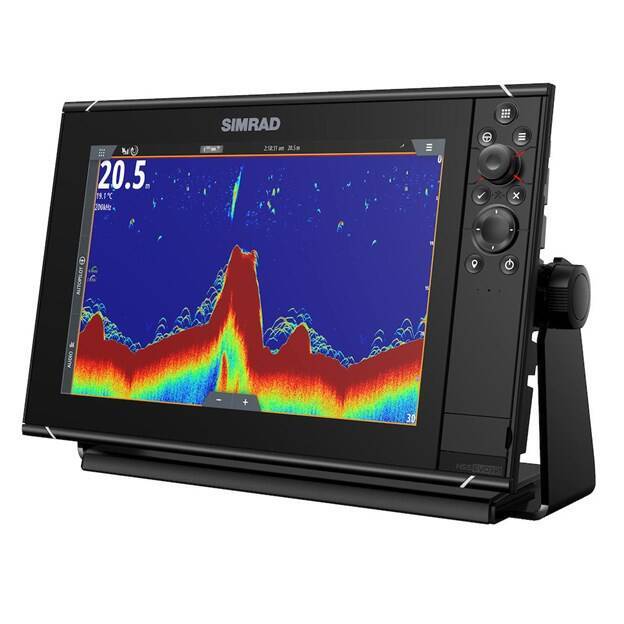

NSS12 evo3S features a high-definition 12-inch display that delivers big-picture views of charts, radar, sonar, and more under all conditions. Featuring a iMX 8 high-performance processor, with superfast response times, you have control of an unprecedented level of built-in functionality, ultra-wide viewing angles, and reliable touch or keypad operation. Includes preloaded C-MAP® charts and HALO20+ radar.

• iMX 8 Integrated processor for superior performance
• 12-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
• Switch seamlessly between touchscreen and keypad control
• Built in high-performance echosounder with 1kW CHIRP
• Built-in GPS receiver and wireless connectivity
• Control Simrad sonar, radar, autopilot, and other accessories
• Industry-standard connectivity to engines, sound system, and more
• TripIntel™ trip planning and support for automatic routing
• Choose low-profile flush mounting or convenient bracket mounting
• Download the Simrad App and connect with smartphones, tablets, and internet hotspots
• Preloaded C-MAP® US Enhanced charts provide detailed mapping with 1-foot contours, easy routing and C-MAP® Reveal data in Florida

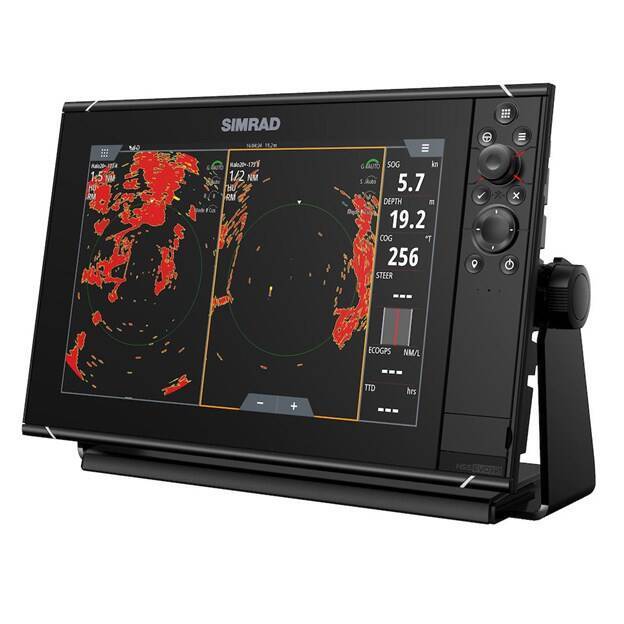

• Includes HALO™ Pulse Compression radar
• Supports SteadySteer™, an autopilot performance enhancement for NAC-2 and NAC-3 autopilot computers fitted with RPU drive pumps
• Compatible with a CZone® digital switching device, enabling control from the MFD via the NMEA 2000 network
• Mercury® Smart Tow® enabled for wake shaping
• ITC Lighting systems can be controlled with an ITC Lighting control bar
• Supports Honda ECO mode engine information
• Plan Position Indicator (PPI) and AIS enhanced interface capabilities
• Supports the SiriusXM® WM-4 satellite Weather module and Fish Mapping™ service (requires a subscription, North America only)

• Screen Size: 12 Inch
• Display Type: IPS
• Mounting Type: Bracket Mount
• With Transducer: No
• Resolution: 1280 X 800 Pixels
• Interface: Keypad/ Touchscreen
• Dimensions: 13.84 Inch Length X 3.82 Inch Depth X 8.87 Inch Height
• Waterproof: IPX6 And IPX7 Rating Waterproof
• Sensor Compatibility: NMEA 0813 And NMEA 2000 Compatible
• 2 Year Limited Warranty
