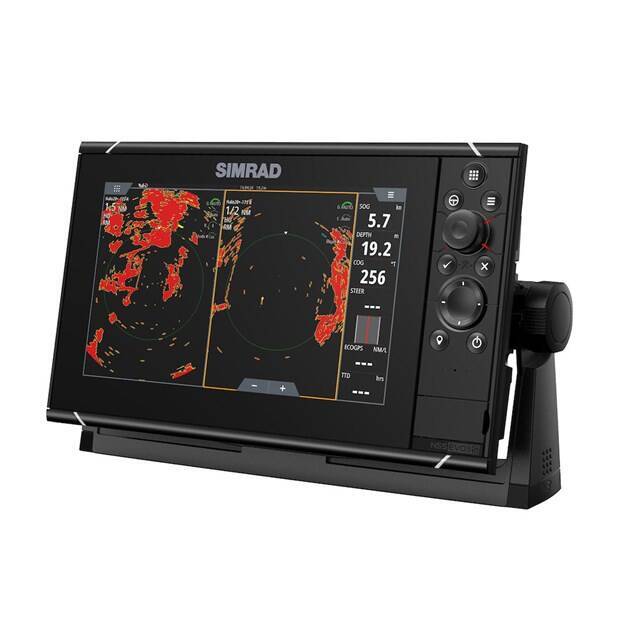

Simrad NSS9 evo3S with C-MAP US Enhanced Charts & HALO20+ Radar • 000-15554-001

Simrad NSS9 Evo3S Multi-Function Display and Halo20+ Radar Bundle With 9" Touchscreen, Keypad Controls, CHIRP Sonar, and C-Map Charts NSS9 evo3S features a high-definition 9-inch display that delivers big-picture views of charts, radar, sonar, and more under all conditions. Featuring the new iMX 8 high-performance processor, with superfast response times, you have control of an unprecedented level of built-in functionality, ultra-wide viewing angles, and reliable touch or keypad operation. Includes preloaded C-MAP charts. HALO20+ radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you're navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings. VelocityTrack technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there's no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.

---

• Screen Size: 9 Inch
• Display Type: IPS
• Mounting Type: Bracket Mount/ Dash Mount/ Flush Mount
• With Transducer: No
• Resolution: 1280 X 720 Pixels
• Interface: Keypad/ Touchscreen
• Dimensions: 11.3 Inch Length x 3-1/2 Inch Width x 6.55 Inch Height
• Waterproof: IPX6/ IPX7 Rating Waterproof
• Sensor Compatibility: NMEA 0183 Compatible

---

• iMX 8 Integrated six-core processor for superior performance
• 9-inch SolarMAX IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
• Switch seamlessly between touchscreen and keypad control
• Built in high-performance echosounder with 1kW CHIRP, Built-in GPS receiver and wireless connectivity
• Control Simrad sonar, radar, autopilot, and other accessories
• Industry-standard connectivity to engines, sound system, and more
• Choose low-profile flush mounting or convenient bracket mounting
• Download the Simrad App and connect with smartphones, tablets, and internet hotspots
• Preloaded C-MAP US Enhanced charts provide detailed mapping with 1-foot contours, easy routing and C-MAP Reveal data in Florida
• Limited 2 Year Warranty

---

Includes:

• NSS9 Evo3S
• Halo 20+ Radar
• 10 Meter radar cable
• Suncover
• Powercord
• Gimbal bracket
• Dash mount kit
