Simrad S2009 Fish Finder • 000-12185-001

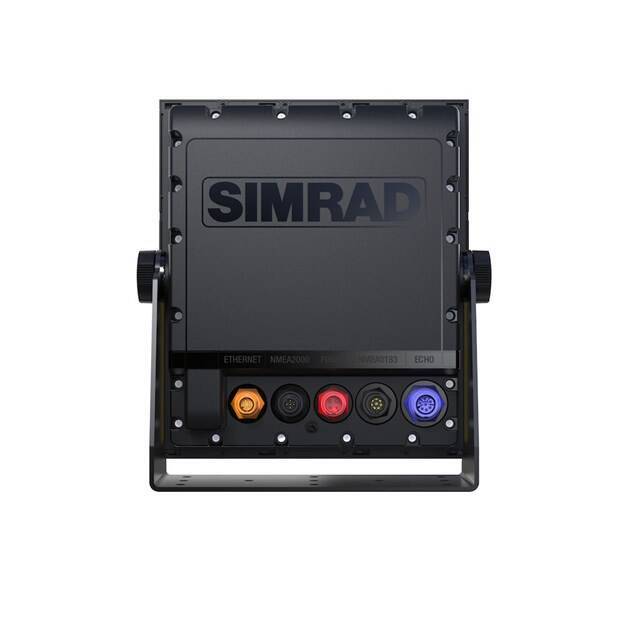

Integrated CHIRP Echosounder: S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types. 9 Inch Portrait Display: The S2009 maximizes screen size where limited mounting space is available, with a compact 9 Inch portrait display that’s perfect for center consoles. Its vertical layout shows the water column with a high level of detail, making it easy to distinguish individual fish arches and other key features. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009’s large buttons are suitable for use in rough seas, while traveling at speed, and with wet or gloved hands.

---

• Display Size: 9 Inch
• Display Resolution: 800 X 480 Pixels
• Overall Dimensions: 10.2 Inch Width X 8.8 Inch Height X 2.4 Inch Depth
• Mount Type: Bracket Mount Or Flush Mount
• With Transducer: Yes
• Used To: Dedicated Displays And Marking Waypoint Chart Plotter
• Interface: Keypad/ Rotary Knob
• Waterproof: IPX7 Rating Waterproof
• Sonar Compatibility: CHIRP Transducer
• Power Supply Voltage: 12 To 24 Volt
• Weight: 4.4 Pound
• Screen Brightness: 1200 cd/m2
• Viewing Angle: 110 X 160 Degree
• Fuse Rating: 3 Amp
• Operating Temperature Range: 5 To 131 Degree Fahrenheit
• Compass Safe: 25.6 Inch
• Cartography Included: No

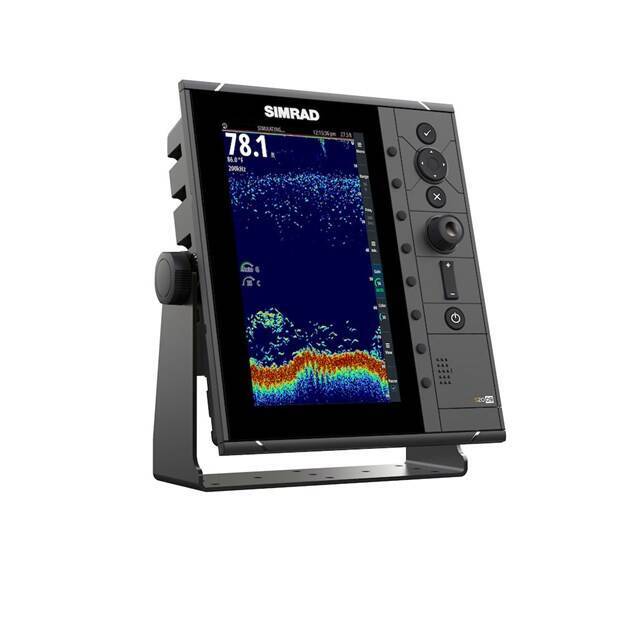

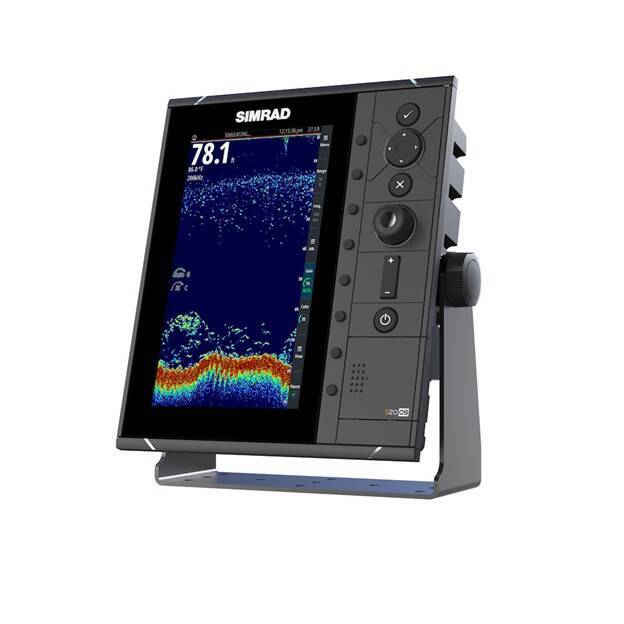

• Integrated 9 Inch Portrait Display
• High Brightness Ideal For Outside Installation
• High Depth Penetration And Ping Speed
• Simple Operation With 8 Direct-Access Menu Keys
• Customize Your View To Highlight Targets Of Interest
• Bracket Or Flush-Mount Installation
• Limited 2 Year Warranty

---

Included:

• S2009 Fishfinder
• Mounting Bracket w/ knobs
• Powercord
