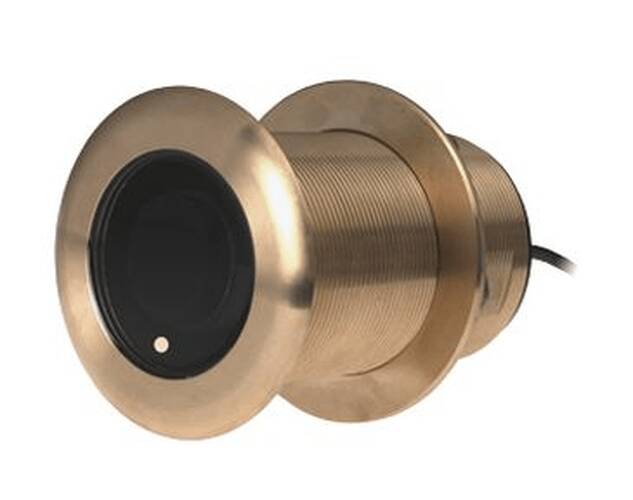

Simrad xSonic Airmar B75 Transducer • 000-16194-001

B75H (20 Degree) Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75M transducer delivers up to 50 Kilohertz of total bandwidth in just one installation. It shows amazing bottom detail in shallow and medium depths down to 274 Meter. Tilted Element™ transducers have the element fixed at a 20 Degree, 12 Degree or 0 Degree angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

---

• Mounting Location: Thru-Hull Mount
• Number Of Pins: 9 Pin
• Depth: 899 Feet
• Power Rating: 600 Watt
• Frequency Range: 80 To 130 kHz High Chirp frequency
• Supported Angle: 20 Degree Tilt/ 16 To 24 Degree Deadrise
• Cable Length: 33 Feet
• Depth And Fast-Response Water-Temperature Sensor
• 600 Watt With A Maximum Depth Performance To 274 Meter
• 24 Degree To 16 Degree Beamwidth
• Medium Frequency Delivers Better Shallow-Water Performance, Bottom Detail, And Deeper Performance Than A High-Frequency Band
• Low-Profile, Thru-Hull Housing Provides Good Resolution At Speed When Installed Properly
• Bronze Housing For Use On Stepped, Planning Or Displacement Hull
• Limited 2 Year Warranty
