Soundstream Rubicon Nano 2000W Class D Monoblock Marine Amplifier • MR12000D

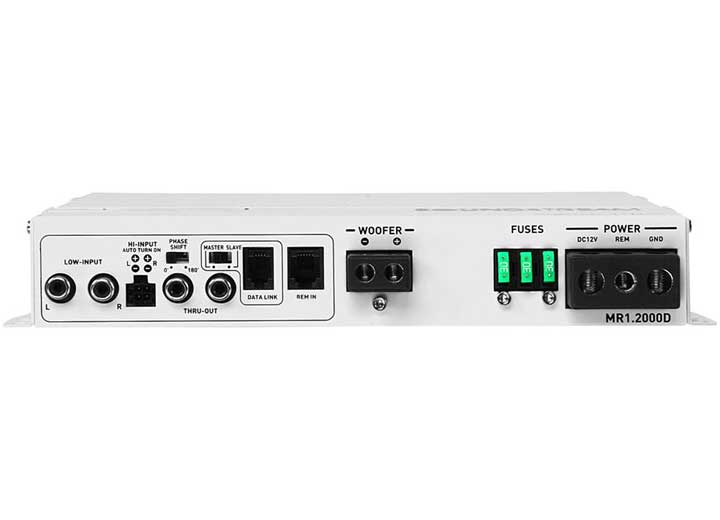

We"™ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you"™ll notice this amplifier"™s color; that"™s the coat and finish to help this marinized model work for Marine or Powersports applications. Rubicon Nano"™s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.

---

• Max Power: 2,000 Watts

• RMS Power @ 4Ω: 400W x 1

• RMS Power @ 2Ω: 600W x 1

• RMS Power @ 1Ω: 1,000W x 1

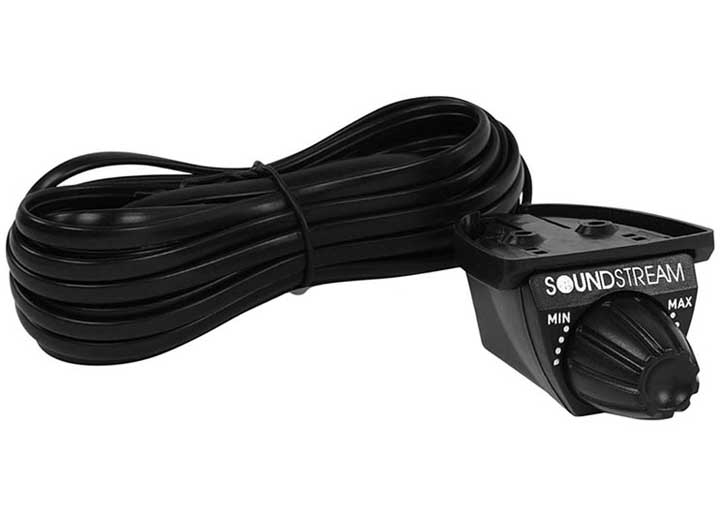

• Remote Gain Control: Included

• Low Pass Filter: 50Hz-500Hz

• Bass Boost: 0-12dB

• Bass Boost Frequency: 45Hz

• Subsonic Filter: 20Hz-50Hz

• Frequency Response: 20Hz-22KHz

• S/N: 104dB

• Input Sensitivity: 200Mv-6V

• THD: <0.1%

• Operation Voltage: 9V-16V DC

• Fuse Rating: 30A x 4

• Dimensions: 8.25"W x 2.75"H x10"L

• 1 Year Limited Warranty
