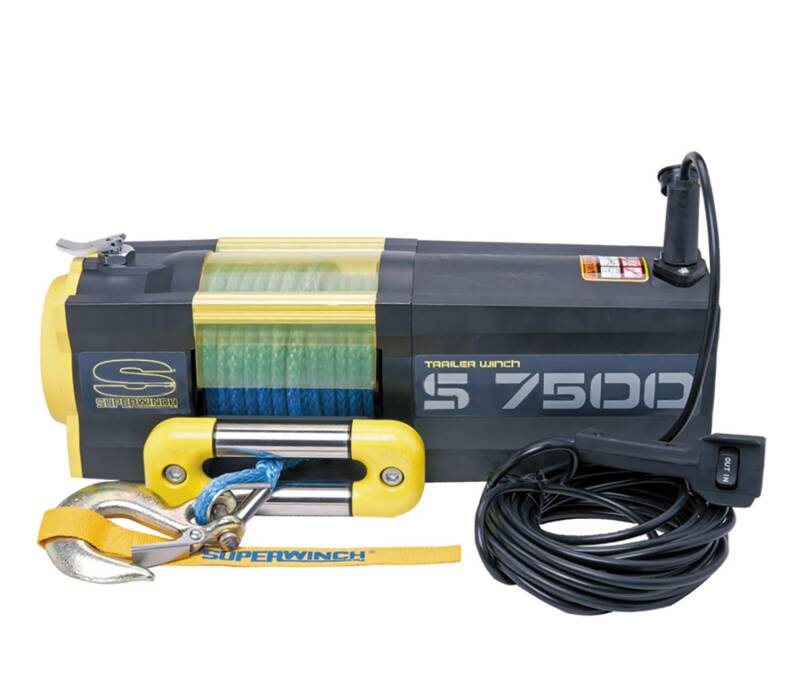

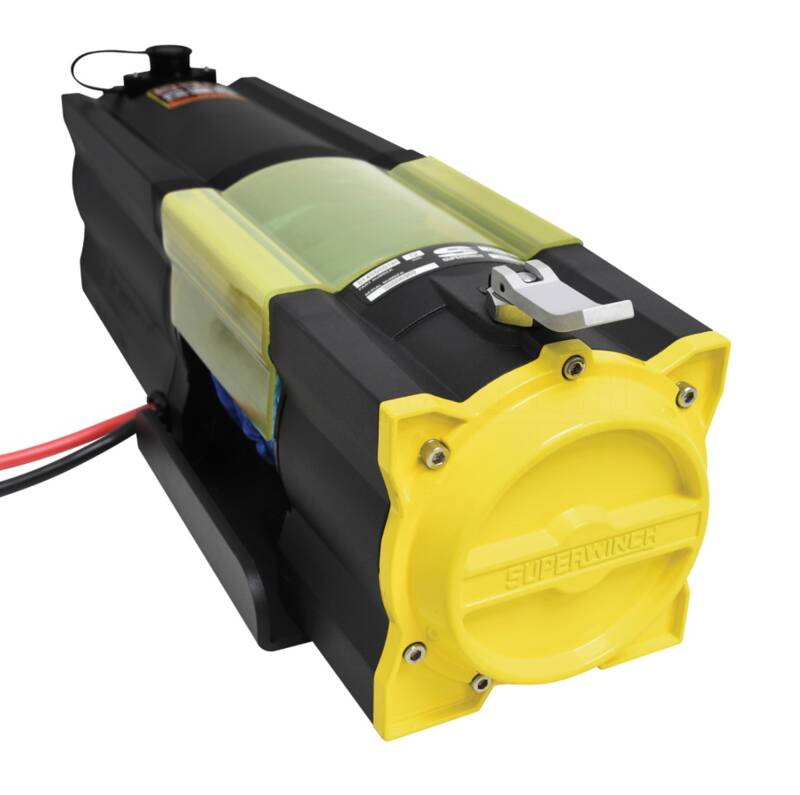

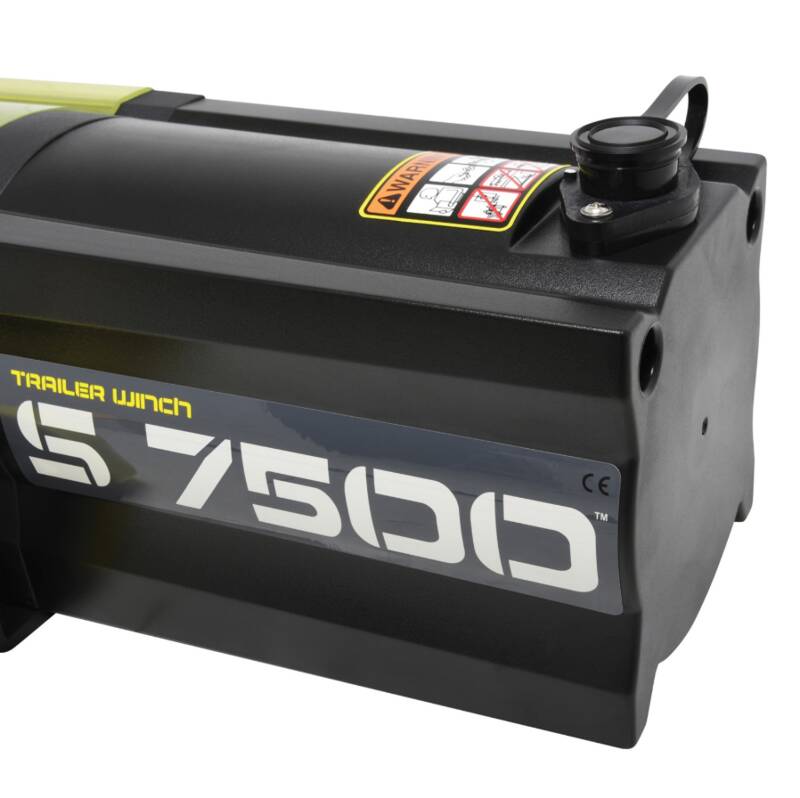

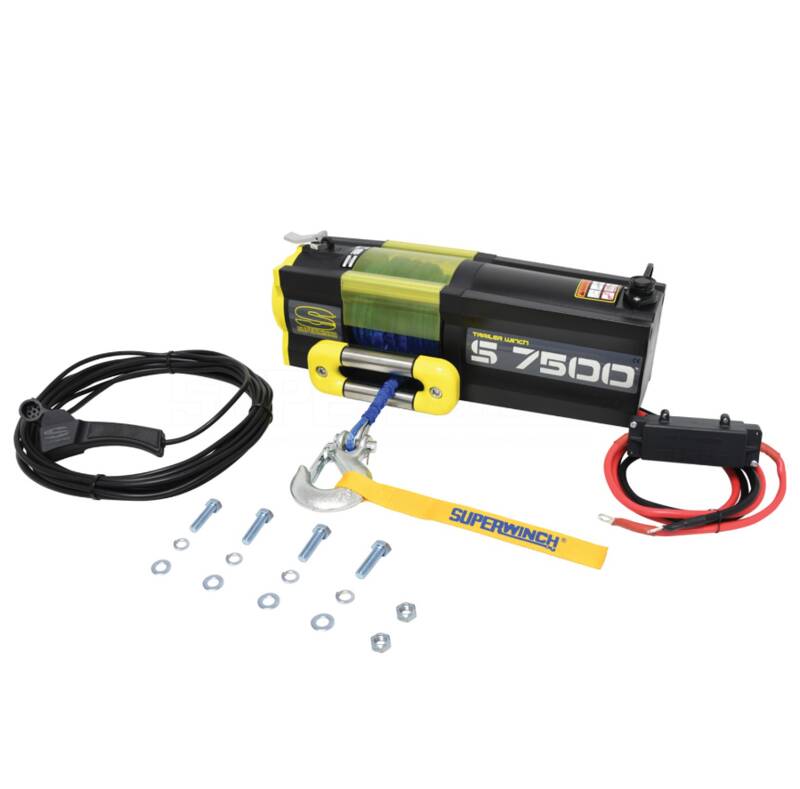

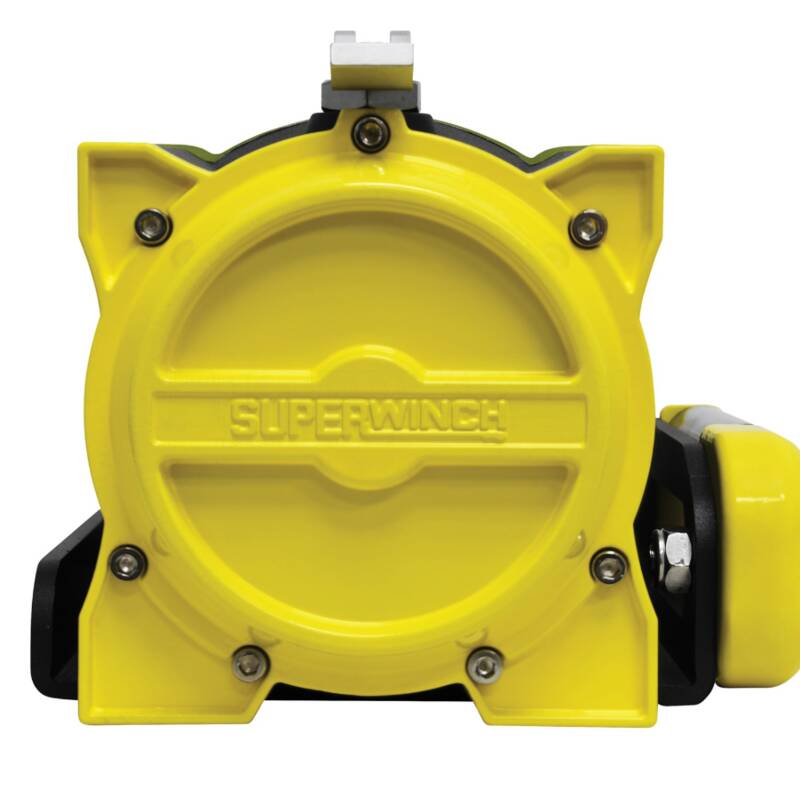

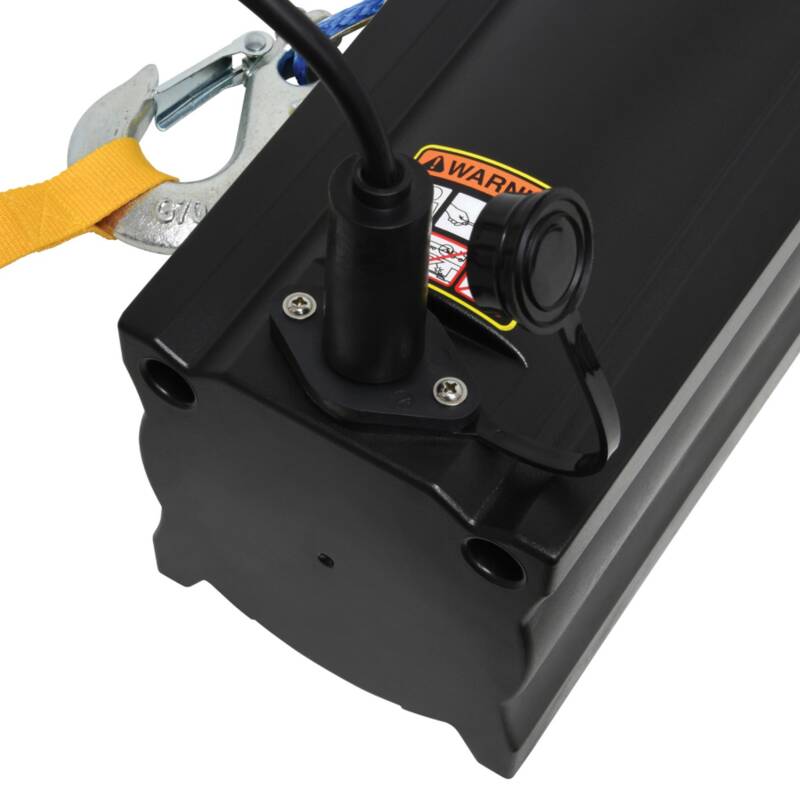

Superwinch S7500SR 12V Synthetic Rope Winch • 1475201
The S7500SR Winch continues Superwinch's dominance as the leader in trailer-specific winching. The Superwinch S7500SR easily pulls loads up to 7,500 lbs, powered by a stout 3.6 HP permanent-magnet motor and an all-steel 3-stage planetary gearbox. The S7500SR includes a safety-tinted protective cover for operator safety, and to protect the cable and drum. The machined aluminum free-spool lever can also be easily operated by foot.
12V DC 7,500 lbs rated line pull
3.6 HP permanent magnet motor provides dynamic braking
3-Stage planetary gearing with 249:1 ratio
Sealed solenoid

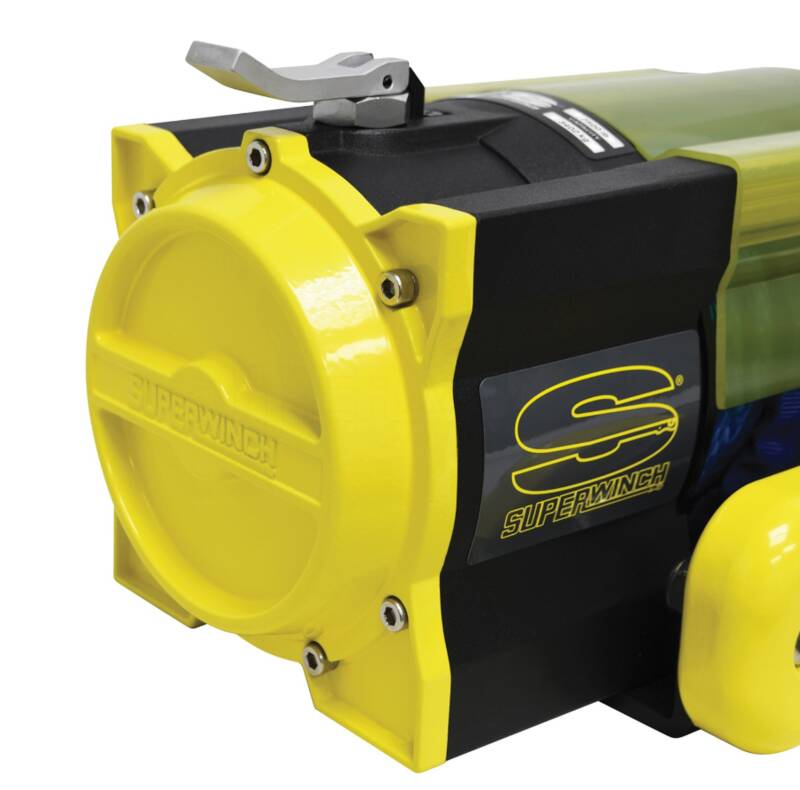

Lever style freespool allows hand or foot operation
Steel cut gears for better engagement and longevity

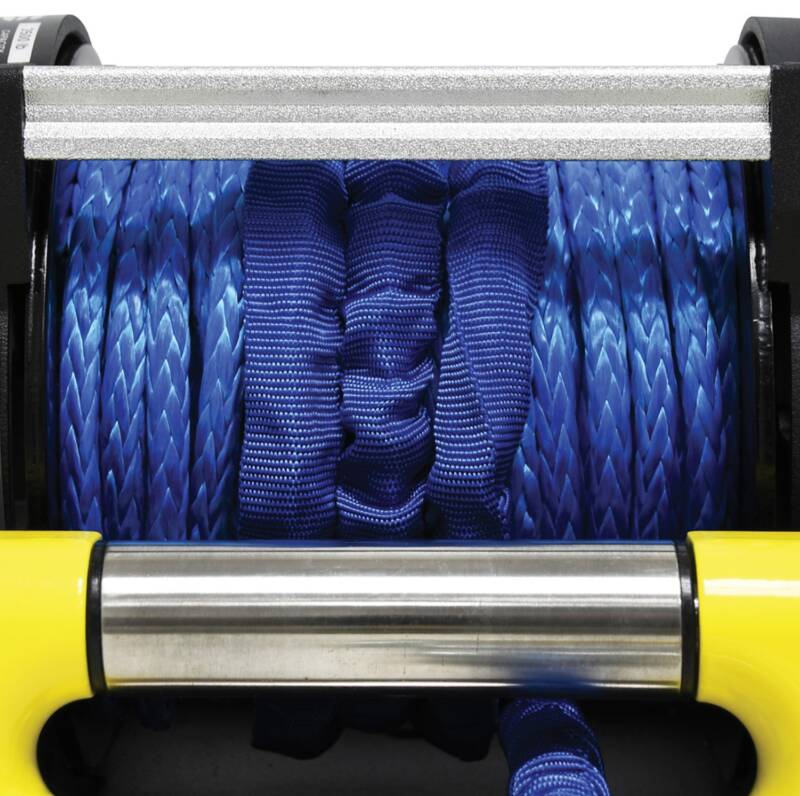

5/16 in x 54 ft synthetic rope
Automatic load holding brake
Stainless steel 2-way roller fairlead
Specs:
Brake: Mechanical, Automatic
Fairlead: 2-way Roller/Hawse hybrid
Gear Ratio: 249:1
Gearing: 3-Stage Planetary
Height: 9
- Width: 13
Length: 22
Weight: 40
Hook: Heavy-Duty, Clevis Pinned Latched
Installed Weight: 92 lbs (42 kg)
- Line Pull, 0 lbs: 80 Amps Motor Draw/19 FPM (5.8 MPM) Line Speed
Line Pull, 5,500 lbs: 410 Amps Motor Draw/2 FPM (0.6MPM) Line Speed
Motor: 3.6 HP Permanent Magnet
Rated Line Pull: 7,500 lbs (3401.9 kg)
Remote: 30.5 handheld
Rope: Synthetic 3/8in x 92ft (9.5mm x 28.04m)
Solenoid: Sealed S3 Solenoid
Warranty: 2 Year Limited
