Superwinch Terra 2500 12V Wire Rope Winch • 1125260

Product Details

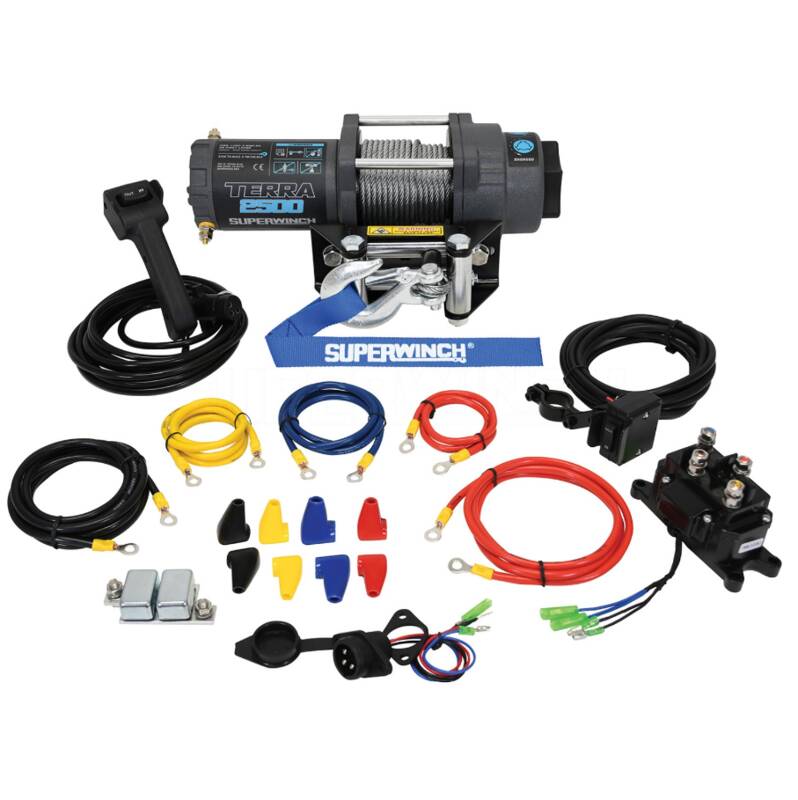

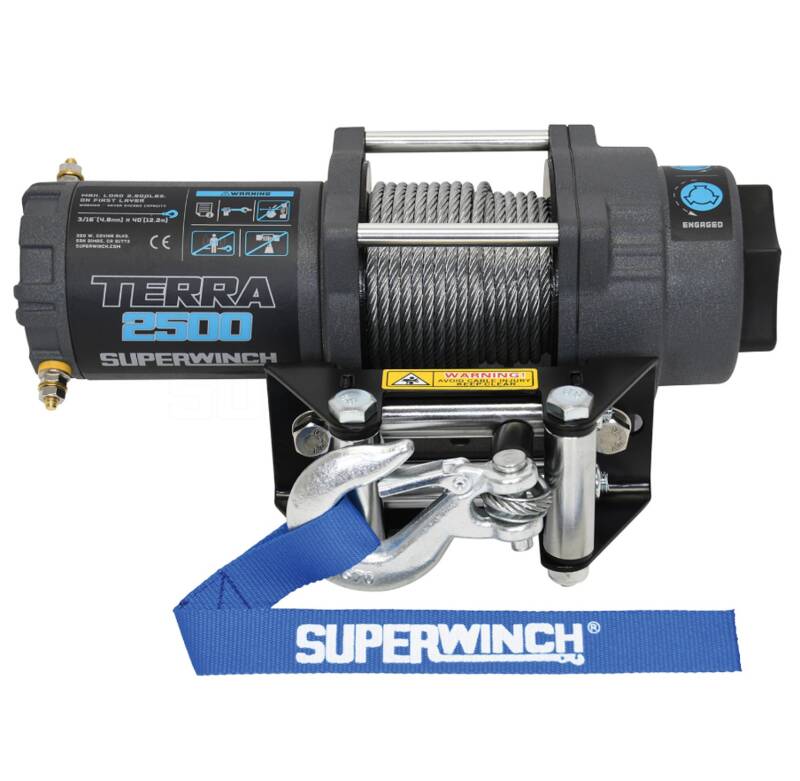

The Superwinch Terra 2500 is the standout performer in powersports ATV/UTV winching. It’s not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable steel cable. Designed with the toughest terrains in mind, this series of ATV and side by side winches, delivers a pull rating of 2,500 lbs. Features rugged all metal 3-stage planetary gear train construction.

Rated line pull of 2,500 lbs

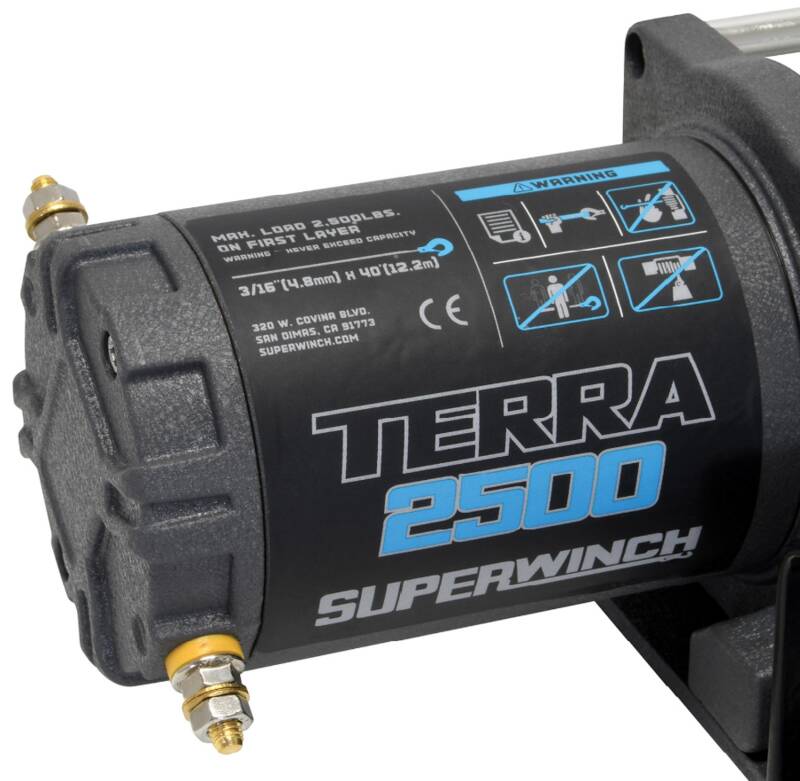

1.5 HP permanent magnetic motor
3-Stage planetary gearing with 138:1 ratio
Sealed solenoid with circuit breaker

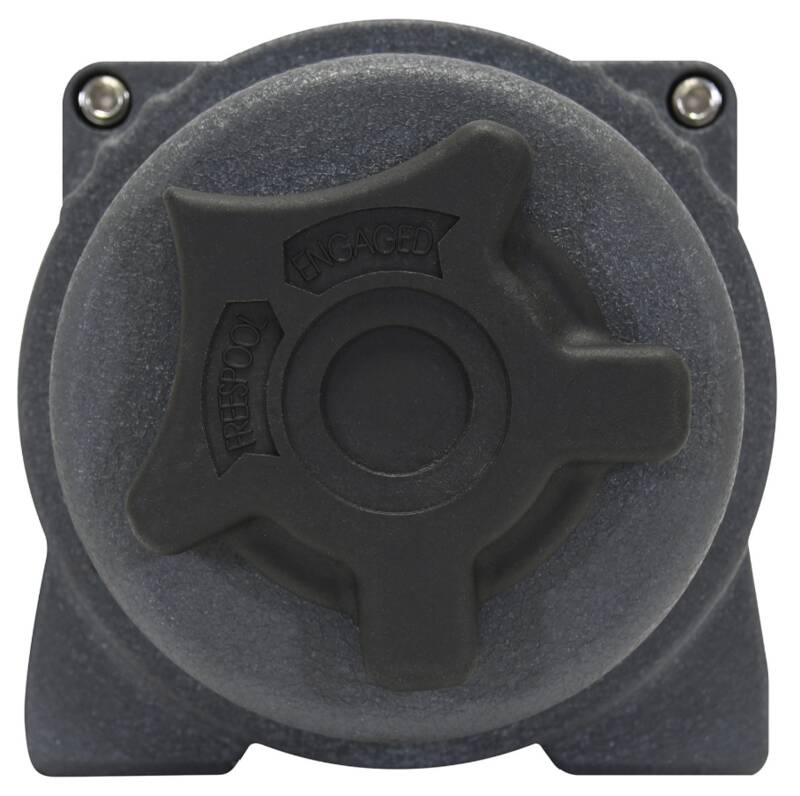

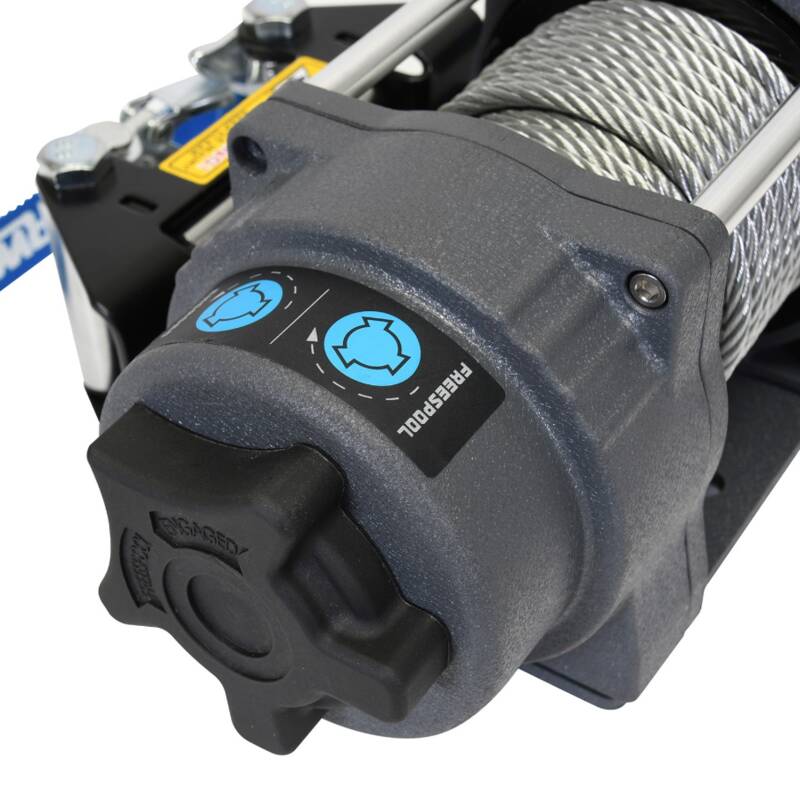

Easy to engage ergonomic freespool control knob

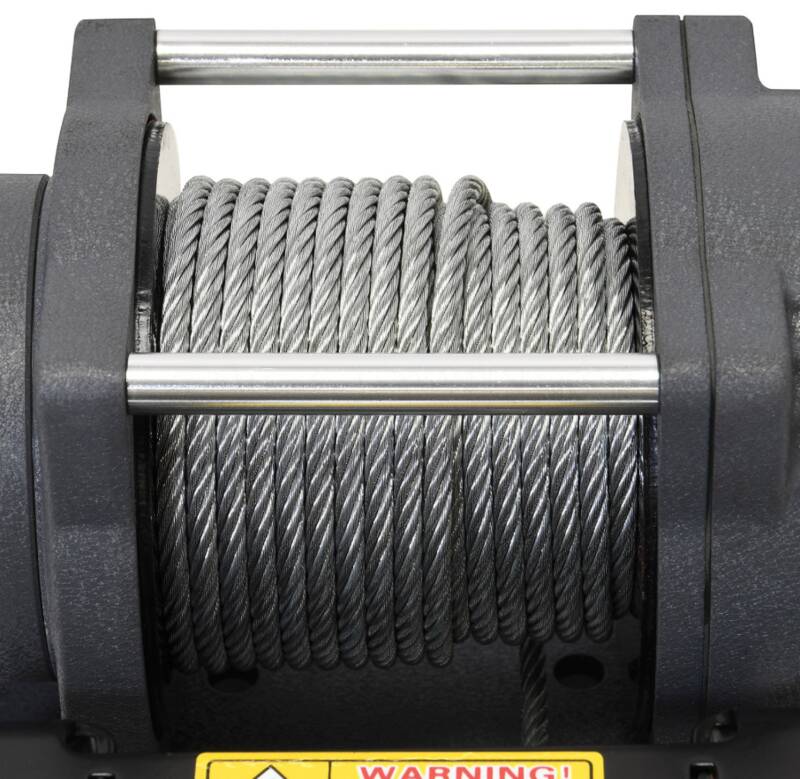

Wire rope measures 3/16in. x 40ft.
Heavy-duty, clevis pinned, latched hook
4-way roller fairlead

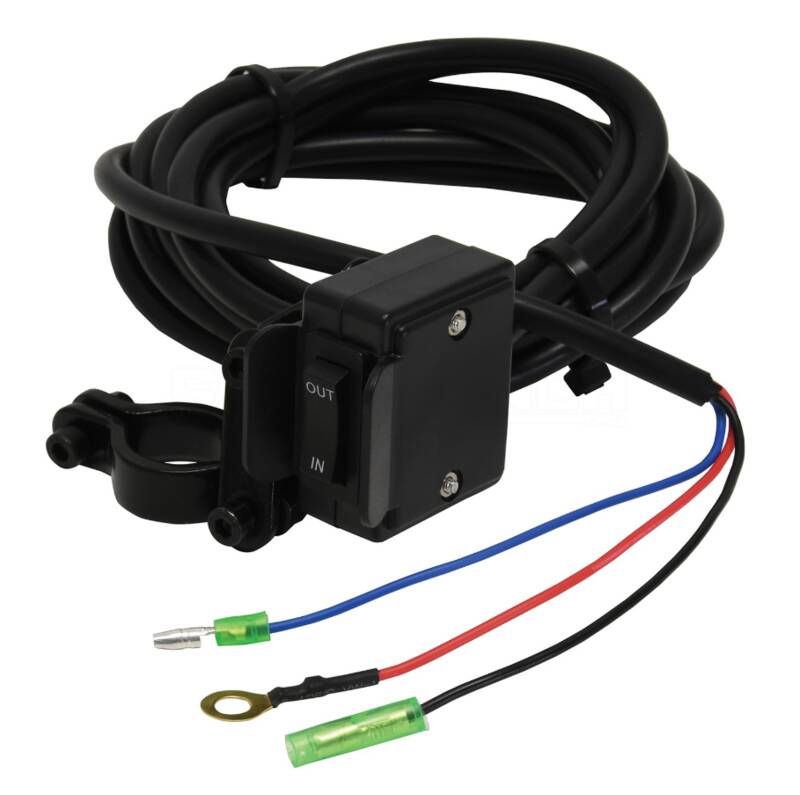

10ft. rugged handheld remote control with handlebar mounted rocker switch
Narrow drum allows easier mounting in tight spaces

Specs:

Brake: Automatic, 100% Load Holding

Clutch: Free-Spooling, Ergonomic Control

Fairlead: Heavy Duty 4-Way Roller

Gear Ratio: 138:1

Gearing: 3-Stage Planetary

Hook: Heavy-Duty, Clevis Pinned Latched

Motor: Sealed 1.5 HP Permanent Magnet

Mounting Bolt Pattern: 3.0in x 4.87in (76mm x 124mm)

Rated Line Pull: 2,500 lbs (1134.0 kg)

Remote: Sealed Hand-Held with 10ft cord

Rope: Steel Wire 3/16in x 40ft

Solenoid: Sealed Solenoid, Circuit Breaker Protected

Warranty: Limited Lifetime Mechanical, 3 Year Limited Electrical

$259.99
