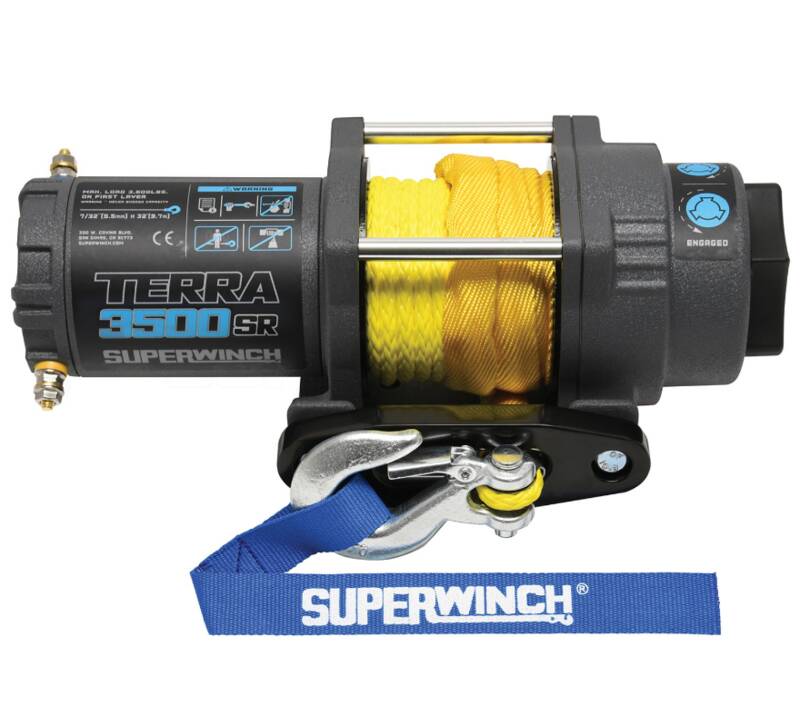

Superwinch Terra 3500SR 12V Synthetic Rope Winch No Reviews Yet • 1135270

The Superwinch Terra 3500SR is the standout performer in powersports ATV/UTV winching. It’s not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable synthetic rope. Terra 3500SR winches come stock with both a 10’ sealed handheld remote as well as a sealed handle bar mounted rocker switch. Features gears that are 2x as wide as the next competitor. This means far better engagement plus longer life.

• Rated line pull of 3,500 lbs
• 1.6 HP permanent magnetic motor
• 3-Stage planetary gearing with 198:1 ratio
• Sealed solenoid with circuit breaker

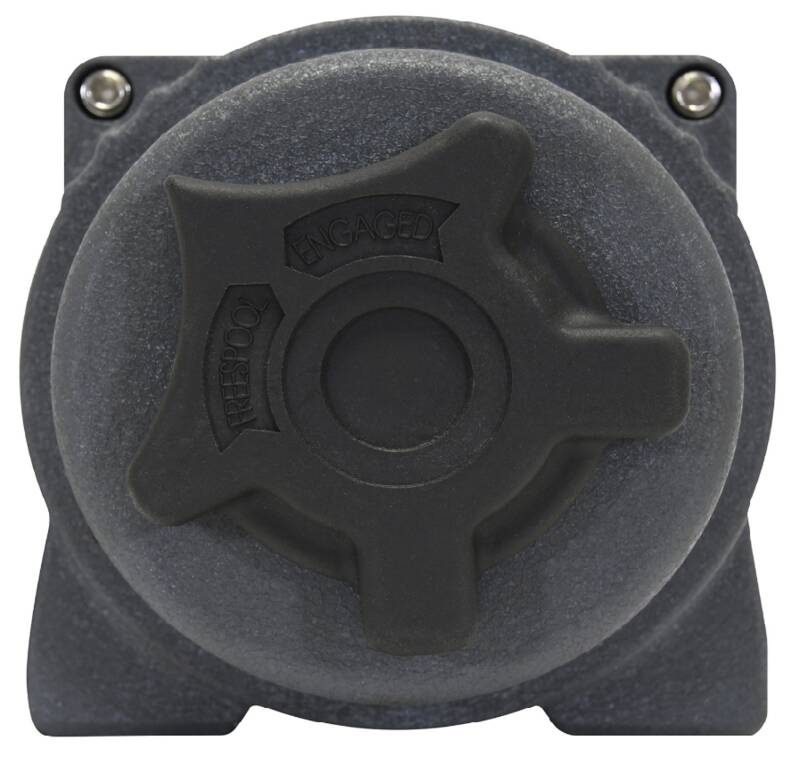

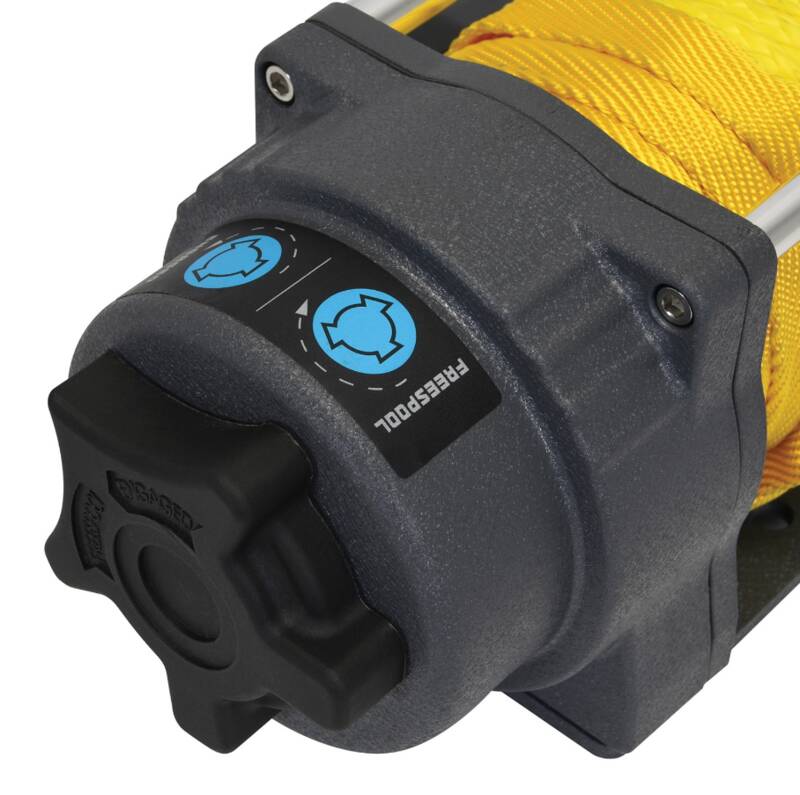

• Easy to engage ergonomic freespool control knob

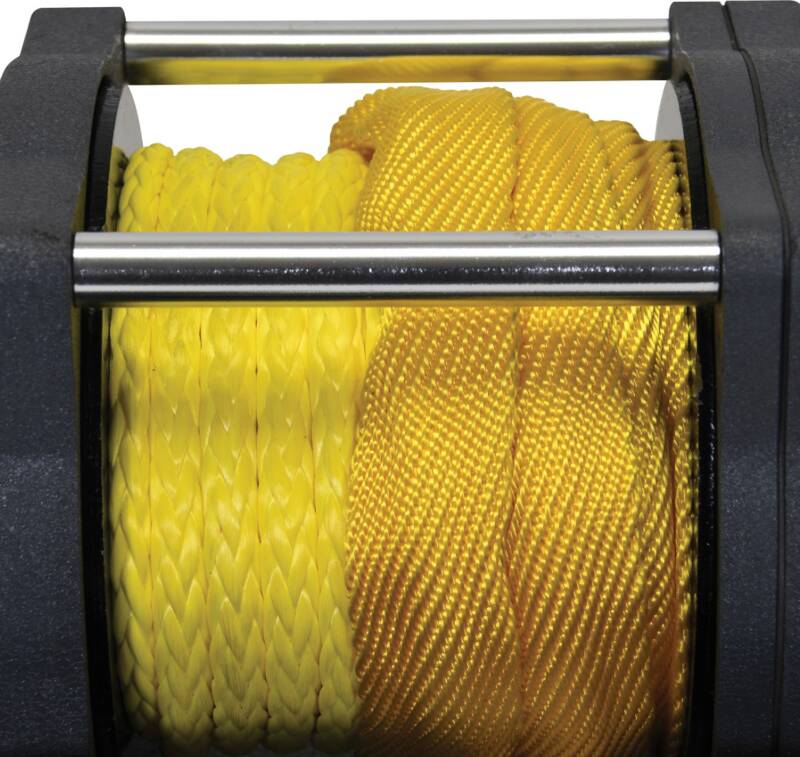

• Synthetic rope measures 3/16in. x 32ft.
• Heavy-duty, clevis pinned, latched hook
• Black aluminum hawse fairlead

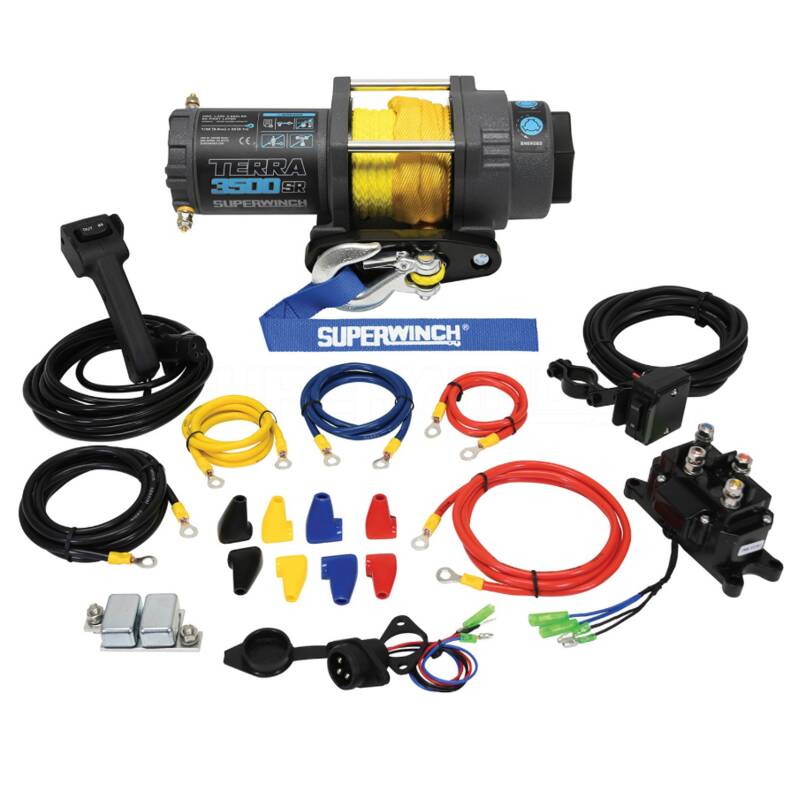

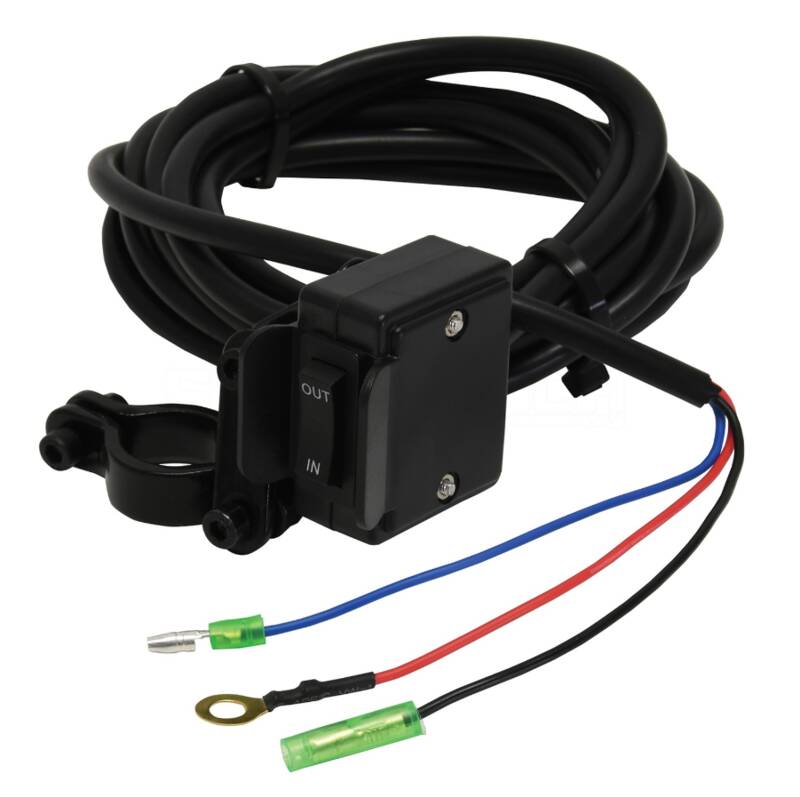

• 10ft. rugged handheld remote control with handlebar mounted rocker switch
• Narrow drum allows easier mounting in tight spaces

Specs:

• Brake: Automatic, 100% Load Holding
• Clutch: Free-Spooling, Ergonomic Control
• Fairlead: Black Powdercoated Aluminum Hawse
• Gear Ratio: 198:1
• Gearing: 3-Stage Planetary
• Hook: Heavy-Duty, Clevis Pinned Latched

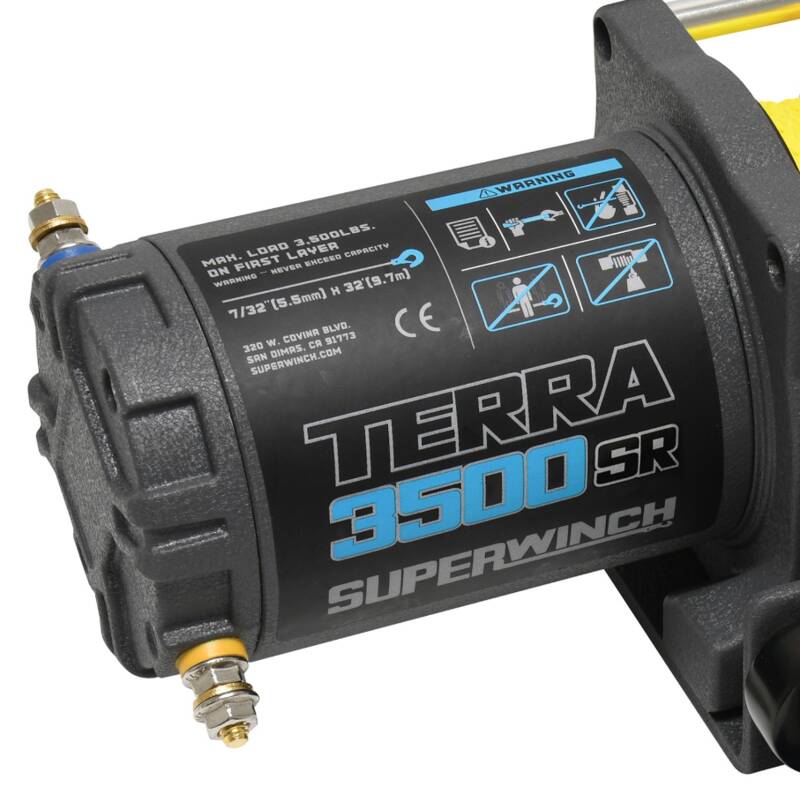

• Motor: Sealed 1.6 HP Permanent Magnet
• Mounting Bolt Pattern: 3.0in x 4.87in (76mm x 124mm)
• Rated Line Pull: 3,500 lbs (1587.6 kg)
• Remote: Sealed Hand-Held with 10ft cord
• Rope: Synthetic 3/16in x 40ft
• Solenoid: Sealed Solenoid, Circuit Breaker Protected
• Warranty: Limited Lifetime Mechanical, 3 Year Limited Electrical

•
