Superwinch Terra 4500 12V Wire Rope Winch • 1145260

The Superwinch Terra 4500 is the standout performer in powersports ATV/UTV winching. It’s not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable steel cable. Terra 4500 winches are the industry’s first truly sealed utility terrain vehicle winch assembly. All seals on the entire winch from the outmost end of the motor to the ergonomic free spool control knob all meet the IP67 rating. The 10’ handheld remote and the solenoid are sealed at this same tough standard which ensures to keep out water, mud, snow and dust.

• Rated line pull of 4,500 lbs
• 1.8 HP permanent magnetic motor
• 3-Stage planetary gearing with 198:1 ratio
• Sealed solenoid with circuit breaker

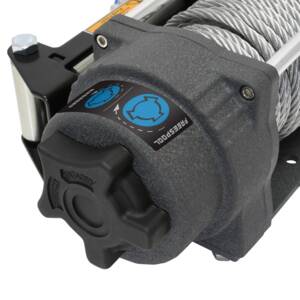

• Cam-style clutch control knob
• Wire rope measures 15/64in. x 50ft.
• Heavy-duty, clevis pinned, latched hook
• 4-way roller fairlead

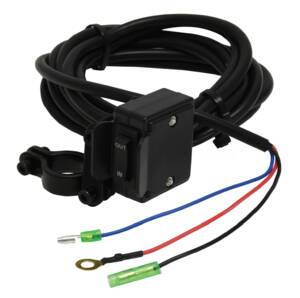

• 10ft. rugged handheld remote control with handlebar mounted rocker switch
• Wide drum adds rope capacity

• Clutch: Free-Spooling, Ergonomic Control
• Fairlead: Heavy Duty 4-Way Roller
• Gear Ratio: 198:1
• Gearing: 3-Stage Planetary
• Hook: Heavy-Duty, Clevis Pinned Latched
• Motor: Sealed 1.8 HP Permanent Magnet
• Mounting Bolt Pattern: 3.0in x 4.87in (76mm x 124mm)
• Rated Line Pull: 4,500 lbs (2041.2 kg)
• Remote: Sealed Hand-Held with 10ft cord
• Rope: Steel Wire 15/64in x 50ft
• Solenoid: Sealed Solenoid, Circuit Breaker Protected
• Warranty: Limited Lifetime Mechanical, 3 Year Limited Electrical
