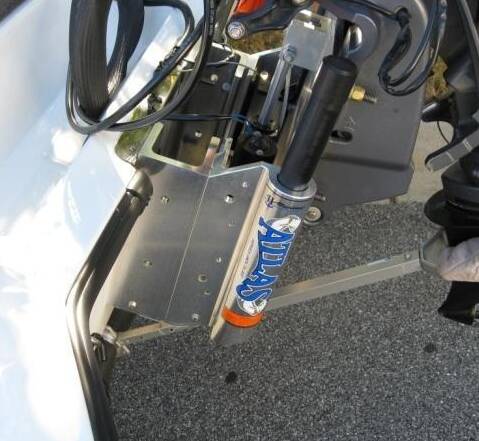

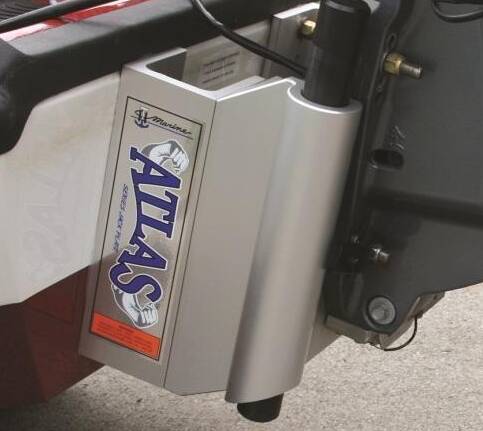

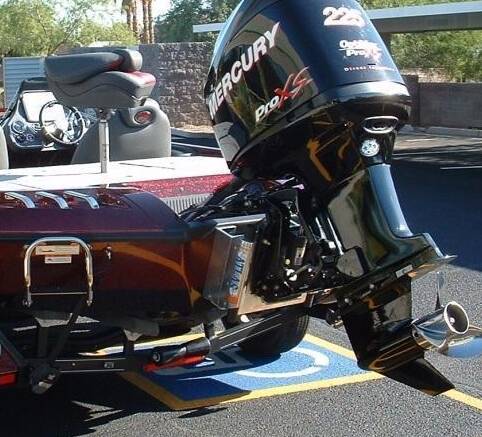

T-H Marine Atlas 4" Setback Hydraulic Jack Plate - Polished • AHJ-4V-DP

The Atlas revolutionary design meets the demands of today's high performance outboards. The one piece design, featuring the innovative Rod and Slot lifting system, will handle the stresses from the heaviest and most powerful outboards, up to 300 Horse Power on the market today. All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. The all new hydraulic unit is fast too. Lifting from bottom to top in 8 seconds.

• Bottom to Top in Less than 8 Seconds Rod and Slot Lifting Design
• Trouble Free Lifting Action Hi-Tech Engineered Polymer Rods
• 6 Times More Abrasion Resistant than Steel Rods Made from Self Lubricating Material, no grease required
• Easy Two-Pin Pump Removal
• Quick Maintenance Installs in Half the Time of Comparable Jack Plates
• 300hp Max "HD" - HEAVY DUTY version is rated for engines up to 400hp
• All ATLAS plates are predrilled for Power-Pole® and Minn-Kota Talon bracket mounting Stroke Length
• 5 Inches Height Adjustment Up to 7 Inches
• Comes with relay harness and rocker switch
• Contact your boat manufacturer or local dealer for setback recommendation for your particular boat and also the affects adding a jack plate can have on your boat
• Mounting bolts are not included
• Rated for engines up to 300hp or up to 625 pounds dry weight
• Transom side of the atlas is 16 3/8" wide x 12 1/2" tall

• Max Weight: 625 lbs
• Max Horsepower: 300 hp
• Max Horsepower (Heavy-Duty Version): 400 hp
• Width: 16 3/8"
• Height: 12 1/2"
