Wagan 100W Folding Solar Panel • 8213

Wagan
Product Details

  • This panel works beautifully with our Lithium Cube 500 and Lithium Cube 1200 portable power supplies. This will take your PPS from a standalone unit to a true Solar Generator!

  • The output cable of the solar panel features an Anderson Powerpole Connector. Anderson connectors are a universal design and are able to be used on any device with matching connectors or with an adapter (not included).

  • Our Solar panel is a plug-and-play type of panel; simply plug in to your device, unfold, and you're ready to go.

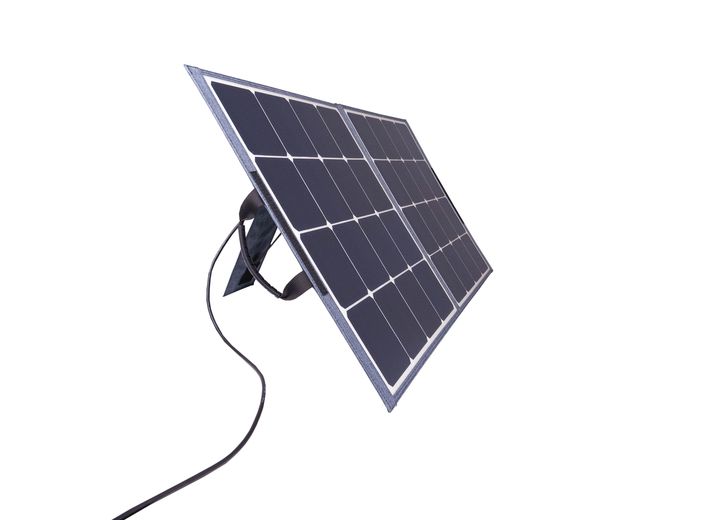

  • Our 100W solar panel is a high-quality semi-rigid panel that is flexible and able to withstand real-world use. Our panels are not those heavy, glass covered units that are easily damaged!

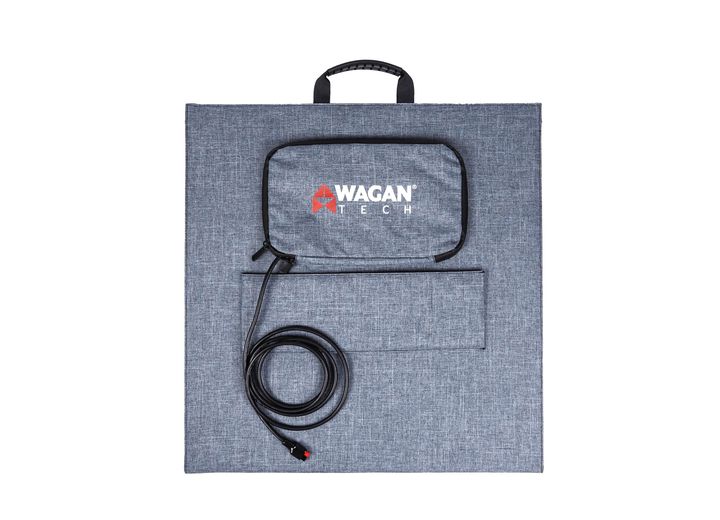

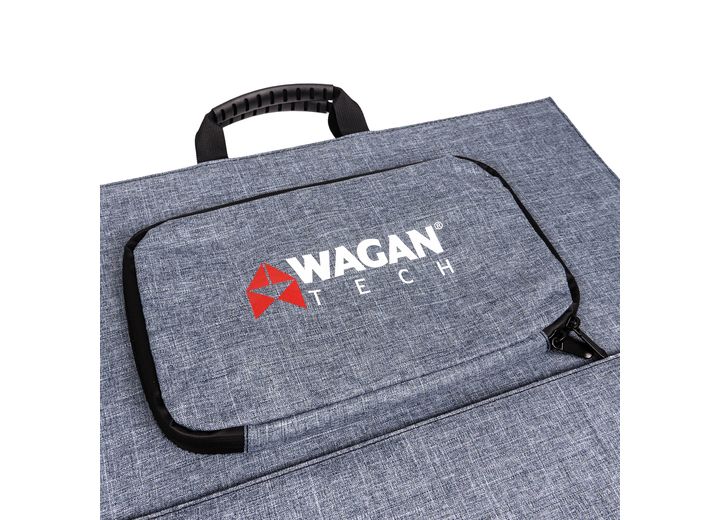

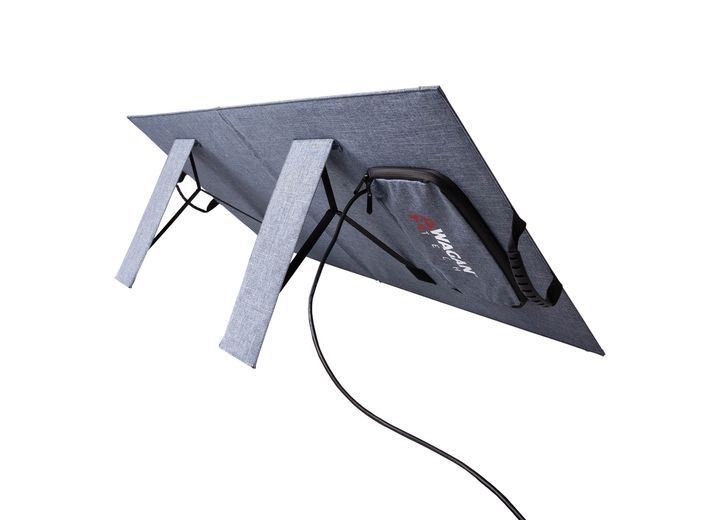

  • The whole unit folds in half for portability, has deployable legs to keep panel at optimal angle towards the sun, has a soft carrying handle, and has a small zippered storage case for cables, tools, and adapters (not included).

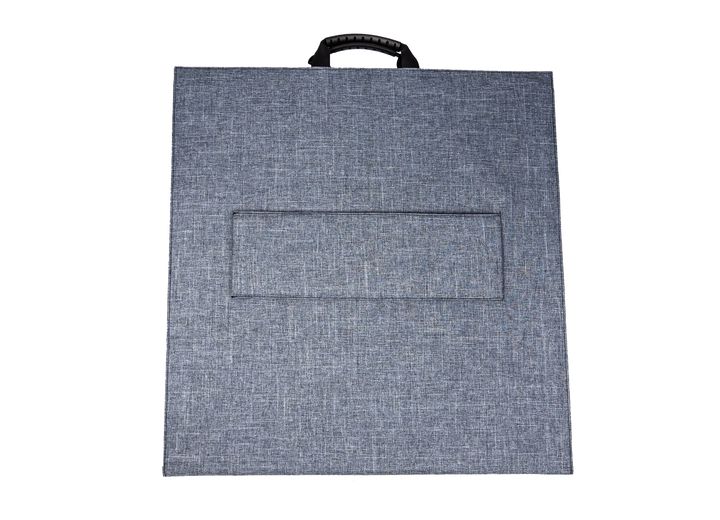

  • The panel is permanently attached to a rugged nylon case that folds up neatly and is secured with a hook & loop closure.

Fits:

  • Solar eCase Generator (#8822)
  • Lithium Cube 500 (#8834)
  • Lithium Cube 1200 (#8836)
  • Any Anderson Powerpole (or equivalent) equipped device
Specs:

  • Power Cable Length: 6.3 feet
  • Panel Open Dimensions: 21.8 x 44.8 x 1.5 in
  • Panel Closed Dimensions: 21.8 x 22.3 x 1.5 in
  • Panel Composition: Sunpower PET
  • Panel Voltage: 17.6V
  • Panel Efficiency: 23%
  • Max Wattage: 100 Watts
  • Panel Weight: 7.5 lbs.
  • Power Tolerance Range: ±3%
  • Open Circuit Voltage / Voc: 22.0V
  • Max Power Voltage / Vmp: 17.6V
  • Short Circuit Current / Isc: 6.3A
  • Max Power Current / Imp: 5.7A
  • Maximum System Voltage: 600V DC
  • Warranty: 2 years


$358.99
Out of Stock
