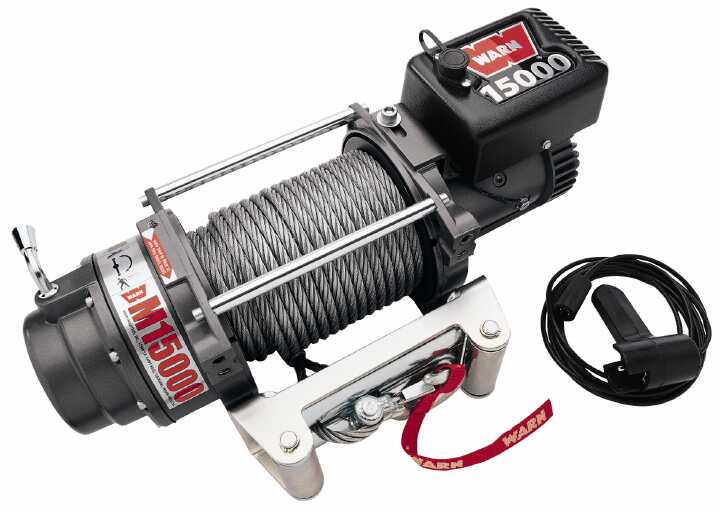

Warn M15 12V Heavyweight Winch • 47801




Product Details
When you work hard enough to need a really big truck, you'll want a Winch with enough capacity to get the job done. The Warn Winch boasts high strength carrier plates to handle the gear train stresses of a 15,000 Pounds Load. The gear ratio is 315:1, with 90 Foot of 7/16 Inch wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access
- Most Powerful Winches On The Market
- Pulling Capacity Up To 16,500 Pounds
- High Strength Carrier Plates To Handle The Heavy Gear Train Stresses
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specifications
TYPE: Electric
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Vehicle Recovery
VOLTAGE: 12 Volt
MOTOR HORSEPOWER: 4.6 Horsepower
ELECTRICAL CONTROL TYPE: Contactors
MOTOR TYPE: Series Wound
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 315:1
FREE SPOOLING: Yes
BRAKE TYPE: Mechanical Cone
LINE DIAMETER (IN): 7/16 Inch
LINE LENGTH (FT): 90 Feet
LINE MATERIAL: Steel
FAIRLEAD TYPE: Roller
REMOTE TYPE: Handheld Remote Switch
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 10 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Gray
MAX LINE PULL/ LINE SPEED: 15000 Pound/ 2.48 Feet Per Minute
MAX AMP DRAW/ LINE PULL: 460 Amp Draw/ 15000 Pound
