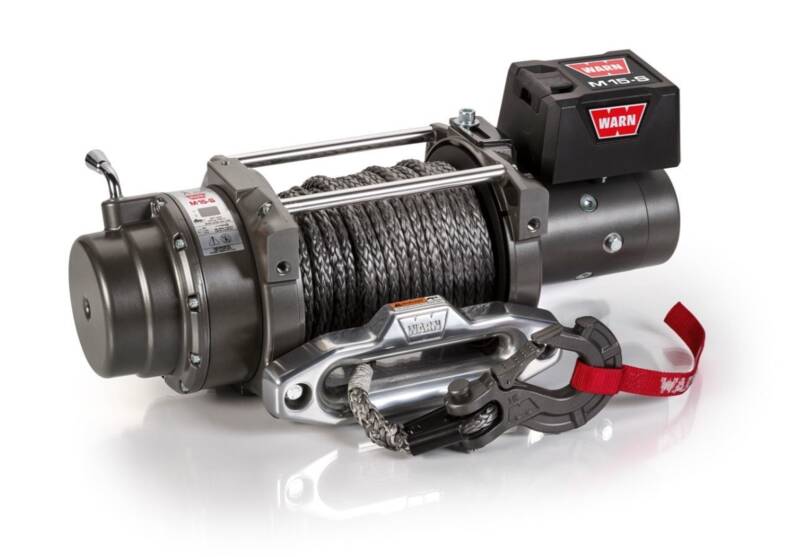

Warn M15-S Heavyweight 12V Electric Winch with 80' of Spydura Pro Synthetic Rope • 97730

The WARN M15-S is a heavy-duty winch with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. And with a hefty 15,000 lb. pulling capacity, this winch is built for performing the long, heavy pulls.

• 15,000 lb. capacity
• Includes 80' of 3/8" Spydura Pro synthetic rope
• Includes 18,000 lb capacity EPIC hook
• Large-frame winch architecture mounts feet forward
• Contactor control for the ultimate in reliable electronics
• Powerful, efficient series-wound motor
• Durable, smooth three-stage planetary gear train
• Best-in-class cone brake
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

• TYPE: Electric
• MOUNT TYPE: Vehicle Mounted
• RECOMMENDED USE: Vehicle Recovery
• VOLTAGE: 12 Volt
• ELECTRICAL CONTROL TYPE: Contactors
• MOTOR TYPE: Series Wound
• DRIVE GEAR TYPE: Planetary
• GEAR REDUCTION RATIO: 315:1
• FREE SPOOLING: Yes
• BRAKE TYPE: Automatic Mechanical Cone
• LINE DIAMETER (IN): 3/8 Inch
• LINE LENGTH (FT): 80 Feet
• LINE MATERIAL: Synthetic
• FAIRLEAD TYPE: Hawse
• REMOTE TYPE: Wired

• MOUNTING HOLE QUANTITY: 4
• OPERATION TYPE: Automatic

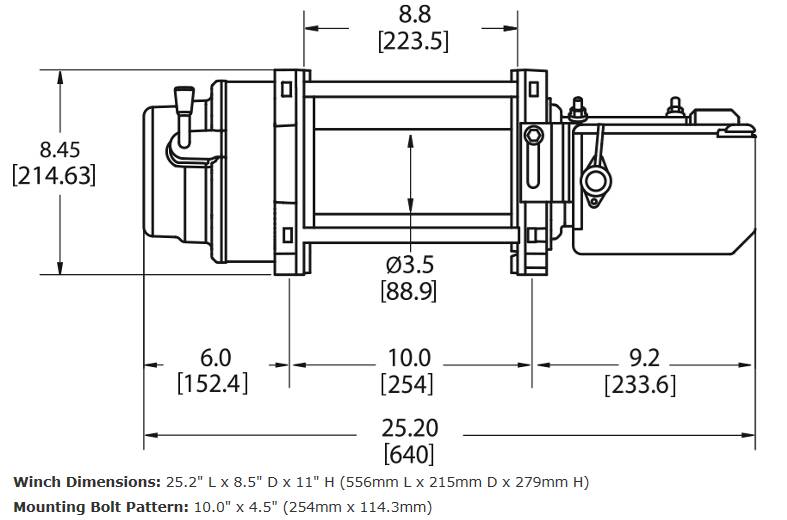

• MOUNTING PATTERN LENGTH (IN): 10 Inch
• MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
• INCLUDES MOUNTING HARDWARE: Yes
• MAX LINE PULL/ LINE SPEED: 15000 Pound/ 2.48 Feet Per Minute

• MAX AMP DRAW/ LINE PULL: 460 Amp Draw/ 15000 Pound
