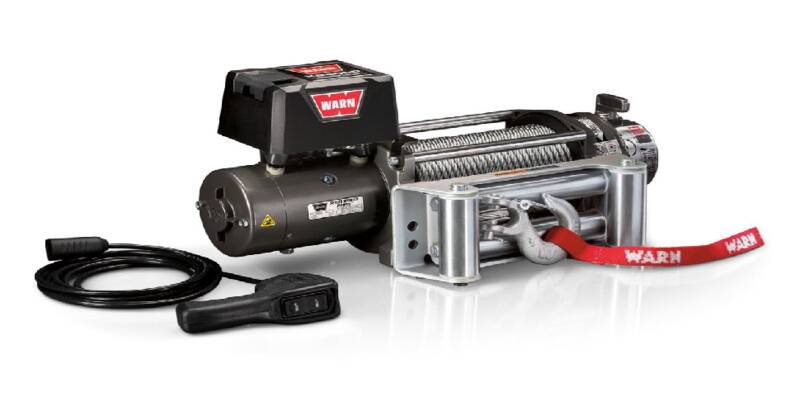

Warn XD9 Winch, 9,000 lb w/ Wire Rope • 28500

A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope. Backed by the Warn Limited Lifetime Warranty.

• Low-profile design and separate control box allows for a wide range of mounting options
• Exclusive brake design provides superior control while winching
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Chip-resistant, powder-coated finish
• Remote control with 12' (3.7m) lead.
• Durable 5/16" (8mm) diameter galvanized steel wire rope.
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specs:

• TYPE: Electric
• MOUNT TYPE: Vehicle Mounted
• RECOMMENDED USE: Vehicle Recovery
• VOLTAGE: 12 Volt
• MOTOR HORSEPOWER: 4.6 Horsepower
• ELECTRICAL CONTROL TYPE: Contactors
• MOTOR TYPE: Series Wound
• DRIVE GEAR TYPE: Planetary

• GEAR REDUCTION RATIO: 156:1
• FREE SPOOLING: Yes
• BRAKE TYPE: Mechanical Cone
• LINE DIAMETER (IN): 5/16 Inch
• LINE LENGTH (FT): 100 Feet
• LINE MATERIAL: Steel
• FAIRLEAD TYPE: Roller
• REMOTE TYPE: Handheld Remote Switch
• MOUNTING HOLE QUANTITY: 4
• OPERATION TYPE: Automatic
• MOUNTING PATTERN LENGTH (IN): 10 Inch
• MOUNTING PATTERN WIDTH (IN:) 4-1/2 Inch
• COLOR: Gray
• MAX LINE PULL/ LINE SPEED: 9000 Pound/ 3.9 Feet Per Minute
• MAX AMP DRAW/ LINE PULL: 478 Amp Draw/ 9000 Pound
