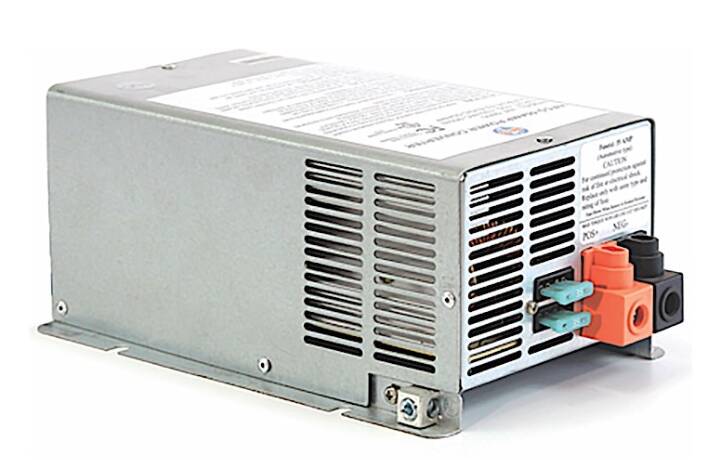

WFCO 55 Amp Deck Mount Converter Charger 120 AC to 12 DC • WF-9855

The WF-9855 Deck Mount Converter Charger are versatile, advanced power source solution. The WF-9855 Deck Mount Converter Charger provides 55 amps of clean, reliable dc power, ideal for powering electronics and appliances. The WF-9855 Deck Mount Converter Charger delivers pure energy, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed.  WF-9855 Deck Mount Converter Charger is designed not to cause interference with televisions, radios, or other signals. It complies with FCC Class B. Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2 V dc range “float” mode, 13.6 V dc range “absorption” mode, and a 14.4 V dc range “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.

• Input Voltage/Hz: 105-130 VAC, 60 Hz
• Output Current: 55A

• Converter Type: Three-Stage Converter Charger

• Voltage Output: 13.2 – 14.4V DC Range

• Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage)

• Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage)

• Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage)

• Over Current: Yes

• Over Temperature: Yes

• Over Voltage: Yes

• Reverse Polarity: Yes

• Short Circuit: Yes

• Cooling System: Yes

• Dimensions: 5.9˝ wide; 3.9˝ high; 8.6˝ deep

• Weight: 5.50 lbs.

• Certifications: FCC

• Output Power: 55 amps DC output


• Limited 2 Year Warranty
