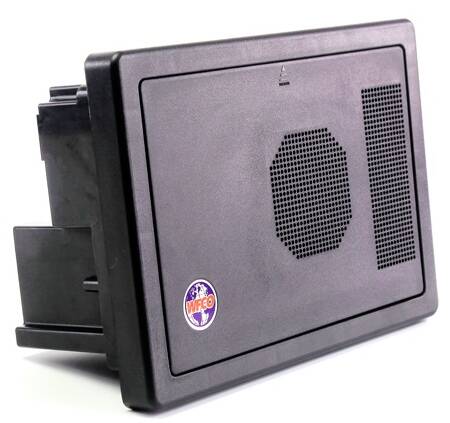

WFCO Power Center with Auto-Detect – 35 Amps DC • WF-8735-AD

WFCO’s proven WF-8735-AD Power Center offers an industry-first, Auto-Detect technology. This new microprocessor-driven technology will recognize lithium-ion and lead-acid battery chemistries and automatically adjust the charging profile to match the battery type. No more buttons. No more switches. An accurately charged battery gives RV owners peace of mind. Eliminating the risk of over and under-charging the WF-8735-AD Power Center will maximize your battery life with multi-stage charging and current monitoring in both lead-acid and lithium-ion profiles.

• Case Color: Black

• Charging Modes: Lead Acid – 3-Stage Intelligent Charge (VRLA/AGM), Lithium – 2-Stage Intelligent Charge, 3-Stage Intelligent Charge (VRLA/AGM)


• Output Power: 600 W


• Input Voltage/Hz: 105-130 VAC, 60 Hz


• Dimensions: 10 3/8″ x 6 7/8″ x 4 5/16″


• Weight: 5.5 lbs.


• Output Current: 35 A


• Converter Type: Three-Stage Converter Charger


• Voltage Output: 13.2 – 14.4V DC Range


• Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage)


• Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage)


• Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage)


• AC Circuits (twin breakers): 6 (Main and 5 branch circuits)


• DC Circuits (Quantity): 6 (one battery circuit)


• Case Material: Plastic


• Over Current: Yes


• Over Temperature: Yes


• Over Voltage: Yes


• Reverse Polarity: Yes


• Cooling System: Yes


• Certifications: FCC


• 2 Year Limited Warranty
