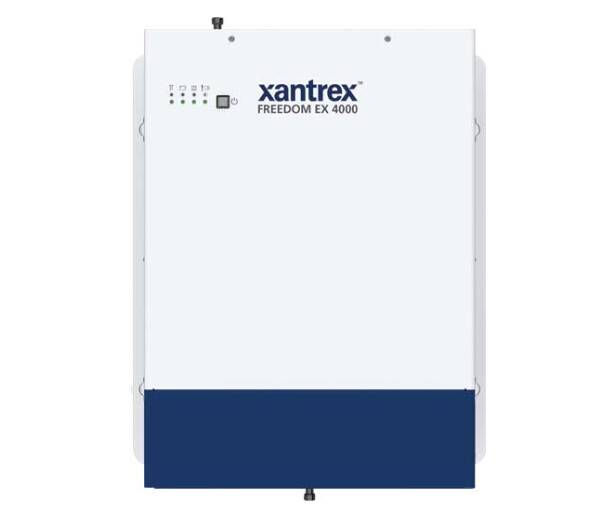

Xantrex Freedom EX 4000 Inverter/Converter/Charger, 4000W, 80A, 120VAC/48VDC • 820-4080-41

The new FREEDOM EX is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, 80A 48VDC battery charger, 50A transfer relay and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX features the most widely used communication protocol – RV-C (RV), enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.

---

• Voltage Converter; 48 Volt DC To 12 Volt DC Output, Simplifies Installation, Fewer Components, Fewer Cables, Reduced Installation Time
• Power Factor Correction, Temperature Compensation, Power Share, Battery Equalization And The Ability To Configure Charging Profile And Stages And Set Charge Output To Desired Amps
• Built-In 50 Ampere Transfer Relay
• Extended Surge Rating Surges To 2X Continuous Power For 5 Seconds Or More For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
• Ignition Control Feature To Turn Inverter On And Off Via A 12 Volt DC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
• Stacking Support Stack Up To Six Units
• Highly Configurable Charger Specifically Designed For Lithium Ion Batteries
• Limited 3 Year Warranty

---

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 4000 Watt
• Peak Output Power (W): 8000 Watt
• Ampere Rating: 33 Amp
• Length (IN): 17.1 Inch
• Width (IN): 14 Inch
• Height (IN): 8.1 Inch
• Remote On/Off Capable: Yes
• With USB Port: Yes
• With Thermal Protection: Yes
• With Built-In Charger: Yes
