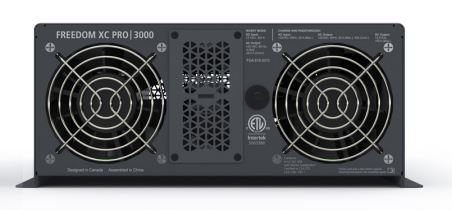

Xantrex Freedom XC Pro 150 A 12 V DC Input/100 V AC Output 3000 W Inverter/Charger • 818-3010

The Freedom XC inverter or charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4 Degree Fahrenheit to 104 Degree Fahrenheit for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN or OUT make installation a breeze.

• Extended Surge Rating: Surges To 2X Continuous Power For 2 Seconds For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
• Ignition Control To Turn Inverter On Or Off Via A 12 Volt DC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
• Wide 10 To 18 Volt DC Input Rang Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
• Programmable AC Under-Voltage (85 To 110 Volt AC) Shutdown Is Ideal To Operate Under Weak Shore Power Or Generator Input
• Built-In 30 Ampere AC Transfer Relay Senses When Outside AC Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power
• View AC And Battery Current, Percent Status Bar For Inverter Output On The Onboard Display
• Hardwire Or Plug Directly Into The Optional 20 Ampere GFCI Receptacle

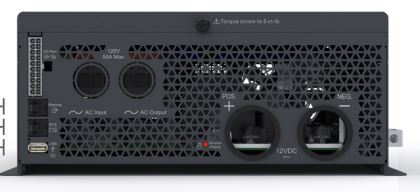

• Easy Access AC And DC Wiring Compartment For Quick Installation
• AC Output Operating Voltage Options: 120, 110, 108 V AC
• Continuous Output Power: Continuous Power 3000 W @40ºC True sine wave(TSW)
• Continuous AC Output Current: 25 A
• Surge Power: 6000 W (≤ 5 sec)
• Frequency (Configurable): 60 (or 50) Hz
• Peak Efficiency: 91%
• Full Load Efficiency: ≥ 84%
• Operating Input AC Pass-Through Voltage Range: 85-140 V AC
• Safe Non-Operating Input AC Voltage Range: Up to 240 V AC RMS
• Power Factor at Full Charge Rate: 98%)
• Min Battery Voltage for Charging 0.0 V DC
• Max DC Output Voltage 18.0 V DC (custom battery type)
• Selectable DC Output Current User Selectable: 5 - 150 A
• Full Load Max AC Input Current 25 A
• Max DC Charge Current 150 A
• Operating Temperature Range: 4 to 140 ºF (-20 to 60 ºC), with output derated above 104 ºF (40 °C)
• Storage Temperature Range:-40 to 158 ºF (-40 to 70 ºC)
• Operating Humidity Range: 5 to 95% RH, non-condensing
• Transfer Relay AC Current Rating: 50 A surge, 40 A continous
• DC Input Operating voltage range: 10.1 - 18.0 V DC
• DC Input Max Non-Operating Voltage: 5.2 V DC
• DC Input/Output Nominal Voltage (inverting/ Charging):12.0 V DC
• DC Nominal Current at Full Load: 304 A DC
• L x W x H (without flanges): 15.4”(390 mm) x 10.8”(275 mm) x 4.9”(125 mm)
• L x W x H (with flanges): 16.0”(406 mm) x 12.0”(305 mm) x 4.9”(125 mm)
• Net Weight: 18.6 lbs (8.4 kgs)
• Limited 2 Year Warranty
