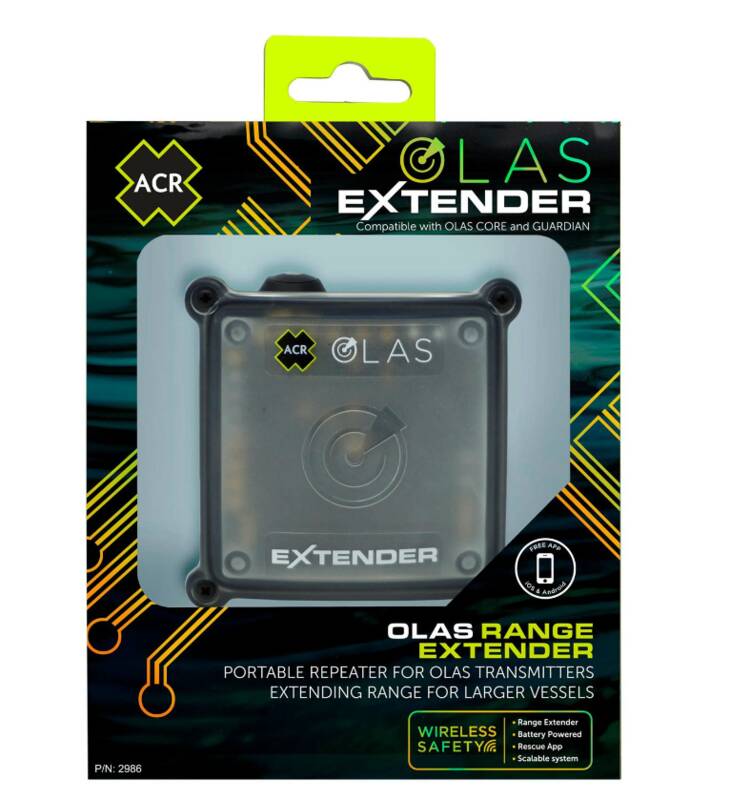

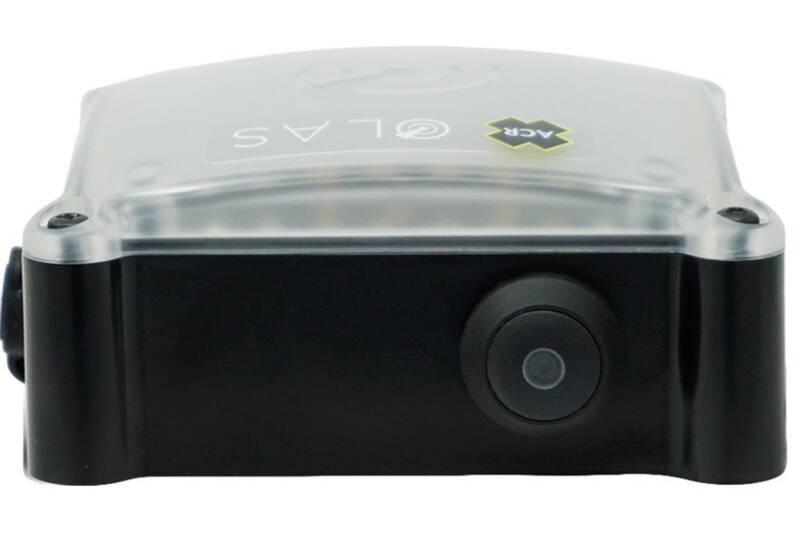

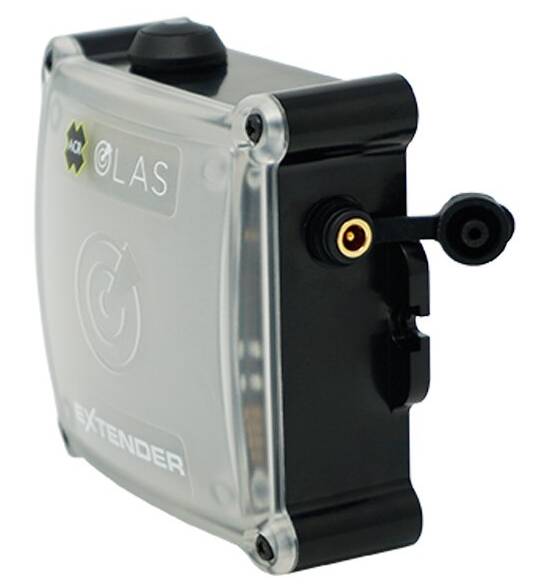

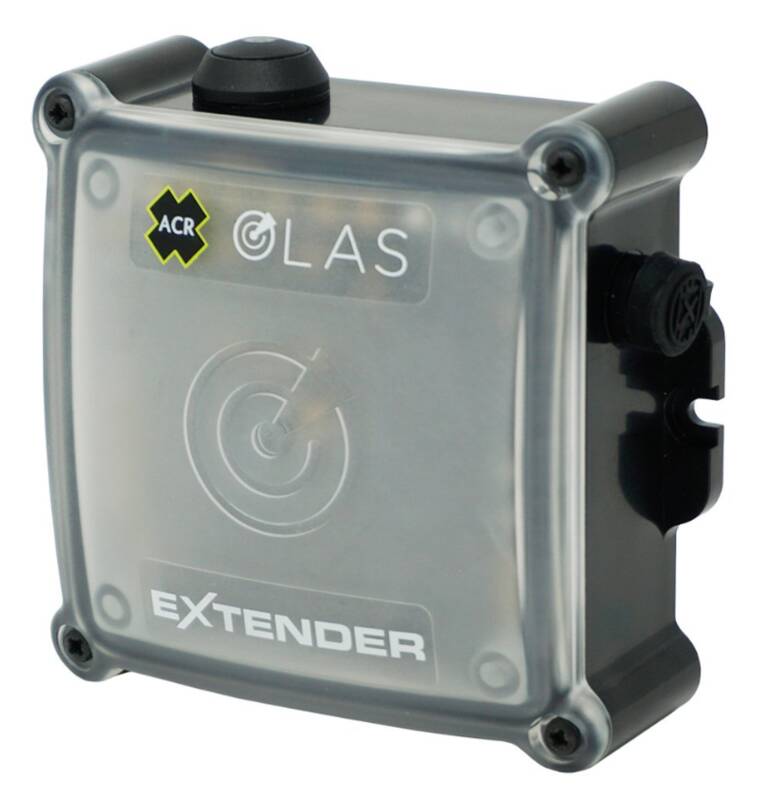

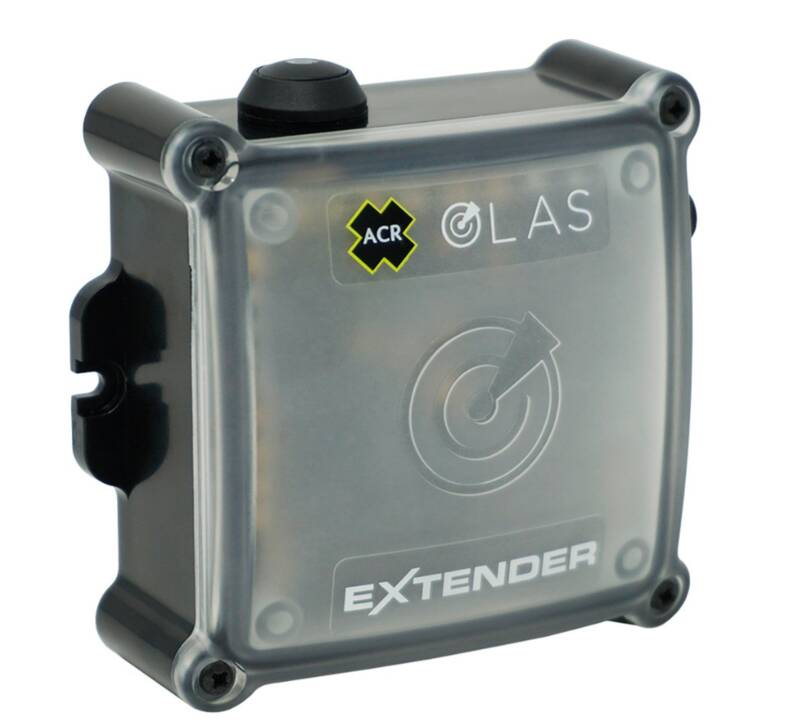

ACR OLAS Extender for CORE & GUARDIAN • 2986

The ACR OLAS EXTENDER is a small, portable, wireless range extender that provides the flexibility of scaling your OLAS GUARDIAN Engine Kill Switch and OLAS CORE MOB Alarm Systems for use on larger vessels. While the OLAS Tag and OLAS Float-On transmitters and the OLAS CORE, OLAS GUARDIAN, and OLAS Mobile App receivers allow for coverage on vessels between 40 ft. and 50 ft., the OLAS EXTENDER allows for coverage on vessels up to 80 ft when used with the OLAS GUARDIAN or OLAS CORE. The OLAS EXTENDER effectively increases the length of the "virtual tether" which exists between the OLAS transmitters (OLAS Tag and OLAS Float-On) and the OLAS Receiver (OLAS CORE, OLAS GUARDIAN). Users on vessels up to 80 ft. in length can therefore now enjoy the comfort in knowing that within 2 to 4seconds (depending on which OLAS receiver is in use) of a transmitter going missing, all synced receivers (excluding the EXTENDER which is solely used for extending the range of coverage of your OLAS system) will sound a loud audible alarm to alert crew of an MOB incident. In conjunction with the audible alarm(s), the ACR OLAS Mobile App records the latitude and longitude of the incident using the phone or tablets GPS, then aids the crew with the MOB recovery, clearly directing them to the GPS location where the MOB occurred with clear visual signals and bearing data. The EXTENDER can also be used with OLAS receivers and transmitters to cover areas where transmitter signals may be blocked, thereby providing a greater number of applications of the OLAS MOB System. With the increased range of coverage on larger vessels, the EXTENDER significantly expands the number of potential usage scenarios for the ACR OLAS MOB System, making it applicable to an even greater segment of recreational and commercial vessels.

---

• Operation: Switch OLAS GUARDIAN or CORE into paring mode and switch OLAS EXTENDER on by pressing the button once
• Track up to 15 different OLAS transmitters with 1 phone/tablet via the OLAS GUARDIAN or CORE
• The ALARM sounds within 2-4 seconds of a Man Overboard situation. The system records the MOB location using your phone/tablets GPS and directs the boat back to the last known location for a quick and easy recovery
• Compatible with the ACR OLAS Guardian, Extender, Mobile App, Float-On, and Tag
• Mobile App: IOS and Android (Free Download)
• Connect multiple OLAS transmitters to 1 phone or tablet
• Connect 1 OLAS transmitter to multiple phones / tablets
• Solo Mode (Text Message Alerts to Emergency Contacts with GPS coordinates)
• Download the ACR OLAS App on the App store or get it on Google Play: Search 'ACR OLAS'
• Range: For use with vessels up to 80 feet (OLAS GUARDIAN or CORE required)
• Extend range of the ACR OLAS MOB System up to 80 ft. vessels
• Waterproof (IP67)
• Utilizes the latest Bluetooth® Technology
• Rechargeable battery option
• Requires OLAS GUARDIAN or OLAS CORE
• Warranty 2 Years

---

• Size: 3.6" (H) x 3.5: (L) x 1.5" (W)/92 (H) x 90 (L) x 38 (W) mm
• Weight: 4.06 Ounces (115 g)
• Power: / Current 5V / 13-17 mA
• Color: Black and Clear
• Buoyant: No
• Waterproof: Yes (IP67)
• Housing Material : ABS
• Fuse: Not Applicable
• Bluetooth®: 4.2 + 5.0
• Applications Recreational and Commercial Boating

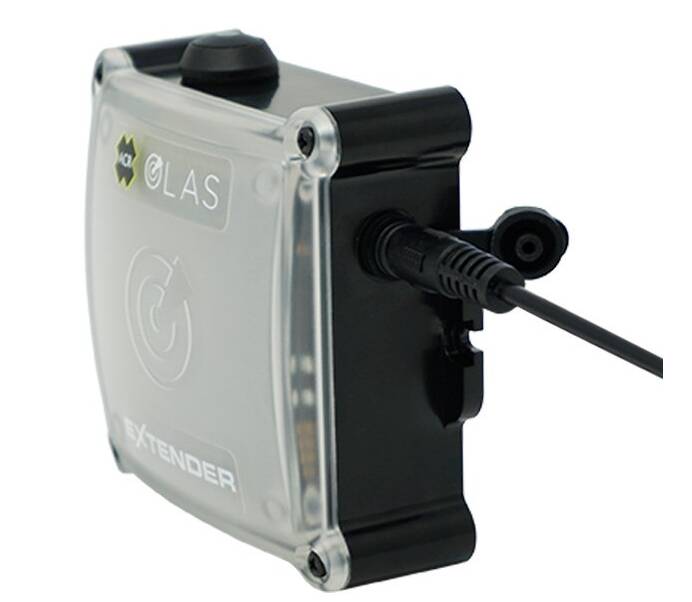

• Accessories (included): USB Charging Cable
• Approvals: FCC, RED, CE, RoHS 2.0
