Factor 55 Blue FlatLink - Up To 16,500 Lbs • 00050-02

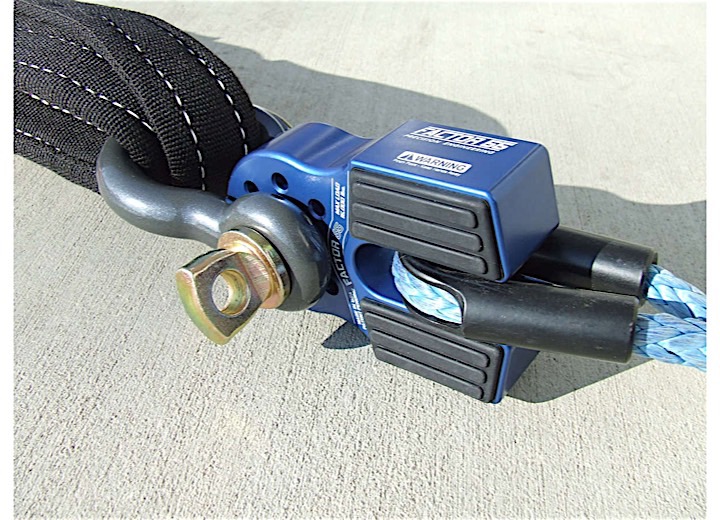

Eliminate the conventional winch hook and replace it with a safer and stronger FlatLink shackle thimble and D-ring. The FlatLink shackle mount is the Industry’s first folding shackle mount for recovery winches. With less than 1.75 Inch of thickness, the Flatlink will work with all roller fairlead license plate mounting brackets. Conventional winch hooks can cut and fray recovery straps and often allow strap ends to escape during momentary slack cycles of a typical winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink does not require splicing and is compatible with steel cables or synthetic ropes up to 3/8 Inch in diameter. The cable eye is retained in the FlatLink by a 5/8 Inch diameter grade 5 steel double shear pin and internal snap ring. It is installed easily in Minutes. The EPDM Rubber Guards protect alloy fairleads and are securely attached to the FlatLink with 4 barbed tips.
Precision Machined From 6000 Series Aluminum
Compatible With All Roller Fairlead License Plate Mounting Brackets
When Folded Flat – Less Than 1.75 Inch Of Thickness
Fits Steel Cables And Synthetic Winch Ropes To 3/8 Inch Diameters
EPDM Rubber Guard Protects Alloy Fairleads And Cushions Line Stowage
Simple Snap Ring Removal For Shear Pin
Eliminates Hook Rattle And Fairlead Damage
Limited 1 Year Warranty
- SHACKLE TYPE: 3/4 Inch Clevis Hook
- CABLE TYPE: 3/8 Inch Steel Cable
- LOAD CAPACITY (LB): 16000 Pounds
- SHEAR PIN SIZE (IN): 5/8 Inch
- FINISH: Anodized
- COLOR: Blue
- MATERIAL: Billet Aluminum
- WITH GUARD: Yes
