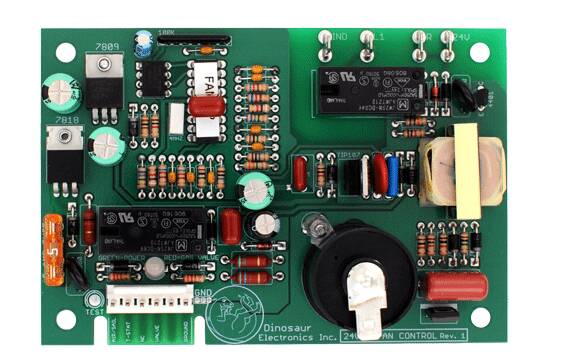

Dinosaur Electronics Universal Ignitor Board for 24 VAC Park Model Furnaces with Fan Control • UIB 24 VAC

24 VAC operation

For park model furnaces

3 try operation

Shuts the fan motor OFF a minute and a half after the 3rd ignition try fails to sense a flame.

Waits one hour and tries the cycle again before locking out requiring the thermostat to be reset.

A Bi-Color LED comes on "Green" after power appears on the "AIR" terminal. The LED turns "Red" when power is applied to the valve terminal

3 Year Limited Warranty
